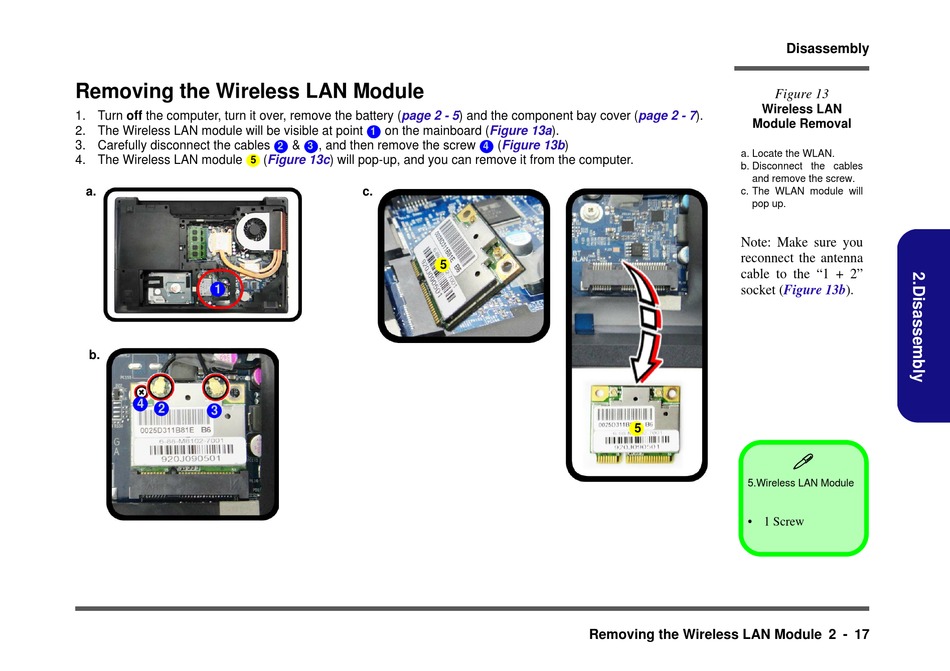

Removing the Wireless LAN Module

1. Turn off the computer, turn it over, remove the battery
2. The Wireless LAN module will be visible at point
3. Carefully disconnect the cables
4. The Wireless LAN module
5
a.
1
b.
4
2
3
(page 2 -
on the mainboard
1
& , and then remove the screw
2 3
(Figure 13c) will pop-up, and you can remove it from the computer.
c.
5
5) and the component bay cover
(Figure 13a).
(Figure 13b)
4
Removing the Wireless LAN Module 2 - 17
Disassembly
Figure 13
Wireless LAN
(page 2 - 7).
Module Removal
a. Locate the WLAN.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
Note: Make sure you
reconnect the antenna
cable to the "1 + 2"
socket (Figure
5

5.Wireless LAN Module
• 1 Screw
13b).
