Removing the M.2 SSD Module

1. Turn off the computer, remove the battery
2. The M.2 SSD module will be visible at point
3. Remove the screw (Figure
2
4. The M.2 SSD module (Figure
3
5. Reverse the process to install a new SSD (make sure that the hexagonal screw is in the correct location). Note that
a flat-head screw driver can be used to tighten or remove the hexagonal screw as shown
a.
1
b.
(page 2 - 5), and bottom case
on the mainboard
1
9b)
9c) will pop-up, and you can remove it from the computer.
c.
3
2
(page 2 - 6).
(Figure 9a).
(Figure 9d).
3
Removing the M.2 SSD Module 2 - 13
Disassembly

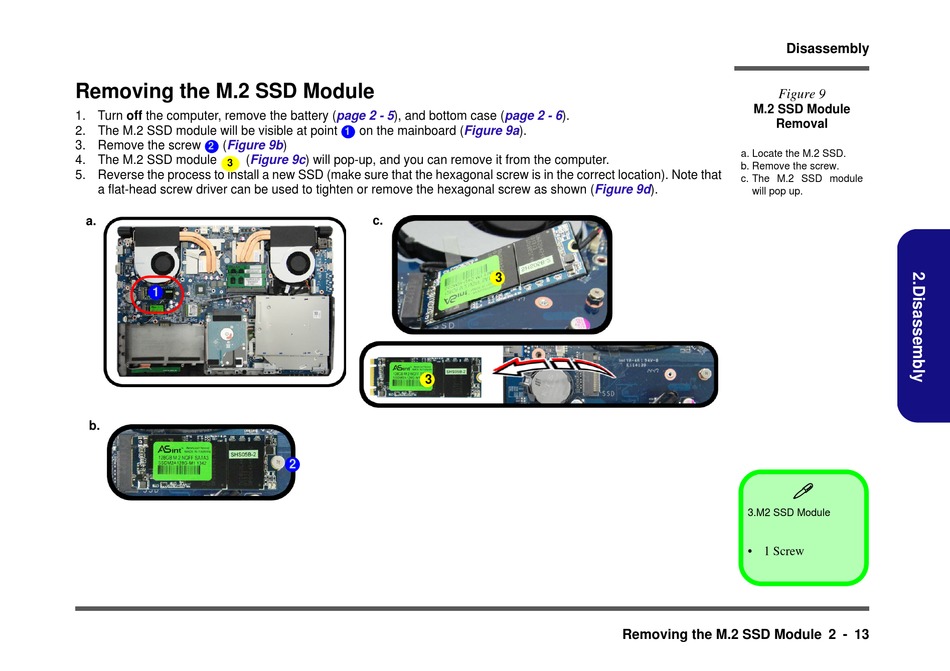

Figure 9
M.2 SSD Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.

3.M2 SSD Module
• 1 Screw
