Removing The Wireless Lan Module - EUROCOM R130T Service Manual

Disassembly

Removing the Wireless LAN Module

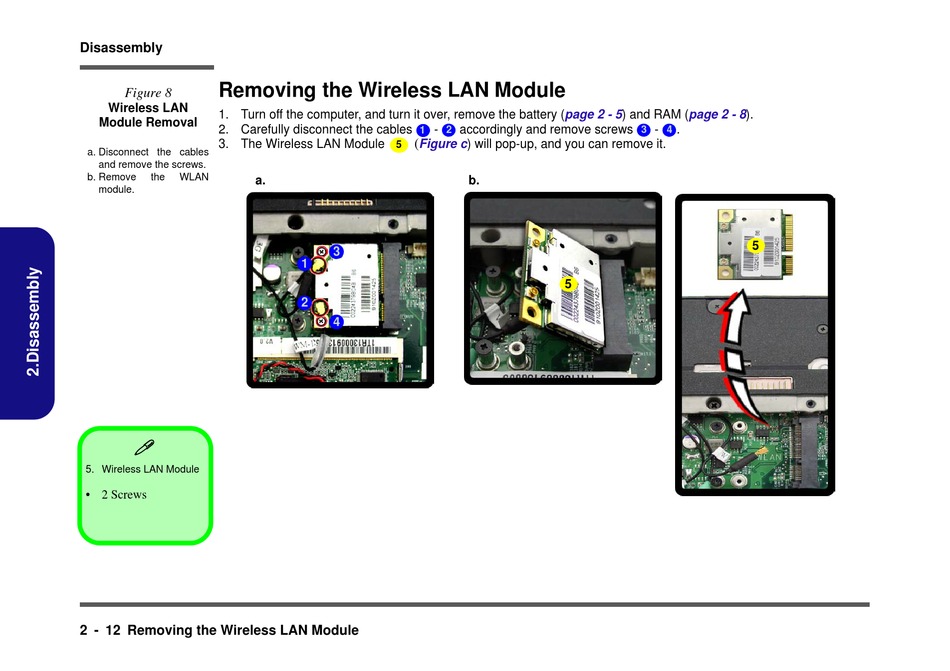

Figure 8
Wireless LAN
1. Turn off the computer, and turn it over, remove the battery
Module Removal
2. Carefully disconnect the cables
3. The Wireless LAN Module
a. Disconnect the cables
and remove the screws.
b. Remove the WLAN
a.
module.

5. Wireless LAN Module
• 2 Screws
2 - 12 Removing the Wireless LAN Module
- accordingly and remove screws
1 2
( Figure c) will pop-up, and you can remove it.
5
b.
3
1
2
4
(page 2 - 5) and RAM (page 2 - 8).
- .
3 4
5
5
