Introduction

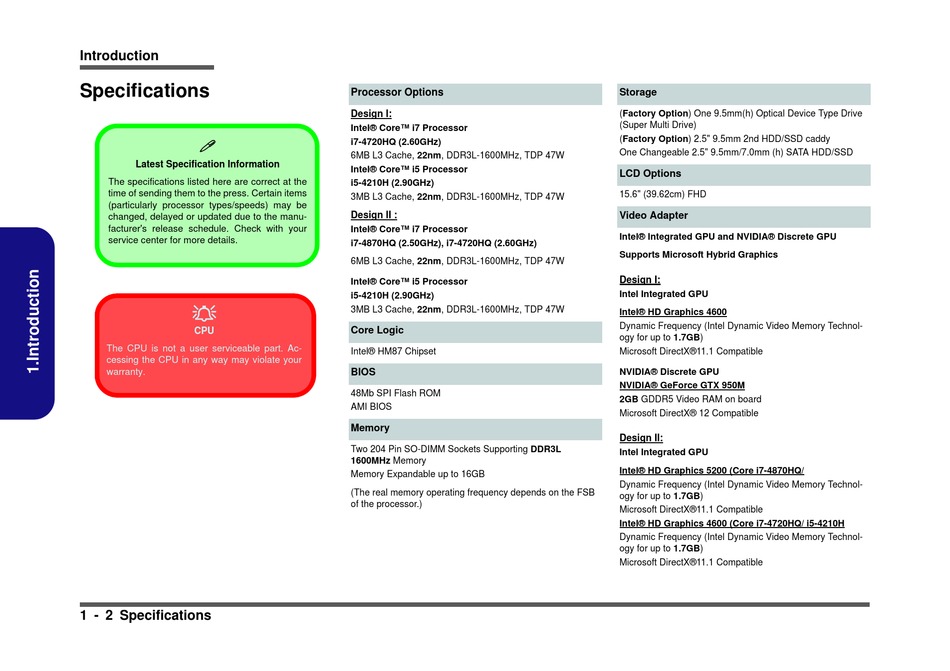

Specifications


Latest Specification Information
The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for more details.

CPU
The CPU is not a user serviceable part. Ac-
cessing the CPU in any way may violate your
warranty.
1 - 2 Specifications
Processor Options
Design I:
Intel® Core™ i7 Processor
i7-4720HQ (2.60GHz)
6MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 47W
Intel® Core™ i5 Processor
i5-4210H (2.90GHz)
3MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 47W
Design II :
Intel® Core™ i7 Processor
i7-4870HQ (2.50GHz), i7-4720HQ (2.60GHz)
6MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 47W
Intel® Core™ i5 Processor
i5-4210H (2.90GHz)
3MB L3 Cache, 22nm, DDR3L-1600MHz, TDP 47W
Core Logic
Intel® HM87 Chipset
BIOS
48Mb SPI Flash ROM
AMI BIOS
Memory
Two 204 Pin SO-DIMM Sockets Supporting DDR3L
1600MHz Memory
Memory Expandable up to 16GB
(The real memory operating frequency depends on the FSB
of the processor.)
Storage
(Factory Option) One 9.5mm(h) Optical Device Type Drive
(Super Multi Drive)
(Factory Option) 2.5" 9.5mm 2nd HDD/SSD caddy
One Changeable 2.5" 9.5mm/7.0mm (h) SATA HDD/SSD
LCD Options
15.6" (39.62cm) FHD
Video Adapter
Intel® Integrated GPU and NVIDIA® Discrete GPU
Supports Microsoft Hybrid Graphics
Design I:
Intel Integrated GPU
Intel® HD Graphics 4600
Dynamic Frequency (Intel Dynamic Video Memory Technol-
ogy for up to 1.7GB)
Microsoft DirectX®11.1 Compatible
NVIDIA® Discrete GPU
NVIDIA® GeForce GTX 950M
2GB GDDR5 Video RAM on board
Microsoft DirectX® 12 Compatible
Design II:
Intel Integrated GPU
Intel® HD Graphics 5200 (Core i7-4870HQ/
Dynamic Frequency (Intel Dynamic Video Memory Technol-
ogy for up to 1.7GB)
Microsoft DirectX®11.1 Compatible
Intel® HD Graphics 4600 (Core i7-4720HQ/ i5-4210H
Dynamic Frequency (Intel Dynamic Video Memory Technol-
ogy for up to 1.7GB)
Microsoft DirectX®11.1 Compatible
