Disassembly

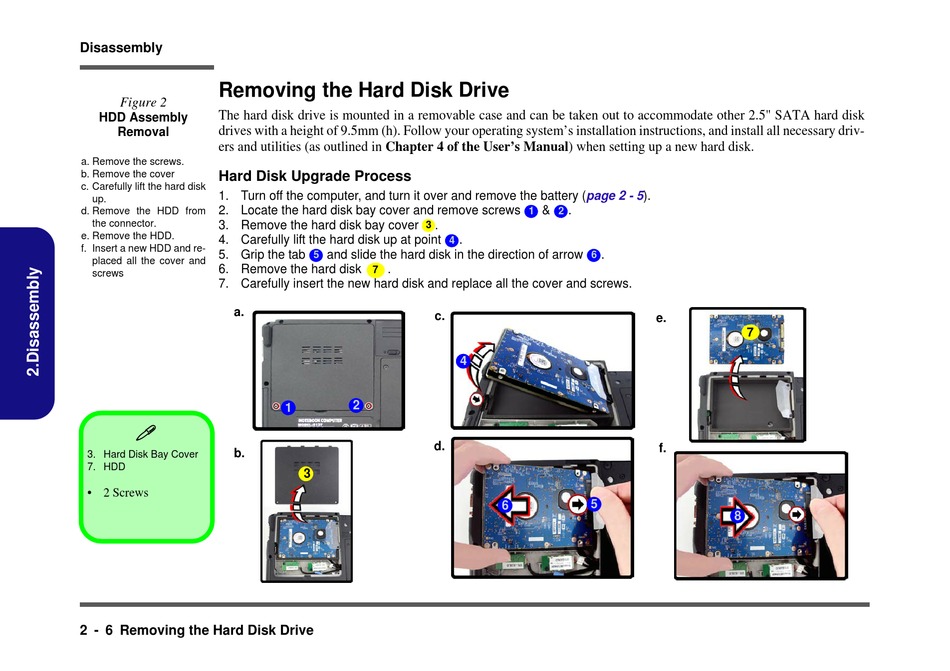

Removing the Hard Disk Drive

Figure 2
The hard disk drive is mounted in a removable case and can be taken out to accommodate other 2.5" SATA hard disk
HDD Assembly
drives with a height of 9.5mm (h). Follow your operating system's installation instructions, and install all necessary driv-
Removal
ers and utilities (as outlined in Chapter 4 of the User's Manual) when setting up a new hard disk.
a. Remove the screws.
b. Remove the cover Hard Disk Upgrade Process
c. Carefully lift the hard disk
1. Turn off the computer, and turn it over and remove the battery
up.
2. Locate the hard disk bay cover and remove screws
d. Remove the HDD from
the connector. 3. Remove the hard disk bay cover
e. Remove the HDD.
4. Carefully lift the hard disk up at point
f. Insert a new HDD and re-
5. Grip the tab
placed all the cover and
6. Remove the hard disk
screws
7. Carefully insert the new hard disk and replace all the cover and screws.
a.

b.
3. Hard Disk Bay Cover
7. HDD
• 2 Screws
2 - 6 Removing the Hard Disk Drive
.
3
.
4
and slide the hard disk in the direction of arrow
5
.
7
c.
4
2
1
d.
3
(page 2 - 5).
& .
1 2
.
6
e.
f.
5
6
7
