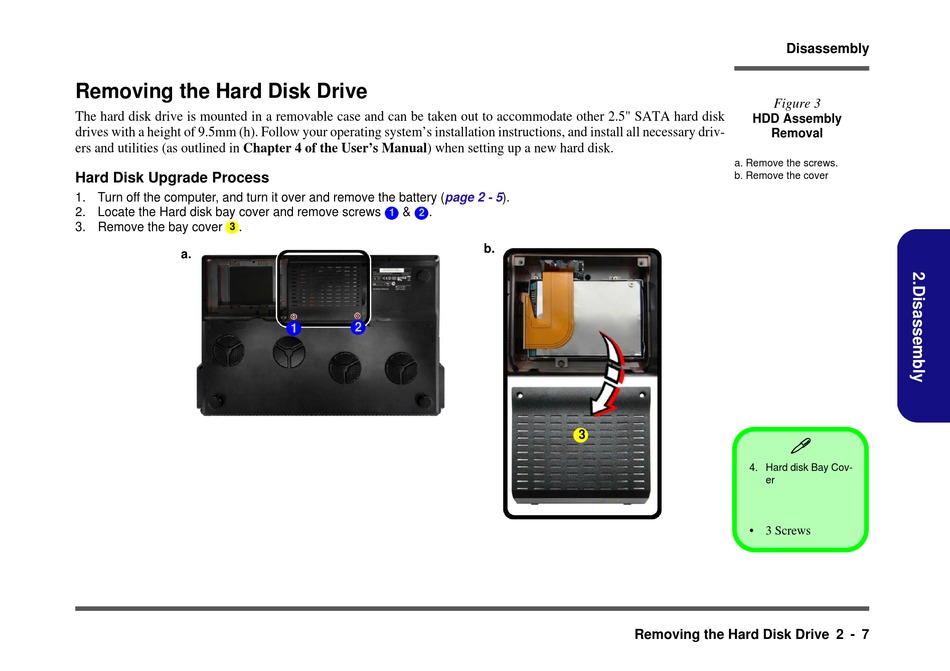

Removing the Hard Disk Drive

The hard disk drive is mounted in a removable case and can be taken out to accommodate other 2.5" SATA hard disk
drives with a height of 9.5mm (h). Follow your operating system's installation instructions, and install all necessary driv-
ers and utilities (as outlined in Chapter 4 of the User's Manual) when setting up a new hard disk.
Hard Disk Upgrade Process
1. Turn off the computer, and turn it over and remove the battery
2. Locate the Hard disk bay cover and remove screws
3. Remove the bay cover .
3
a.
(page 2 -
& .
1 2
2
1
5).
b.
3
Removing the Hard Disk Drive 2 - 7
Disassembly
Figure 3
HDD Assembly
Removal
a. Remove the screws.
b. Remove the cover

4. Hard disk Bay Cov-
er
• 3 Screws
