REDMIKE CONTROLS AND CONNECTIONS

1
2
3

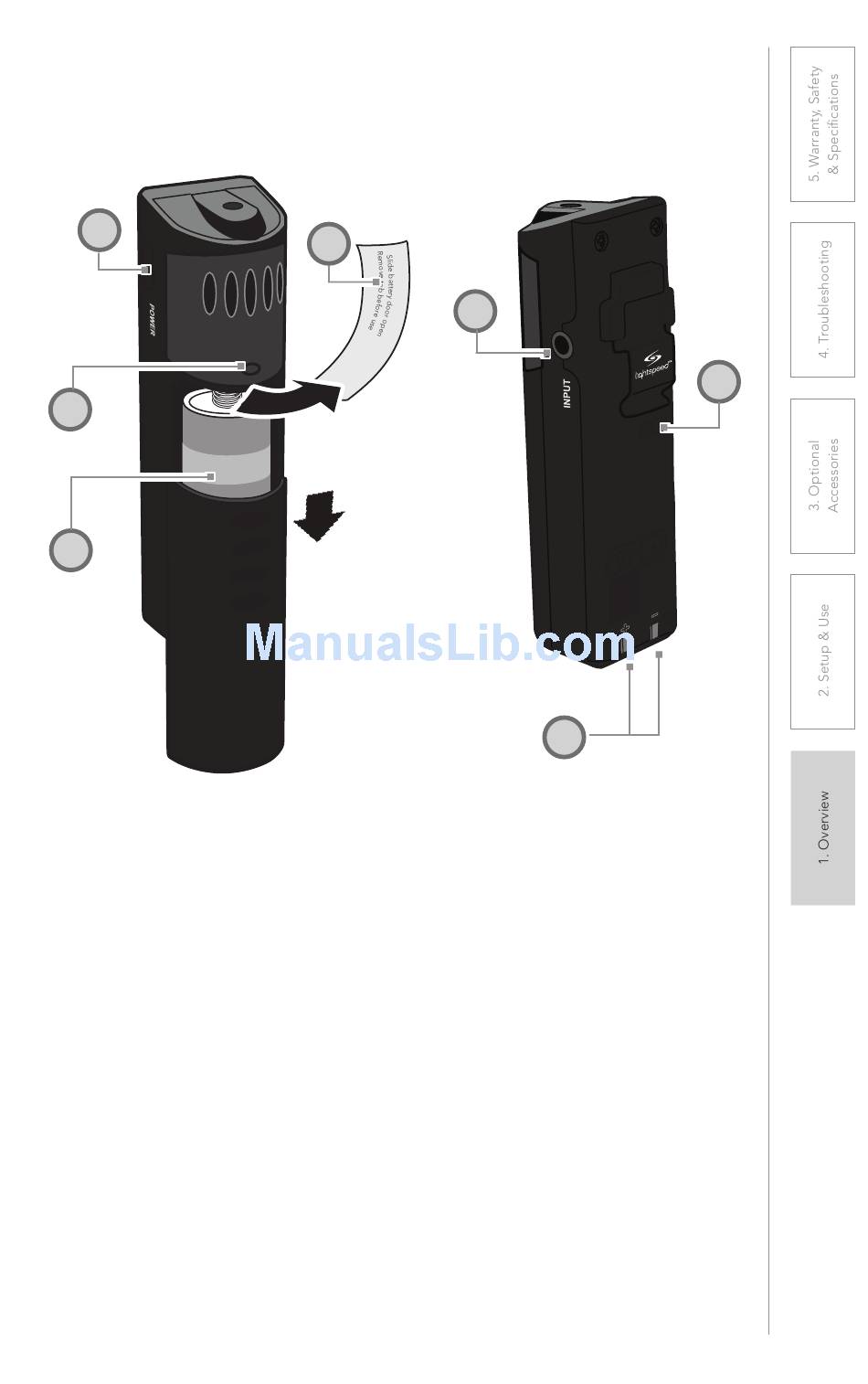

1. POWER BUTTON: Press this
button to turn the Redmike on,
press again to turn it off (mute).
2. POWER/LOW BATTERY
INDICATOR: A blue light
indicates the Redmike is on and
fully charged. A red light indicates
a charge is needed.
3. BATTERY COMPARTMENT: To
access the battery compartment,
slide the door downward. The
battery should only be replaced
by a Lightspeed AA rechargeable
sensing battery (part # NH2A27).
4. YELLOW PROTECTIVE TAB: Slide
the battery compartment door
open to remove this disposable
protective tab before use. NOTE:
do not attempt to remove the
tab without first opening the
compartment door, as it may tear,
4
5
leaving fragments.
5. AUDIO/MICROPHONE INPUT:
Use this input to plug in a laptop,
MP3 player or other audio
source to wirelessly transmit
audio to be played through the
system. Alternatively, an external
microphone can be connected.
6. CHANNEL SELECT SWITCH
(CH A/B): This switch allows
for selection between Channel
A or B. If you are using a single
microphone, we recommend using
Channel A.
7. CHARGER CONTACTS (+ -):
These contacts interface with the
charging tabs in the RMCC cradle
charger for daily charging. Simply
place the Redmike in the charger.
6
7
