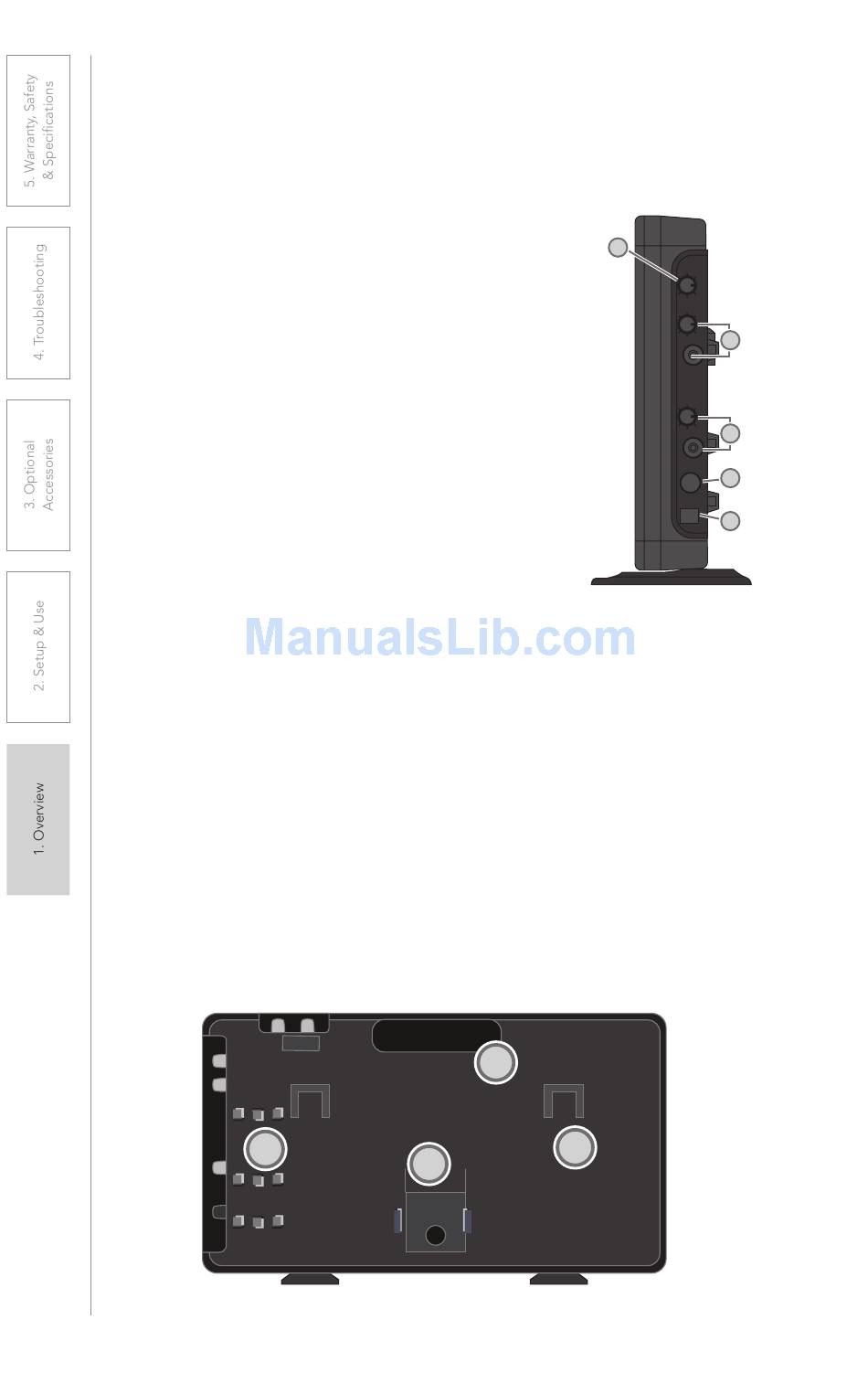

SIDE PANEL CONTROLS / CONNECTIONS
1. TONE CONTROL: Adjusts the audio
level for optimum sound quality.
2. AUDIO INPUT VOLUME CONTROL &
INPUT JACK: 3.5mm stereo connector
for connecting classroom audio sources
to the Redcat. Controls the volume level
of the audio input from the connected
audio source.
3. AUDIO OUTPUT VOLUME CONTROL
& INPUT JACK: 3.5mm stereo
connector for connecting to an assisted
listening device (ALD) or to a computer
for recording. Controls the volume level
of the audio output.
4. POWER SWITCH: This switch is used
to turn the Redcat on or off. The front
panel blue LED lights when power is on.
5. DC POWER INPUT JACK: Plug the
power supply (24V/1.75A) into this jack.

REAR PANEL FEATURES

CARRYING INSET: Cutaway grip for moving or carrying
1.
the Redcat Access.
2. CABLE MANAGEMENT AND STRAIN RELIEF
3. WALL MOUNTING SLOTS
4. SECURITY BRACKET SLOT
8
2
Testing Purposes Only
1
3
4
1
2
3
4
5
