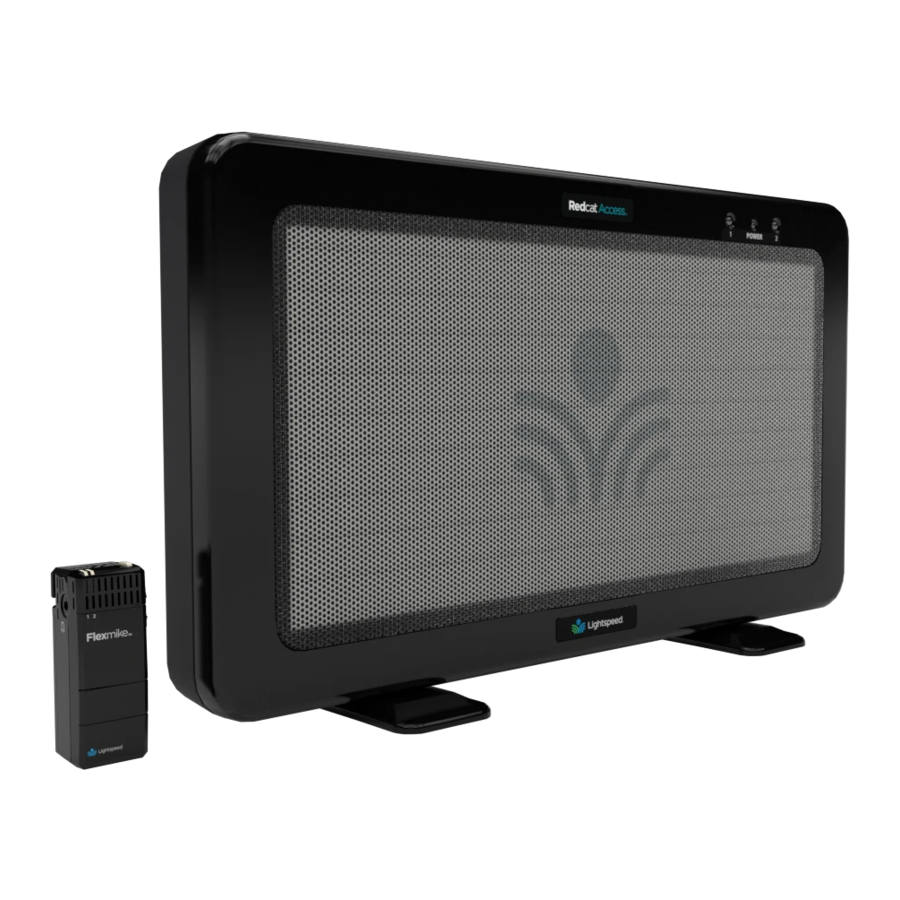

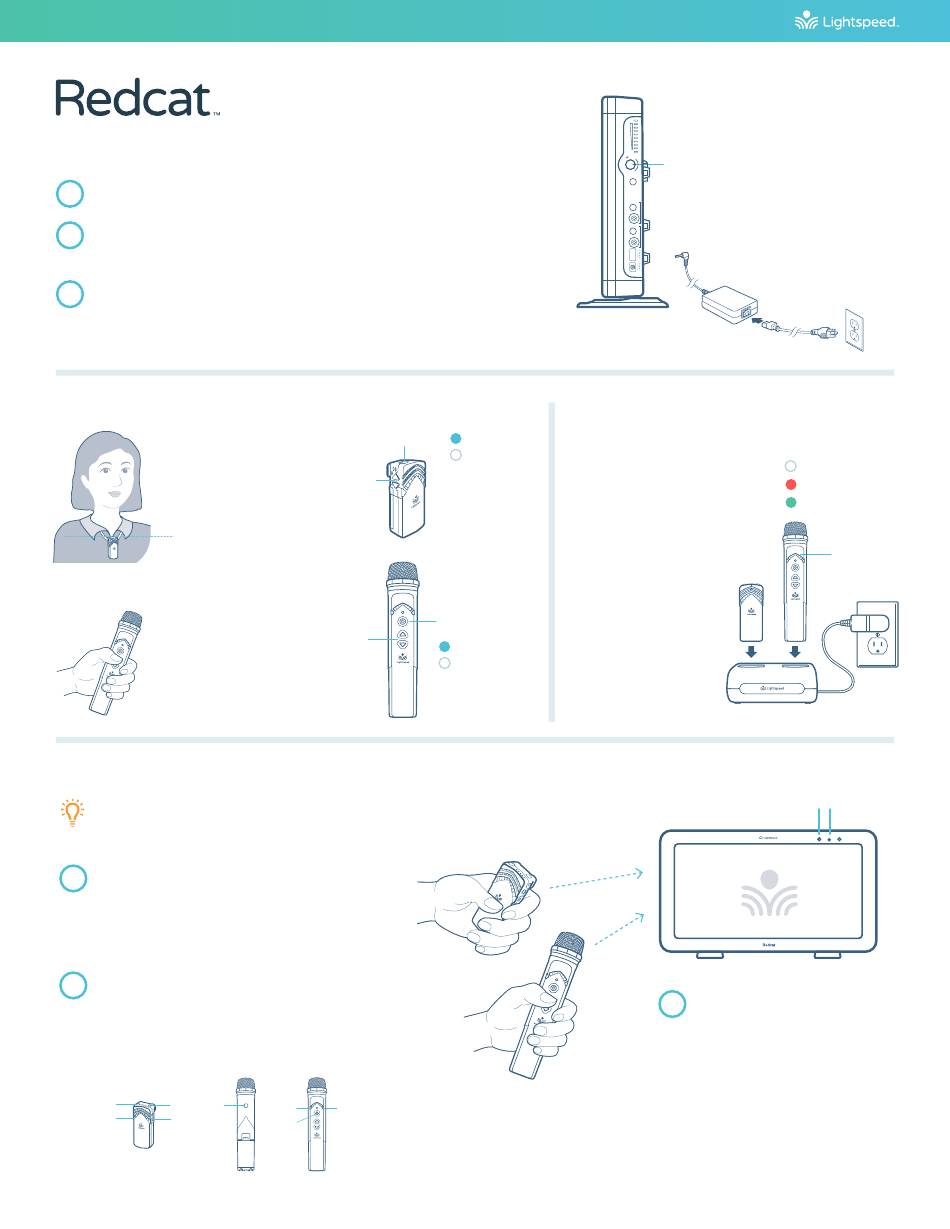

Lightspeed Redcat Quick Start Manual

Quick Start Guide
Instructional Audio System
DETERMINE SET-UP LOCATION AND PLUG IN POWER SUPPLY
Redcat should be placed within 7 feet of an electrical outlet and on a surface
1
about 4-6 feet off the ground.
Next, find a location as far away as possible from the teacher who will be using
2
the microphone. Avoid putting Redcat in close proximity to the teacher's mic
which can result in feedback.
Connect the AC power cord into the DC power supply. Insert the connector
3
into the Redcat and plug the power cord into an electrical outlet. Redcat
automatically powers on and the white POWER light on the front panel will glow.
USING THE FLEXMIKE
Remove microphone
from charger. Press
the mute button to
unmute, hold near
your mouth and
begin speaking.
ALIGN WITH
COLLARBONE
USING THE SHAREMIKE
Remove microphone
from charger and press
the mute button to
begin speaking.
PAIRING MICROPHONES TO REDCAT
Your system is shipped with microphones and base units paired for quick and easy use. If
you ever need to pair new components, follow this pairing process:
1
POINT MICROPHONES AT REDCAT
From a powered off state, point the IR transmitter lens
toward the base unit (for Sharemike, the transmitter
lens is located on the back of the microphone).
2
PRESS AND HOLD POWER BUTTON
Press and hold the power button for 5 seconds until
the Mic 1 and Mic 2 lights start flashing, then release
the button and let the pairing process finish.
POWER
IR TRANSMITTER
MIC 1
MIC 2
POWER/MUTE BUTTON
ADJUST
VOLUME
ADJUST
VOLUME
FLEXMIKE
SHAREMIKE
MIC 1
MIC 2
POWER
BACK FRONT
CHARGE MICROPHONES NIGHTLY
Place the microphones
TALK (BLUE)
into the cradle charger. The
MUTE (WHITE)
power status light will glow
red when it is charging.
When charging is complete,
the power status light will
glow green.
It takes about 5-6 hours
to fully charge the
microphone battery.
POWER/MUTE
BUTTON
TALK (BLUE)
MUTE (WHITE)
Push
POWER ON
Level
Tone
Input
Output
NORMAL OPERATION
CHARGING IN PROGRESS
CHARGING COMPLETE
STATUS LIGHT
3
CONFIRM STATUS
The status light on Redcat will glow
indicating the pairing process is
complete. The Mic 1 or Mic 2 light on
the microphone will stay illuminated.
POWER STATUS
LIGHT
POWER LIGHT
