SECTION 3:

OPTIONAL ACCESSORIES

OPTIONAL Redmike VC (Volume Control)

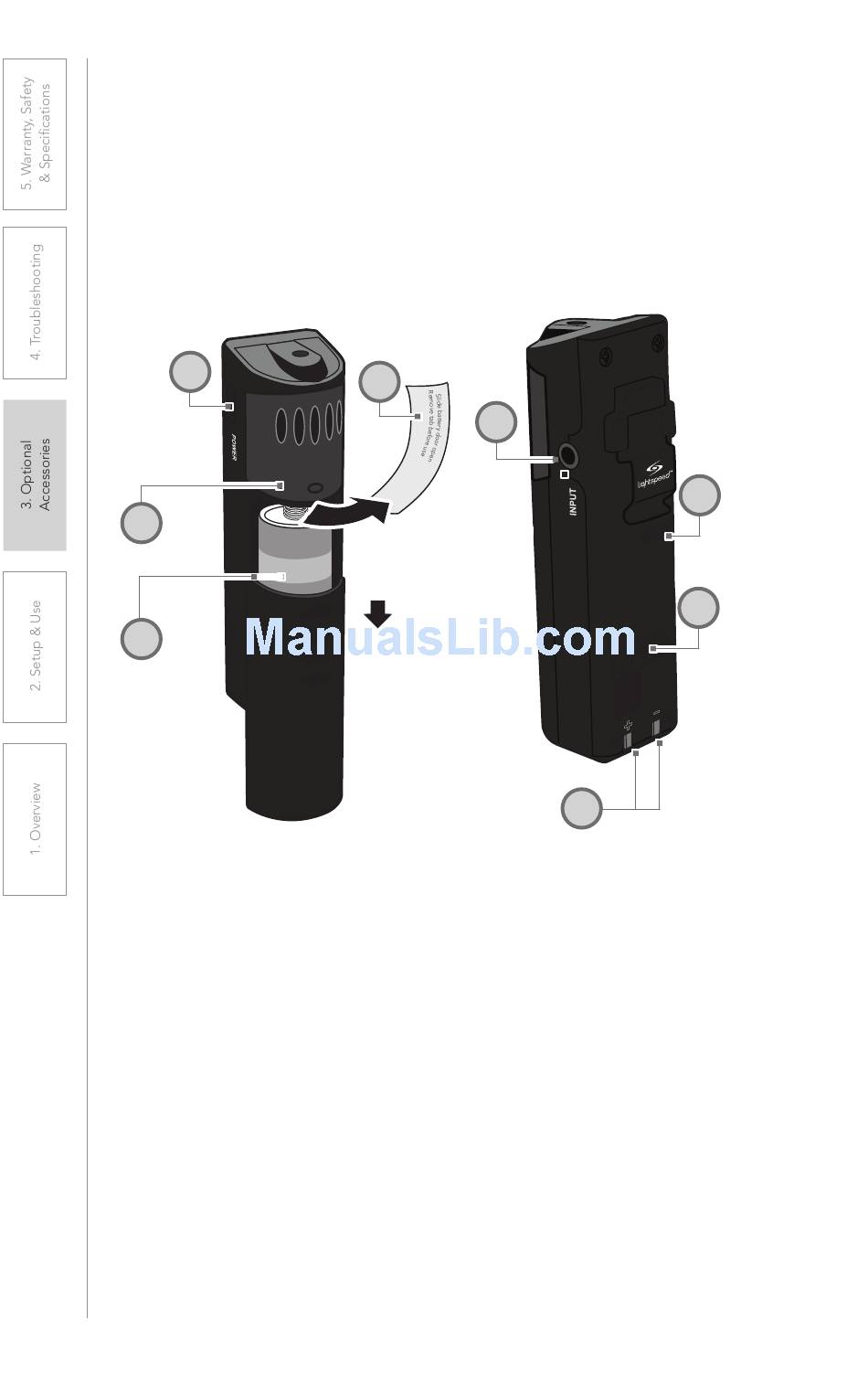

Controls and Connections

2
3
1. POWER /MUTE BUTTON
2. POWER/LOW BATTERY
INDICATOR: A blue light
indicates the Redmike VC is on
and fully charged. A red light
indicates a charge is needed.
3. BATTERY COMPARTMENT: To
open, slide the door downward.
The battery should only be
replaced by a Lightspeed AA
rechargeable sensing battery
(part # NH2A27).
4. YELLOW PROTECTIVE TAB: Slide
the battery compartment door and
remove this disposable protective
tab before use.
5. AUDIO/MICROPHONE INPUT:
Use this input to plug in a laptop,
MP3 player or other audio
20
1
4
5
source to wirelessly transmit
audio to be played through the
system. Alternatively, an external
microphone can be connected.
6. CHANNEL SELECT SWITCH (CH
A/B): Use this to choose Channel
A or B. If you are using a single
microphone, we recommend using
Channel A.
7. VOLUME CONTROLS (UP -
DOWN)
8. CHARGER CONTACTS (+ -):
These contacts interface with the
charging tabs when the Redmike
VC is placed in the RMCC cradle
charger.
6
7
8
