Reconnecting the Pod
If the transducer pod has been serviced by our Customer Resource Center, follow the
steps in this section to reconnect the pod. See the illustration Reconnecting the Pod
for more information.
WARNING! Make sure that power is disconnected from the Transducer Deployment
System before you start the reconnection instructions.
1. Place a small screwdriver into the deployment column holes so that the
cables don't retract into the Transducer Deployment System. See the
illustration Removing the Fasteners from the Connector Case in the
previous section for more information.
CAUTION! If the cables retract into the deployment system, pull the cables carefully
back down. Do NOT pull the cables down by the connectors or wires.
2. Look inside the pod and confirm the hex standoff is in place. See the illustration,
Confirming the Hex Standoff Installation. If it has fallen out, insert a new hex
standoff from the provided repair installation kit.
(for authorized repair only)

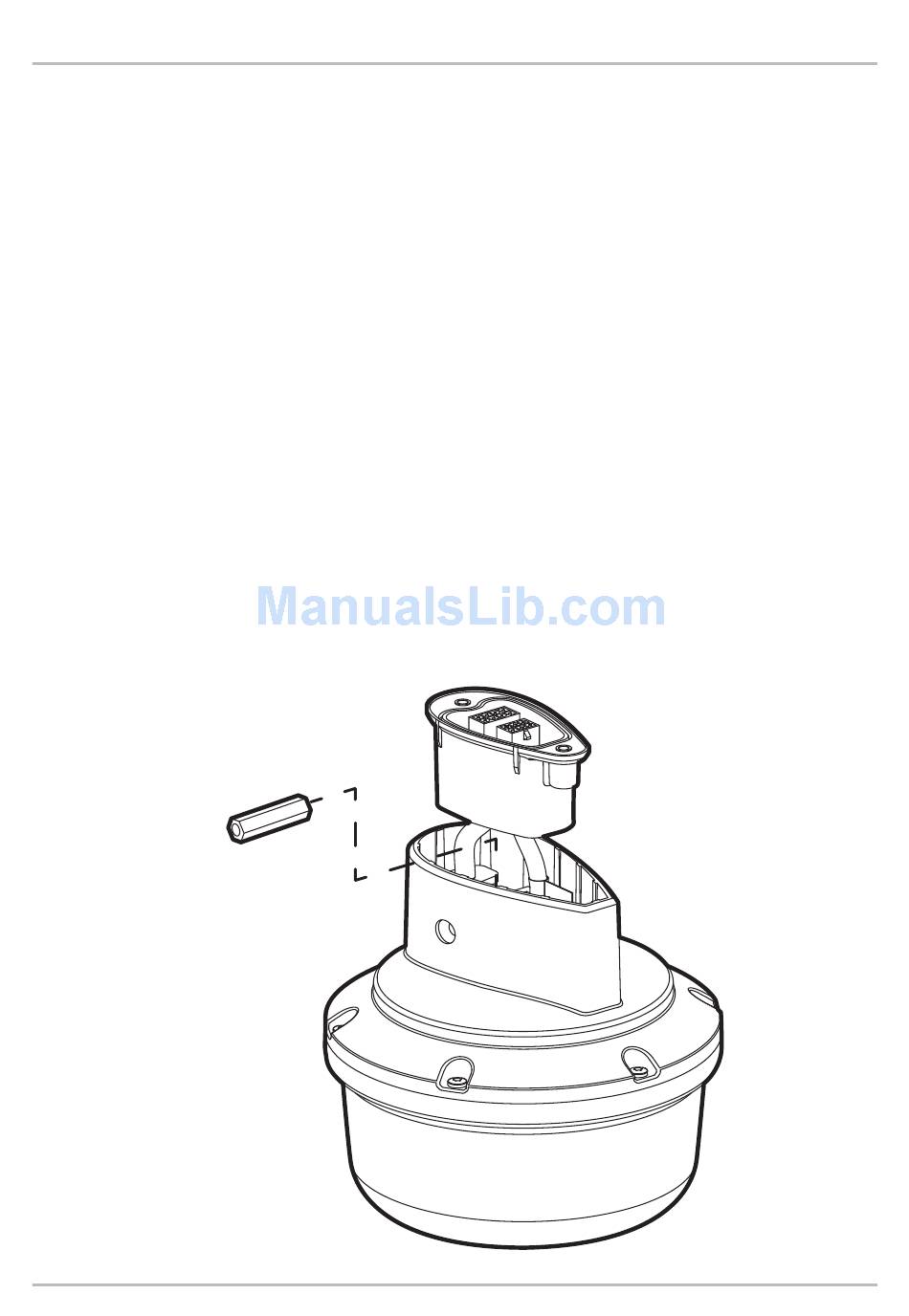

Confirming the Hex Standoff Installation
Hex Standoff
in the Center
51

Reconnecting the Pod (for authorized repair only)
