2. Deploy: Press the RIGHT Cursor key to deploy the transducer.
3. The sonar returns from the 360 scan will begin to display on the 360 View.
Review the display for the following information:
• Bottom: Confirm that the bottom is visible on-screen.
• Blocked Beams: If the beams hit a hard surface, it will appear as bright
white on the display. If the beams are blocked by the hull, scag, trolling
motor, etc, you will need to deploy the transducer deeper (Main Menu
> Accessories tab > 360 Sonar Settings > 360 Depth).
4. Retract: When you are finished reviewing the operation, press the MENU
key once. Select Retract, and press the RIGHT Cursor key.
Trolling Motor

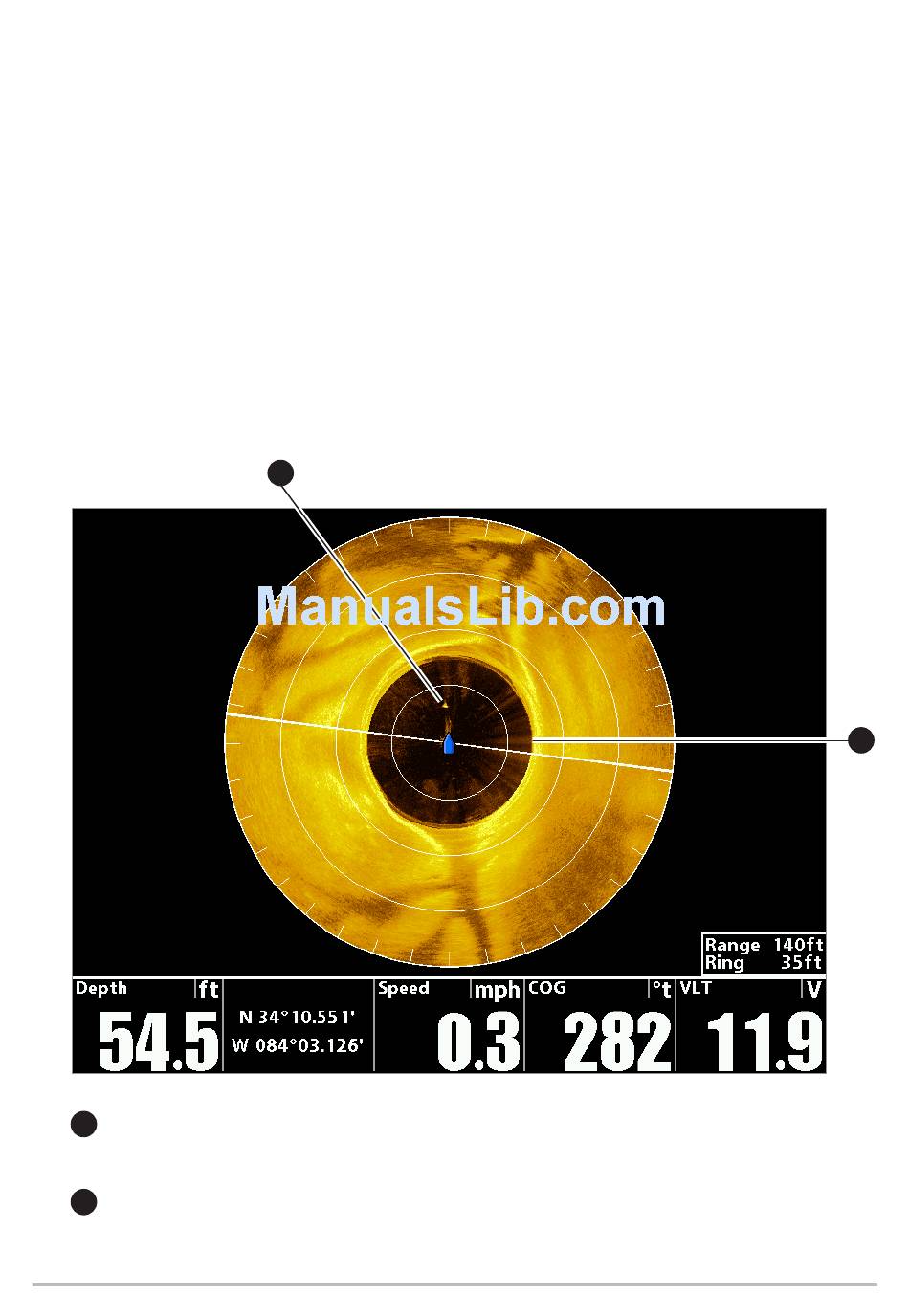

A
hard surface)
Bottom Return
B
A
is obstructing the beams (the sonar returns are lighter because they hit a
37
Installation - Set up the Control Head
B
