C. No Access Under the Mounting Location
Use the following instructions to deck mount the Sensor and route the cable to the
side if there is not space for a cable underneath the mounting location:
NOTE: It is important to review the mounting considerations and test run the cable
route as indicated in Section 1 before proceeding with the installation.
1. Secure the NMEA pigtail with electrical tape.
NOTE: Unless it is needed, leave the NMEA pigtail
secured to the cable. If you are connecting the pigtail
to a NMEA 0183 device, see Section 3: Connect to
the Control Head for connection information.
2. Route the cable from the Sensor to the Control
head.
• The Sensor has two wire routing notches.
Use the cable notch closest to the
intended cable route.
• If holes are required to route the cable,
they must be 3/4" (19 mm) to allow for the
cable connector.
• To use extension cables, see the details in
Section 1: Choose the Mounting Location.
Installation - GPS/Heading Sensor

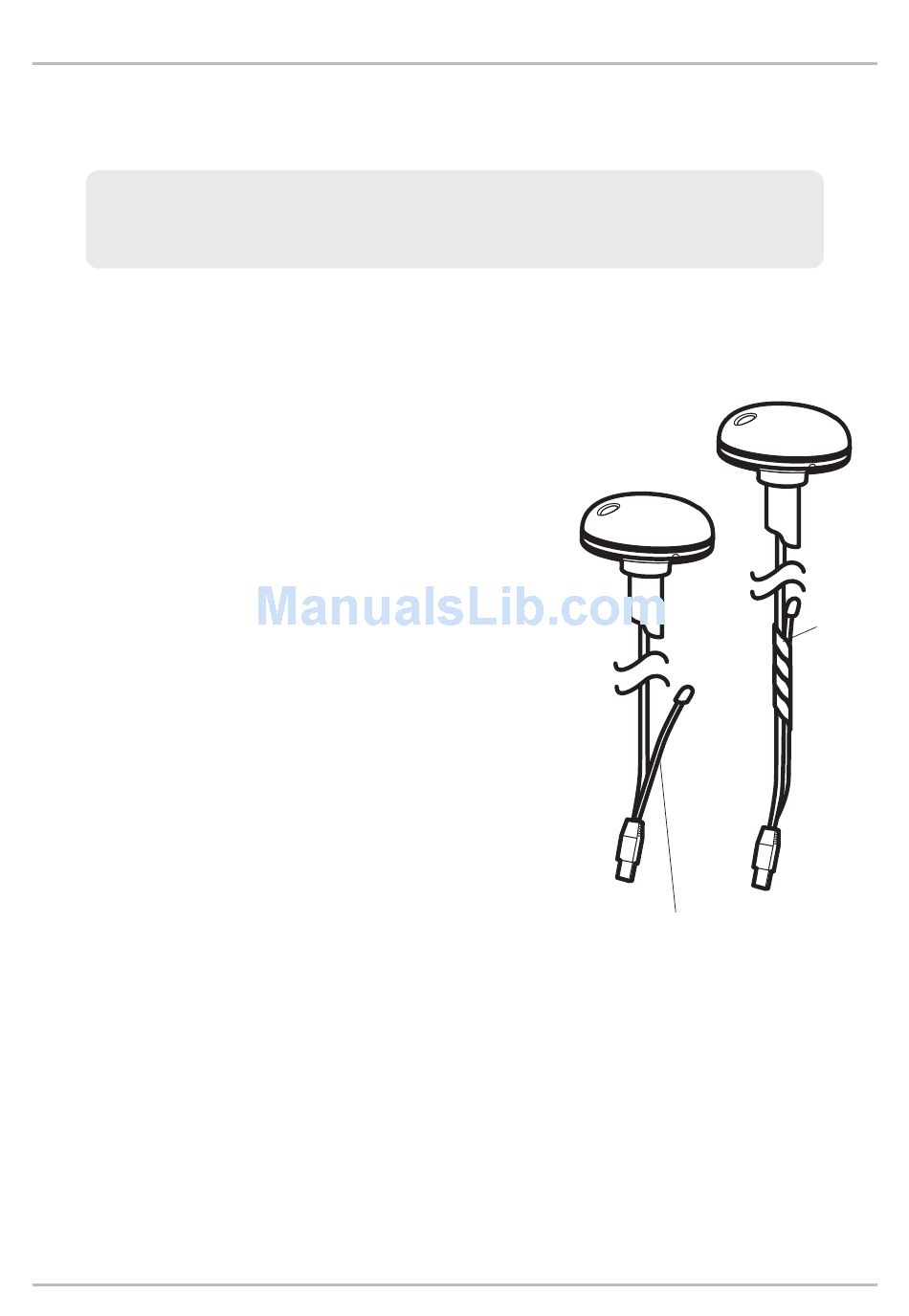

Taping the NMEA Pigtail
NMEA Pigtail Cable Out
12
to the Cable
NMEA
Pigtail
Cable
Taped
