| Install the Transducer Bracket
Use the following instructions to install the transducer bracket onto the transom
bracket.
1. Insert the transducer bracket into the arms of the transom bracket so that the
holes are aligned and the transducer bracket is level vertically. You will
finalize the angle and installation in the following steps.
NOTE: To lower the pod height by 3" (7.6 cm), the transducer bracket can be mounted
upside down. This type of installation can be used if the boat's transom is very tall or
if the boat has a reversed transom.

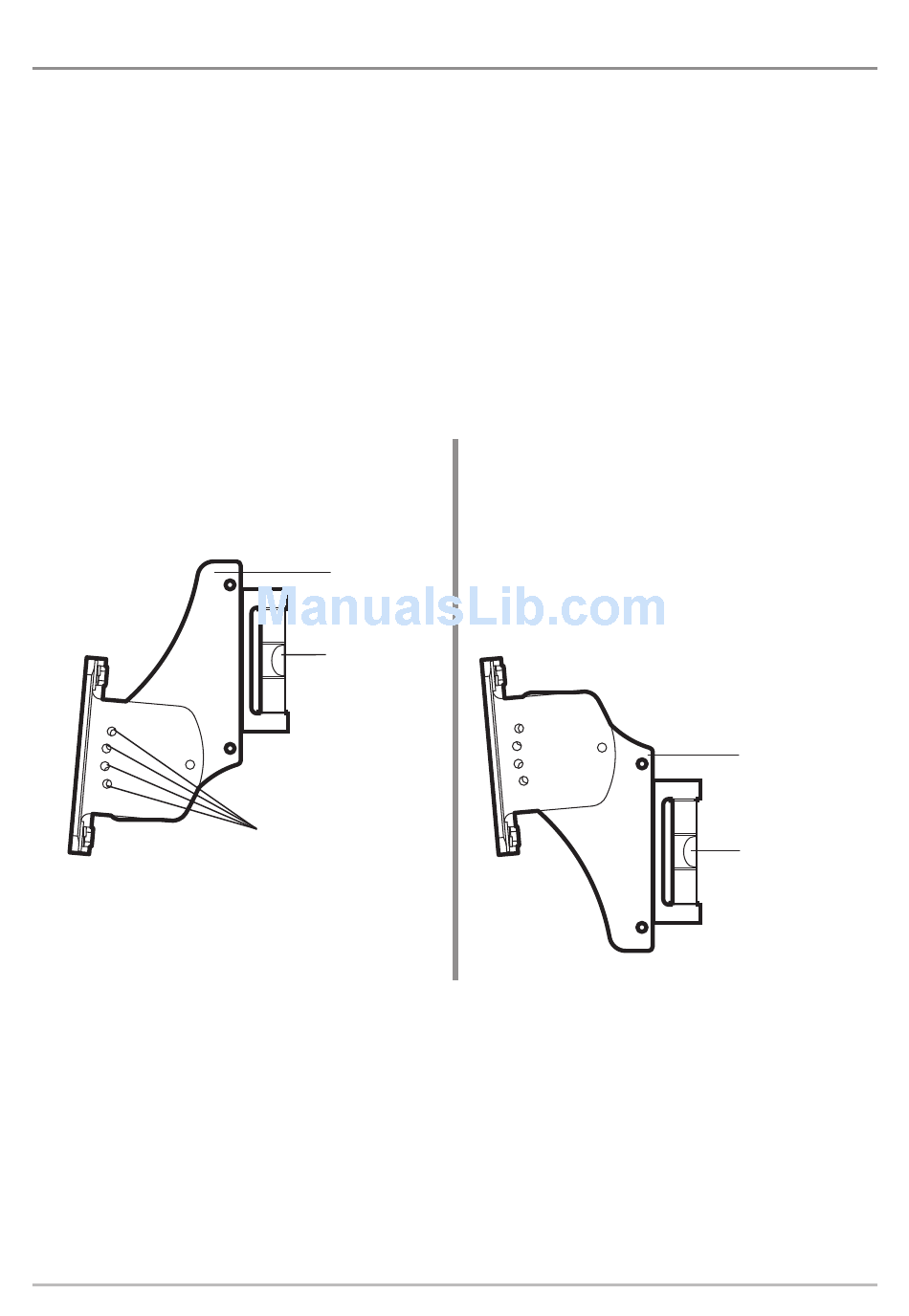

Adjusting the Angle of the
Transducer Bracket
Installation - Transducer
Transducer
Bracket
Level
The bracket holes
allow you to set
the angle of the
transducer bracket.
Alternative Installation
(may be needed for reversed transoms
or to lower the height of the pod)
22
Transducer
Bracket
installed
upside
down
Level
