• Engine Obstruction: Trim the engine to its lowest position and steer the
engine fully to the selected mounting side. Confirm that there is at least
6 inches (15.3 cm) of clearance from any point on the Transducer Deployment
System, especially from the deployed pod to the propeller.
• Clear Path Below: The transducer pod must have a clear, unobstructed path
to deploy without hitting trim tabs, poling platforms, ladders, engine, or other
obstructions.
• Unobstructed View: Once deployed, the transducer pod must NOT have
anything obstructing the 'view' of the rotating beams. Nothing should be in
the line of sight of these beams (not a hull, motor, trolling motor, etc). The
transducer pod descends 29 inches (73.7 cm) when it is deployed.

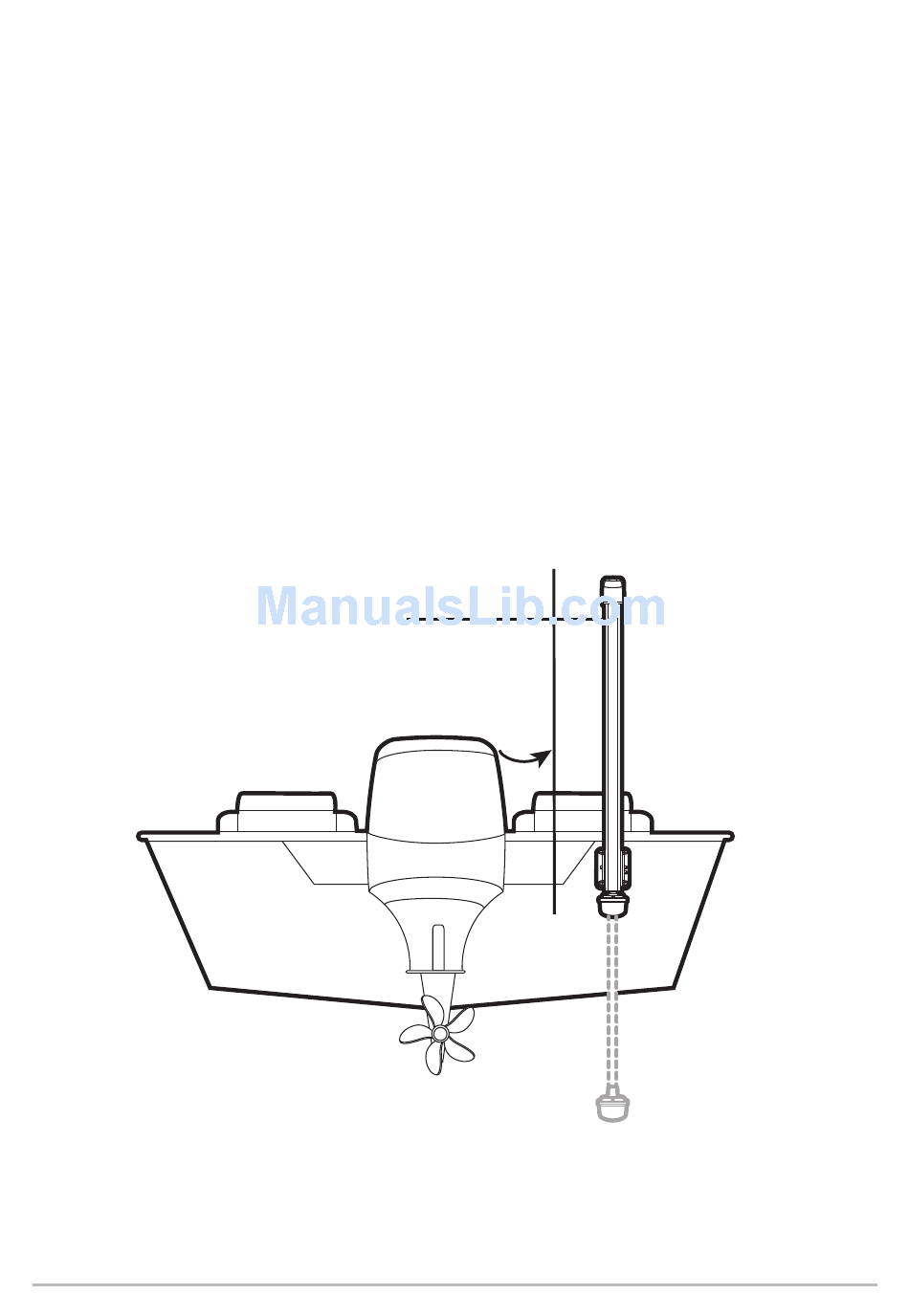

Distance from Engine and Open Path for Deployment
Installation - Transducer
Trim the engine to
the lowest point and
steer it to the selected
mounting side.
18
6"
