5. Place a small screwdriver through the
Deployment System. See the illustration
Removing the Fasteners from the
Connector Case.
CAUTION! If the cables retract into the
deployment system, pull the cables carefully
back down. Do NOT pull the cables down by the
connectors or wires.
6. Remove the fasteners from the
connector case. See the illustration
Removing the Fasteners from the
Connector Case.
7. Use a flat-head screwdriver to press
inward, on the top of each connector
tab, to disengage the latch. You can also
use the screwdriver to carefully pry the
connectors out of the ports. See
the illustration Disconnecting the
Connectors.
CAUTION! Be careful not to damage the tabs
or pull on the wires while you are disconnecting
the connectors.

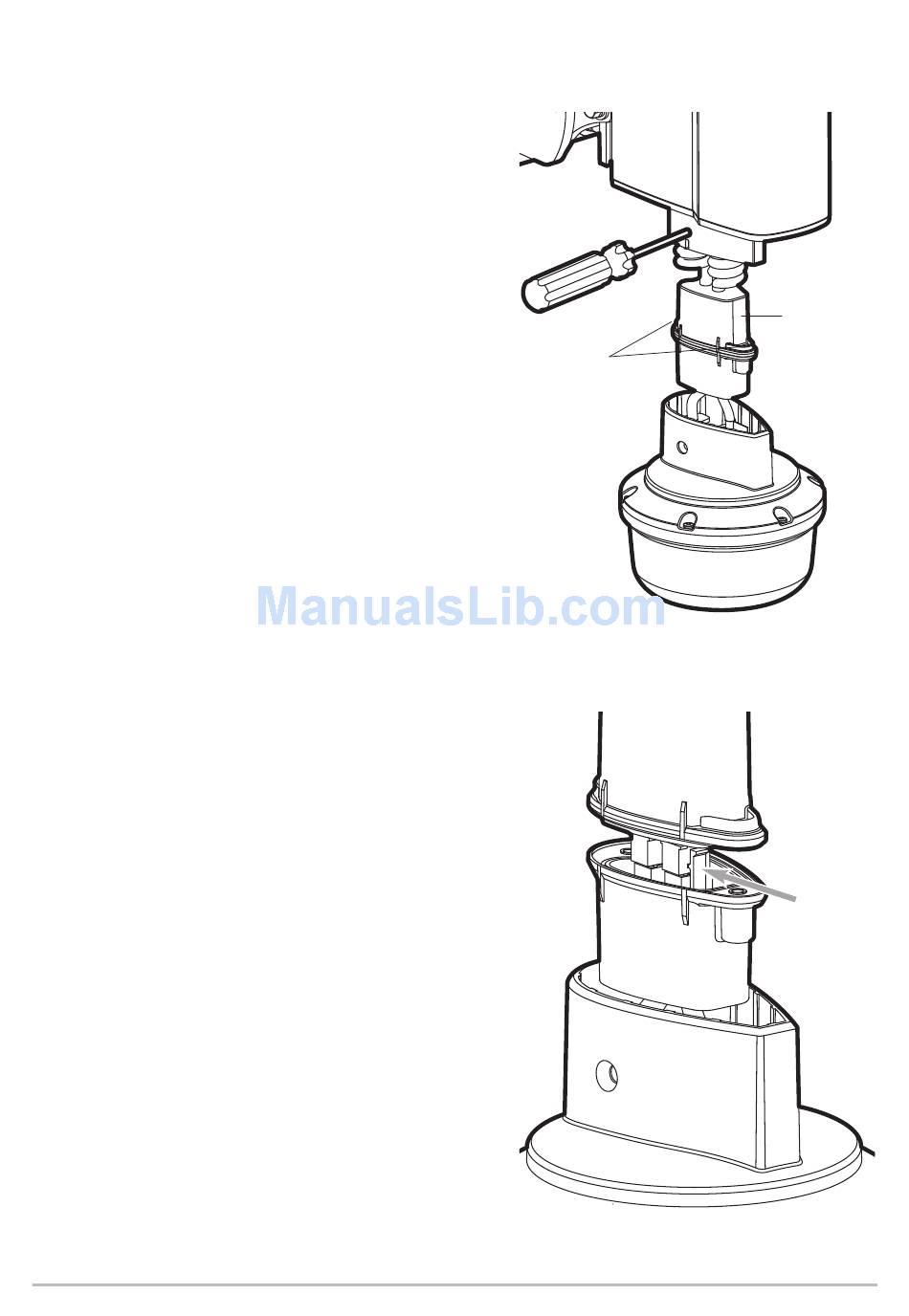

Removing the Fasteners
from the Connector Case
Remove
the
fasteners
Disconnecting the Connectors
49 Removing the Pod (for authorized repair only)
Connector
Case
Press
inward
