5
| Install the Transducer Deployment System
Use the instructions in this section to secure the Transducer Deployment System to
the transducer bracket.
1. Carefully lift the Transducer Deployment System and align its track with the
track on the transducer bracket.
2. Slide the Transducer Deployment System down the track until the pod is
approximately 8" (20 cm) above the bottom line of the hull.
3. Align the bracket holes and install the two 3 1/4" (8.3 cm) bolts and hardware
as shown in the illustration Installing the Transducer Deployment System.
NOTE: Apply Anti-Seize to the end of each bolt as you are installing the hardware.
1/4" Split Ring
Lock Washer
1/4" x 3 1/4"
Bolt
Installation - Transducer

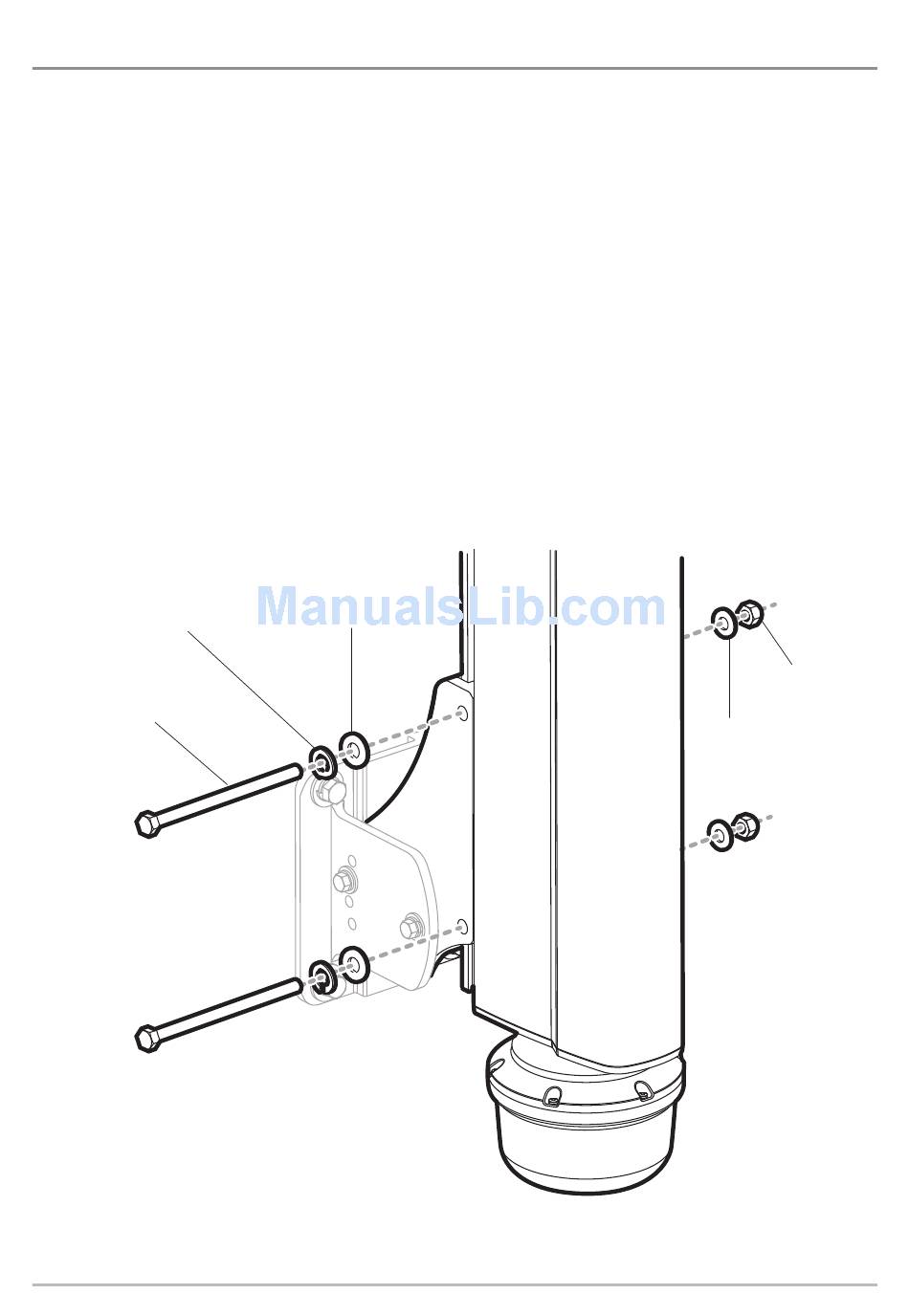

Installing the Transducer Deployment System
1/4" Flat
Washer
24
1/4" Hex
Lock Nut
1/4" Flat
Washer
