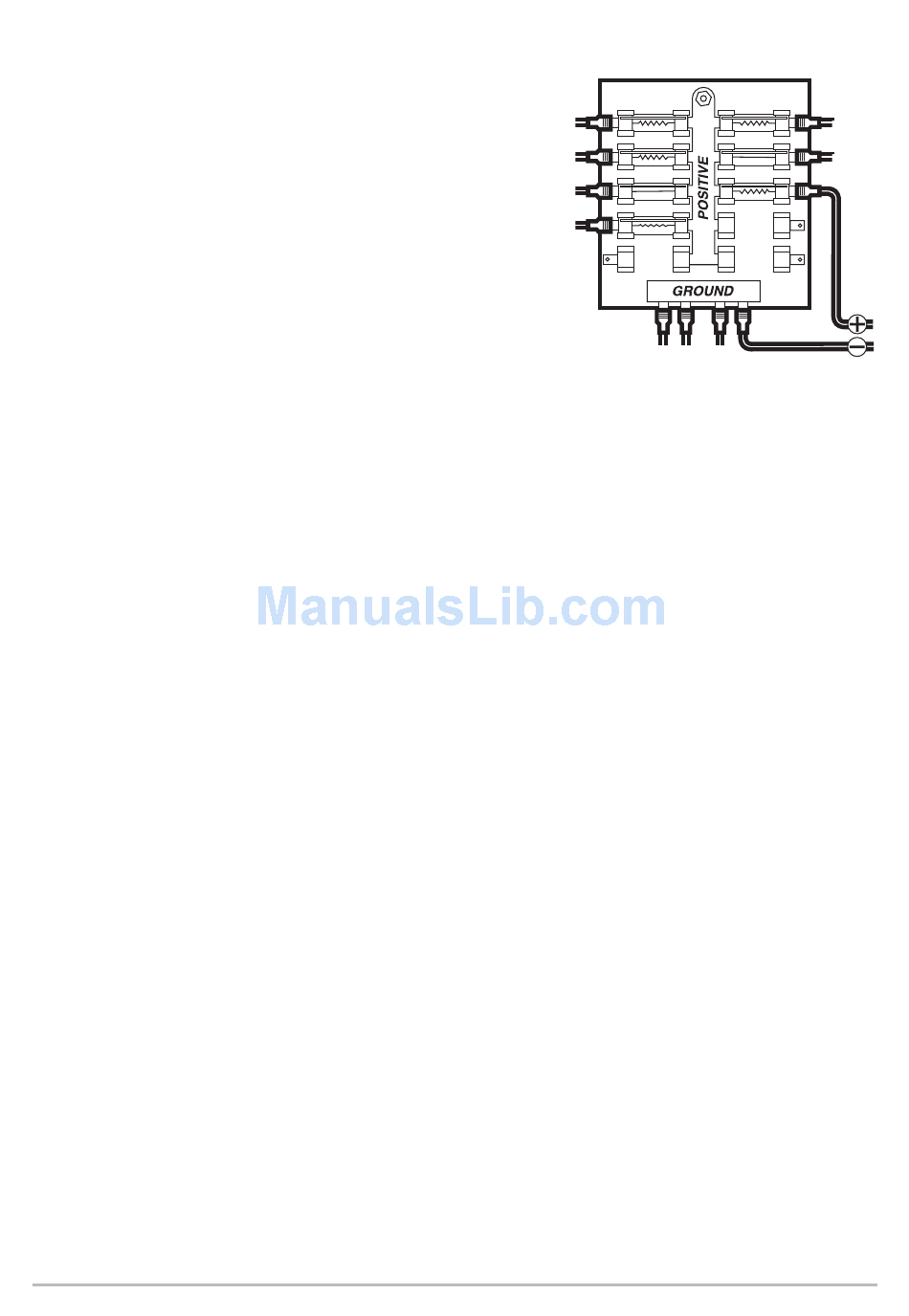

9a. Main Switch/Fuse Panel: If a fuse terminal is
available, use crimp-on type electrical
connectors (not included) that match the
terminal on the fuse panel. Attach the black
wire to ground (—), and the red wire to
positive (+) 12 VDC power. Install an 8 Amp
fuse (not included) for protection of the unit.
OR
9b. Battery Switch: Install the battery switch (not
included) using the instructions provided with
it. You will also need to obtain and install an
inline fuse holder and an 8 Amp fuse (not
included) for the protection of the unit. Attach
the black wire to ground (—), and the red wire
to positive (+) 12 VDC power.
WARNING! If you are unable to obtain a battery switch and are forced to connect the
power cable directly to the battery, be aware that this will drain the battery. Humminbird®
does not recommend connecting to a battery without the appropriate fuse and a switch.
10. Secure the cables with cable ties along the route as needed for a clean
assembly.
11. Re-install the Port Cover.
Installation - Cables
Connecting to the Fuse Panel
30
