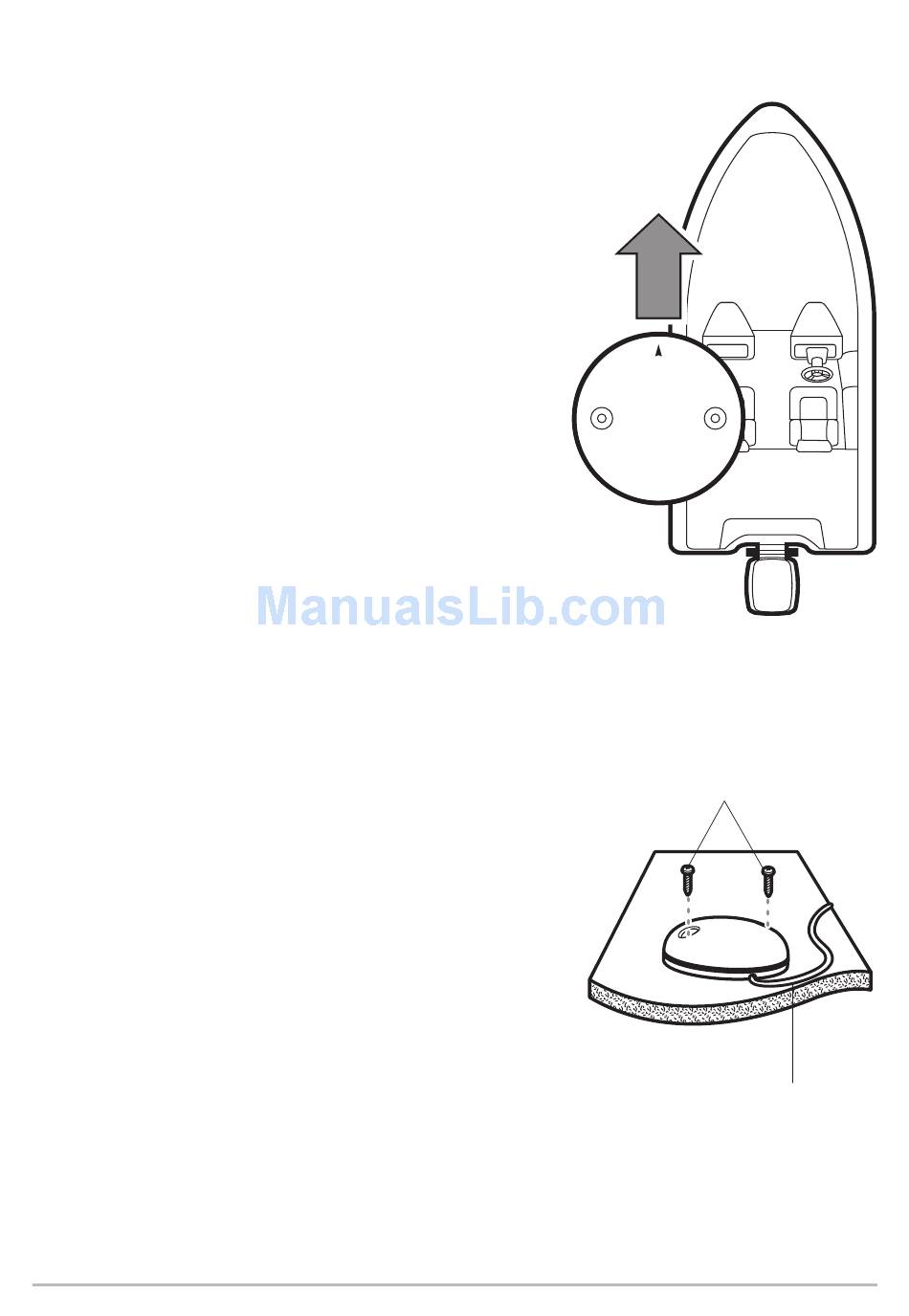

3. With the cable routed, position the Sensor so
the arrow on the cover is pointed straight
toward the front of the boat in the direction of
travel. The arrow should be parallel with the
keel.
NOTE: Failure to align the Sensor correctly will result in
incorrect compass readings.
4. Make sure the Sensor is flush against the
surface, and mark the two mounting holes
with a pencil or awl.
5. Move the Sensor to the side and drill the two
5/32" (4 mm) pilot holes.
NOTE: Apply marine-grade silicone caulk or sealant to
both screw and drilled holes as needed to protect your
boat from water damage.
6. Align the Sensor's screw holes over the pilot
screw holes and attach with the #6 - 3/4"
Phillips head screws. Hand tighten only.
Attaching the Sensor to the
13
Positioning the Arrow
on the Sensor
Mounting Surface
#6 - 3/4
Mounting Screws
Cable routed to the side
Installation - GPS/Heading Sensor
