2. Set up 360 Imaging™ on the Control Head
To deploy the transducer from the control head, the transducer must be selected from
the network, and the deployment depth should be set in advance. When you select
the 360 Imaging™ transducer from the network, the related views and menus will be
added to the system.
Press the
RIGHT or
LEFT Cursor
keys to
select a tab.

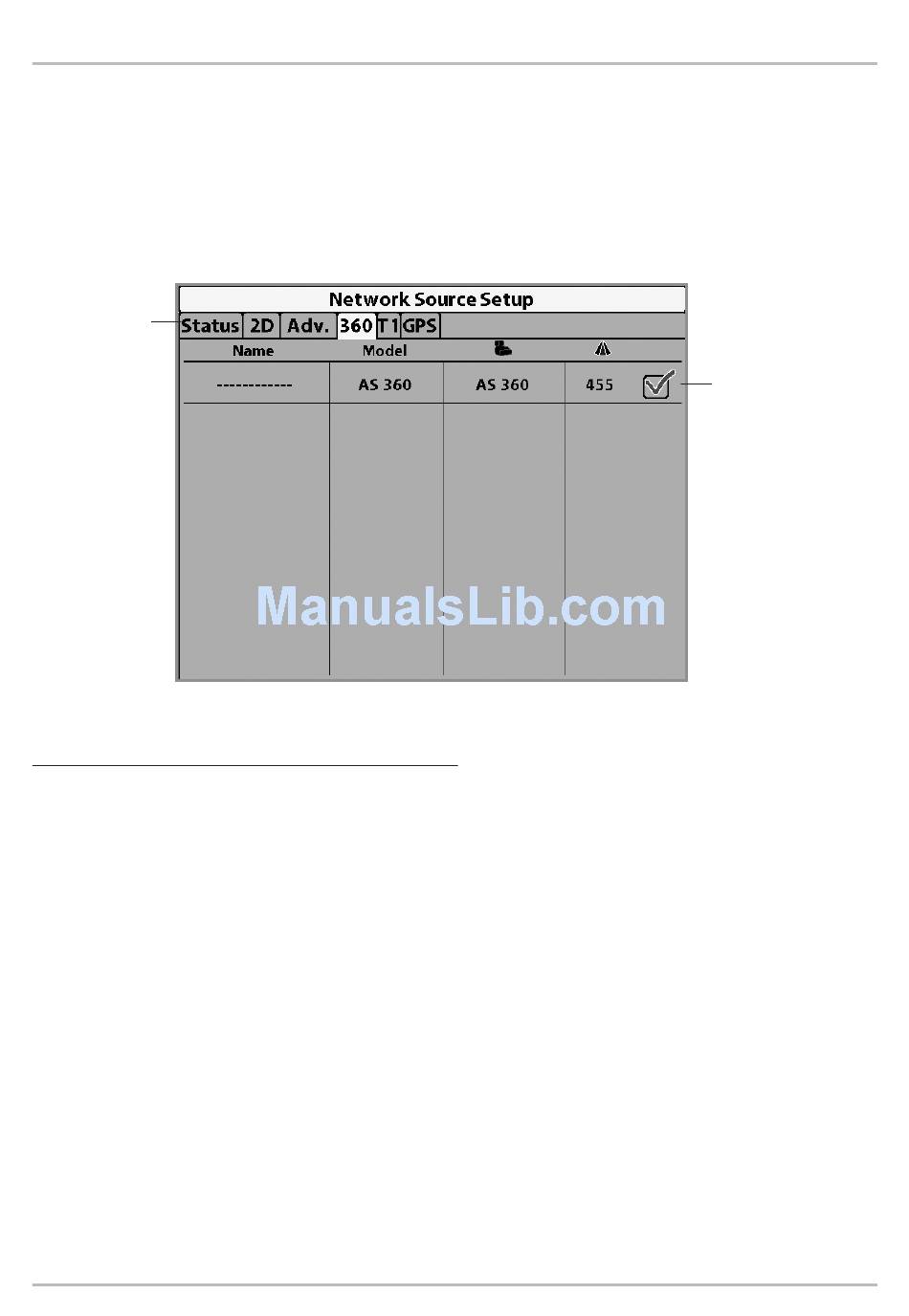

1. Select 360 Imaging™ on the Network
Confirm that AS 360 is selected in the Network Source Setup dialog box. It might
take up to a minute for the equipment to be detected.
NOTE: If AS 360 is already selected (indicated by a check mark), you can skip this step.
Proceed to Set the Deployment Depth.
1. Main Menu: Press the MENU key once.
2. Select the Network tab > Network Source Setup. Press the RIGHT Cursor
key.
3. Select the 360 tab from the Network Source Setup dialog box.
4. Select AS 360 from the transducer list. Press the RIGHT Cursor key. A
checkmark will display in the box to show it is selected.
5. Press the EXIT key until the dialog box is closed.
Installation - Set up the Control Head
Selecting the 360 Imaging™ Transducer
34
Use the 4-WAY
Cursor Control
key to choose the
transducer, and
press the RIGHT
Cursor key or the
CHECK/INFO key
to select it.
