| Install the Transom Bracket

1. Confirm that the boat is level on the trailer, both from port to starboard and
from bow to stern, by placing your level on the deck of the boat, first in one
direction, then in the other.
2. Position the transom bracket in your selected location. Use a level to confirm
the bracket is level horizontally.

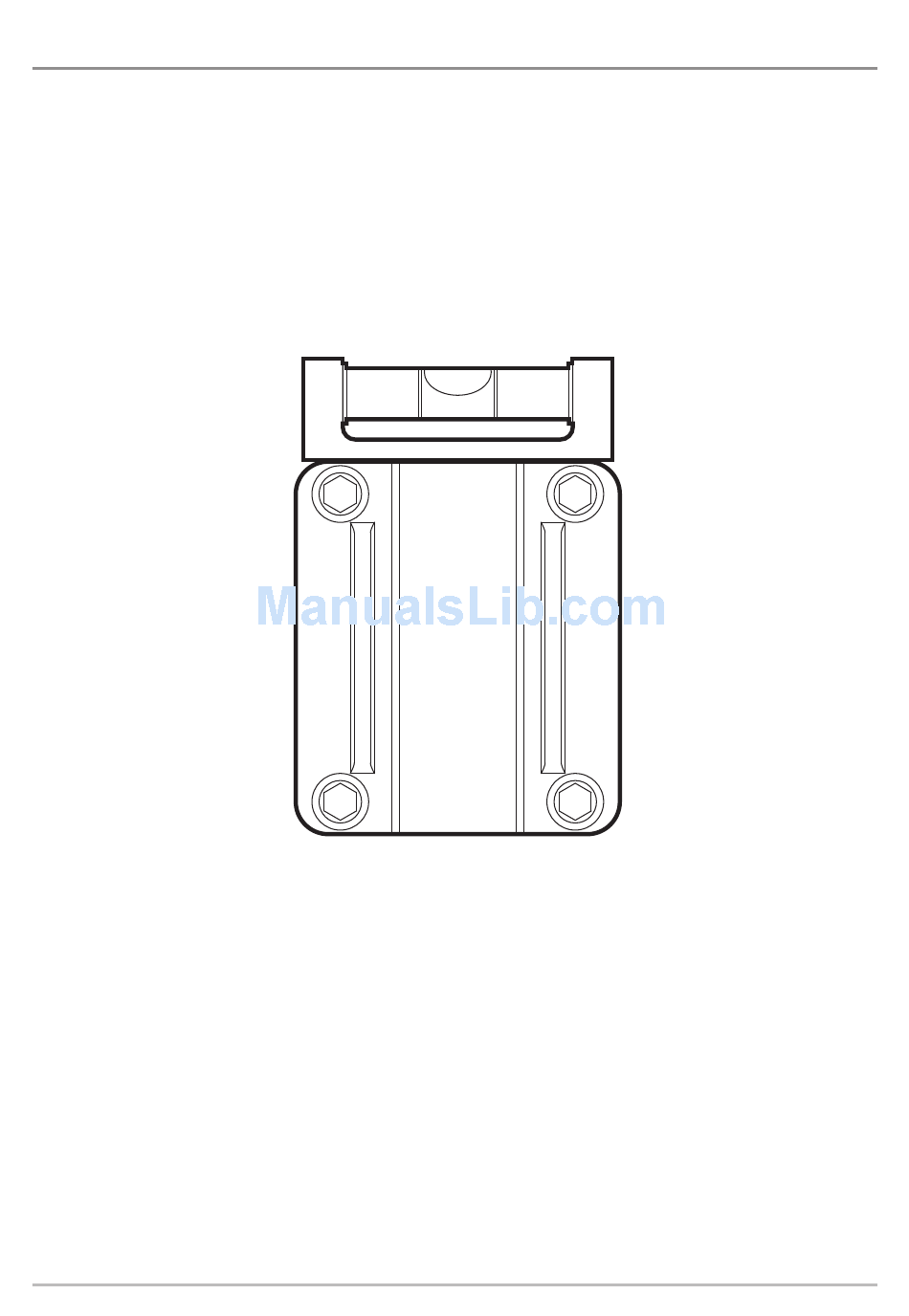

Leveling the Transom Bracket in the Selected Mounting Location
3. Mark the bracket mounting holes.
4. Make sure the drill bit is perpendicular to the transom, NOT parallel to the
ground, before you drill. Use a 5/16" (8 mm) drill bit to drill the four marked
holes.
5. Apply a 1/8" (3 mm) bead of 3M 5200 Marine Adhesive Sealant around each
of the four drilled holes and to the the perimeter of the transom bracket,
staying approximately ½" (1.3 cm) from the outside edge.
