Install The Sensor - Humminbird 360 Imaging Installation Manual

2. Install the Sensor

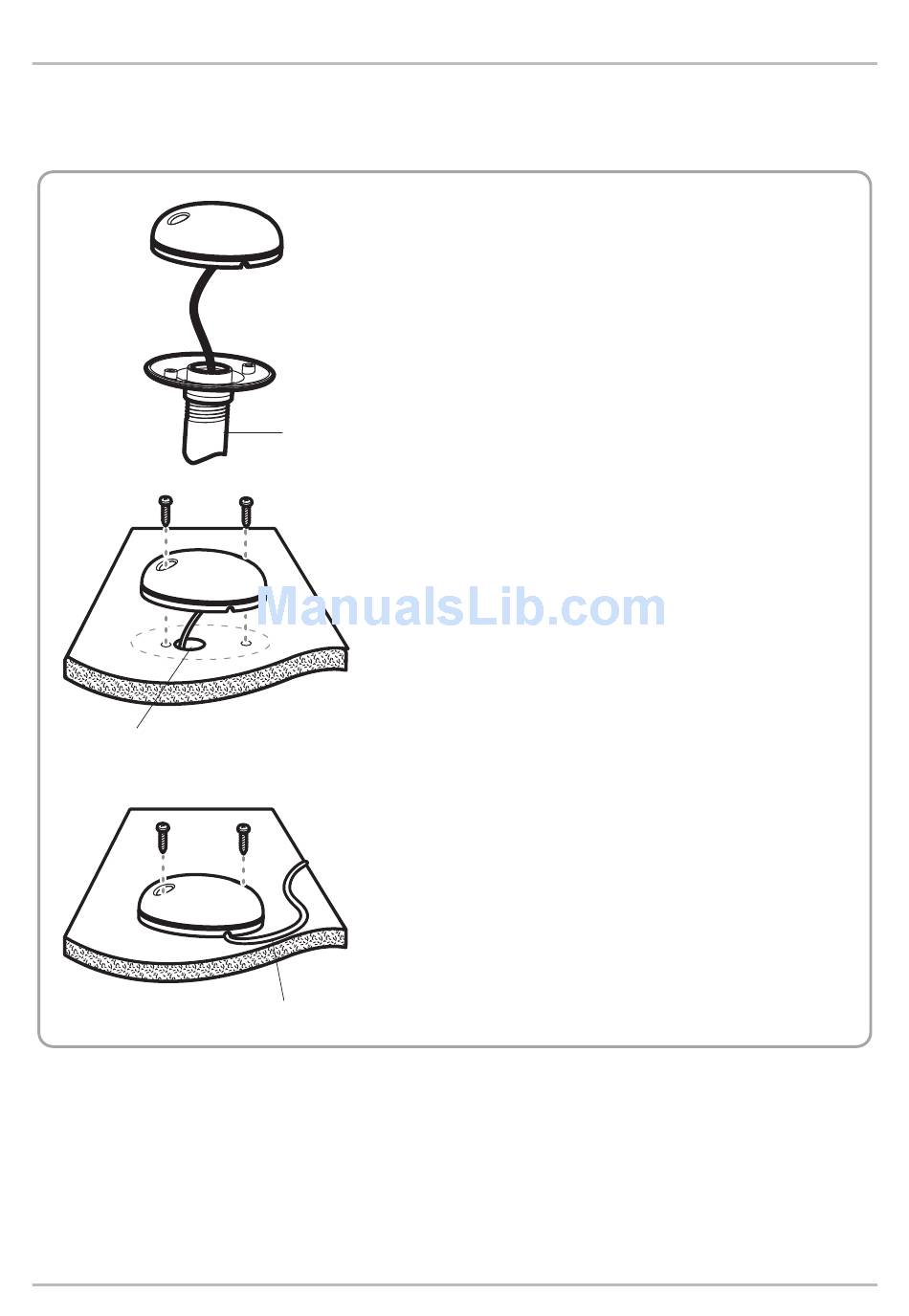

There are three different options to mount the sensor. Proceed to the section that
matches the type of mounting location you will be using, as follows:
Cable routed through the hole
Cable routed to the side
Stem Mount with 1" - 14 Thread
The Sensor will be mounted on a stem or
antenna pole. Proceed to Section A.
Stem
Access Under the Mounting Deck
The Sensor will be deck mounted and the
cable can be routed down through the
mounting surface. Proceed to Section B.
NO Access Under the Mounting Deck
The Sensor will be deck mounted and the
cable must routed to the side because there is
not space for a cable through or underneath
the mounting location. Proceed to Section C.
