5. Make sure the Sensor is flush against the surface, and mark the two
mounting holes with a pencil or awl.
6. Move the Sensor to the side and drill two pilot holes, using a 5/32"
(4 mm) bit.
NOTE: Apply marine-grade silicone caulk or sealant to both screw and drilled holes as
needed to protect your boat from water damage.
7. Align the Sensor's screw holes over the pilot screw holes and attach with the
#6 - 3/4" Phillips head screws. Hand tighten only.
NOTE: If the mounting surface is thin or made of a light-weight material, you may
need to add reinforcing material below the mounting surface in order to support the
Sensor.

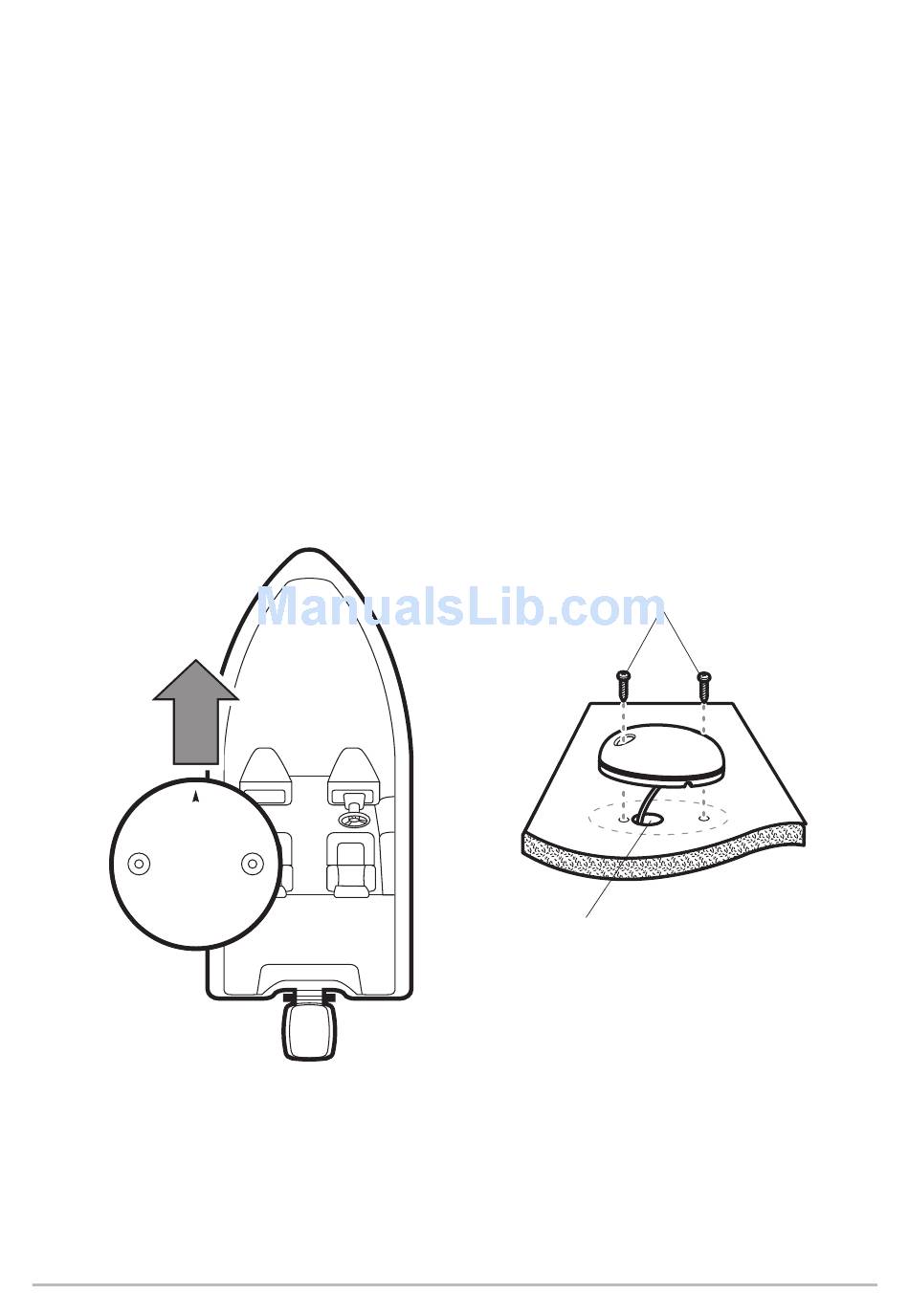

Positioning the Arrow
on the Sensor
Attaching the Sensor to the
Mounting Surface
Mounting Screws
Cable routed through the hole
11
#6 - 3/4
Installation - GPS/Heading Sensor
