Product Description

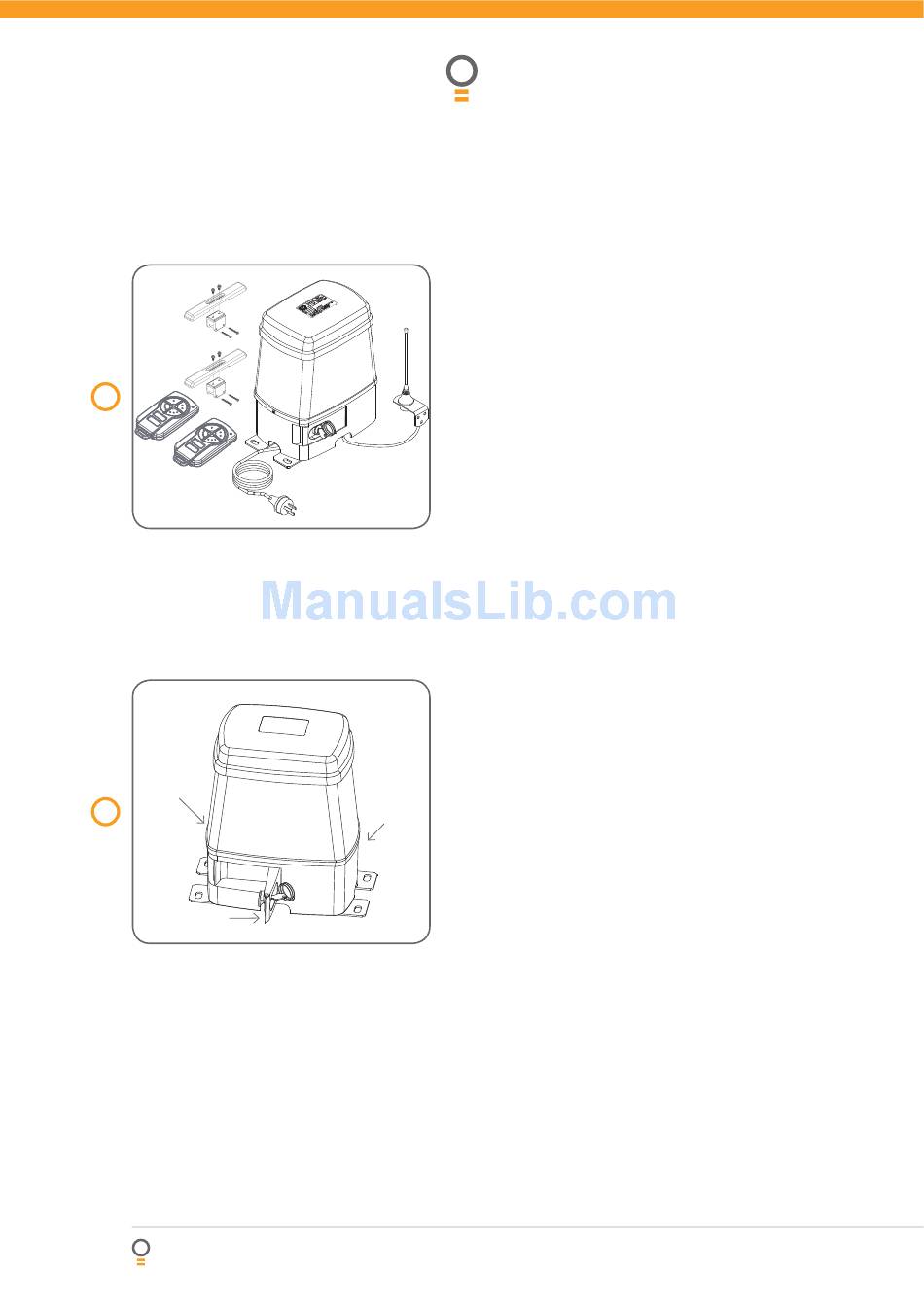

fi g 01

Drive Unit Installation

Cover
fi g 02 release
screw
Disengage lever
8 NeoSlider™ - Sliding Gate Opener NES-24V1
The Automatic Technology NeoSlider™ sliding gate
opener kit consists of one (1) drive unit with integrated
controller, two (2) handheld PTX-5 TrioCode®
transmitters, a pre-wired antenna ready for mounting
on the fence-line and two (2) limits actuators. (Fig. 01).
Integrated Controller
The integrated controller is able to control a single
leaf gate. An outdoor type 240V AC power outlet is
required to power the system.
Mechanical Drive Unit
The drive unit consists of a powerful 24V DC motor,
rugged gearbox and limits assembly combined with a
key lockable manual release lever. When installed with
suitable cable glands, the NeoSlider™ meets the IP33
standard for preventing ingress of water.
The Automatic Technology NeoSlider™ sliding gate
opener is designed to operate most residential sliding
gates. The gates must be in good working condition
and should operate freely by hand.
Initial Checking
Before commencing installation of the NeoSlider™,
check the following:
Cover
1. The gate moves freely and easily by hand for the full
release
opening and closing travel.
screw
2. The mounting point must be solidy constructed,
e.g concrete, brick or steel, and must be capable of
withstanding the full force applied to the gate.
3. Select a suitable location for mounting the drive
unit. This position is usually established by fully
opening the gate and mounting the drive unit within
a suitable distance of the gate edge.
4. A weather-proof 240v 10 amp power outlet must
be located within one (1) metre of the NeoSlider™
mounting point.
5. If PE beams are to be installed, provision for
underground cabling should be made from one side
of the gateway to the other.
Owner Installation Instructions
