PANEL DESCRIPTION

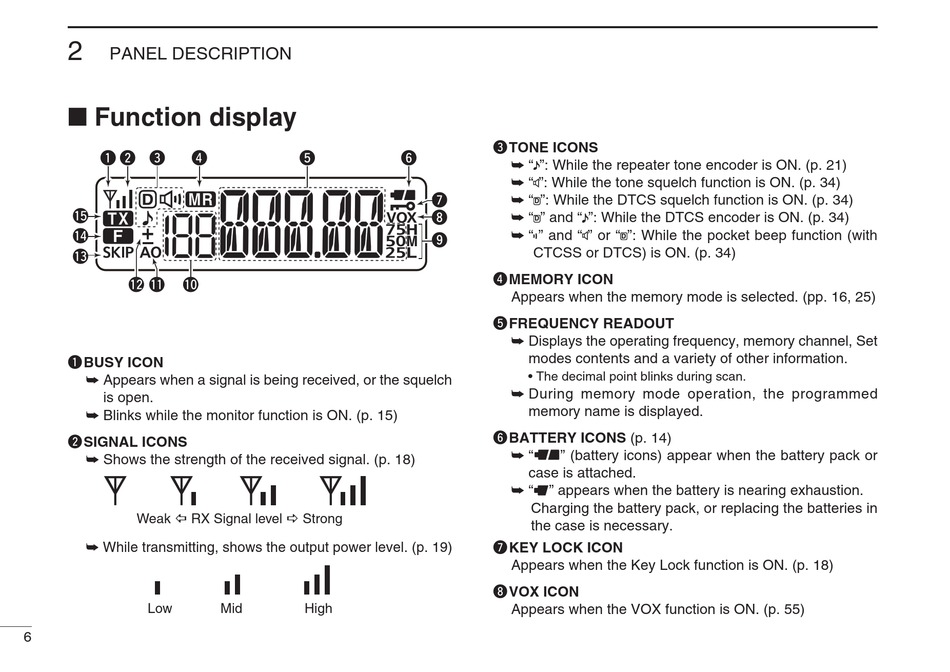

■ Function display

q w e r
!5
!4
!3
!2 !1 !0
q BUSY ICON
➥ Appears when a signal is being received, or the squelch
is open.
➥ Blinks while the monitor function is ON. (p. 15)
w SIGNAL ICONS
➥ Shows the strength of the received signal. (p. 18)
Weak � RX Signal level � Strong
➥ While transmitting, shows the output power level. (p. 19)
Low
6
t
Mid High
e TONE ICONS
y
➥ " ": While the repeater tone encoder is ON. (p. 21)
➥ " ": While the tone squelch function is ON. (p. 34)
➥ " ": While the DTCS squelch function is ON. (p. 34)
u
D
i ➥ " " and " ": While the DTCS encoder is ON. (p. 34)
D
➥ " " and " " or "
o
CTCSS or DTCS) is ON. (p. 34)
r MEMORY ICON
Appears when the memory mode is selected. (pp. 16, 25)
t FREQUENCY READOUT
➥ Displays the operating frequency, memory channel, Set
modes contents and a variety of other information.
• The decimal point blinks during scan.
➥ During memory mode operation, the programmed
memory name is displayed.
y BATTERY ICONS (p. 14)
➥ " " (battery icons) appear when the battery pack or
case is attached.
➥ " " appears when the battery is nearing exhaustion.
Charging the battery pack, or replacing the batteries in
the case is necessary.
u KEY LOCK ICON
Appears when the Key Lock function is ON. (p. 18)
i VOX ICON
Appears when the VOX function is ON. (p. 55)
": While the pocket beep function (with
D
