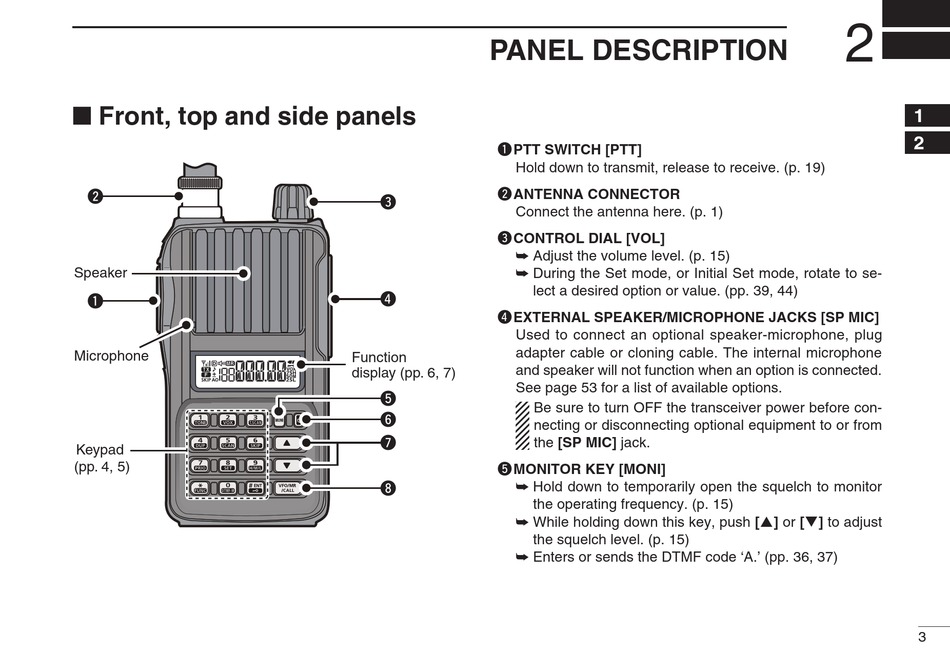

■ Front, top and side panels

w
Speaker
q
Microphone
Keypad
(pp. 4, 5)

PANEL DESCRIPTION

q PTT SWITCH [PTT]
Hold down to transmit, release to receive. (p. 19)
w ANTENNA CONNECTOR
e
Connect the antenna here. (p. 1)
e CONTROL DIAL [VOL]
➥ Adjust the volume level. (p. 15)
➥ During the Set mode, or Initial Set mode, rotate to se-
r
r EXTERNAL SPEAKER/MICROPHONE JACKS [SP MIC]
Used to connect an optional speaker-microphone, plug
adapter cable or cloning cable. The internal microphone
Function
and speaker will not function when an option is connected.
display (pp. 6, 7)
See page 53 for a list of available options.
t
y
u
t MONITOR KEY [MONI]
➥ Hold down to temporarily open the squelch to monitor
i
➥ While holding down this key, push [p] or [q] to adjust
➥ Enters or sends the DTMF code 'A.' (pp. 36, 37)
lect a desired option or value. (pp. 39, 44)
Be sure to turn OFF the transceiver power before con-
necting or disconnecting optional equipment to or from
the [SP MIC] jack.
the operating frequency. (p. 15)
the squelch level. (p. 15)
