2

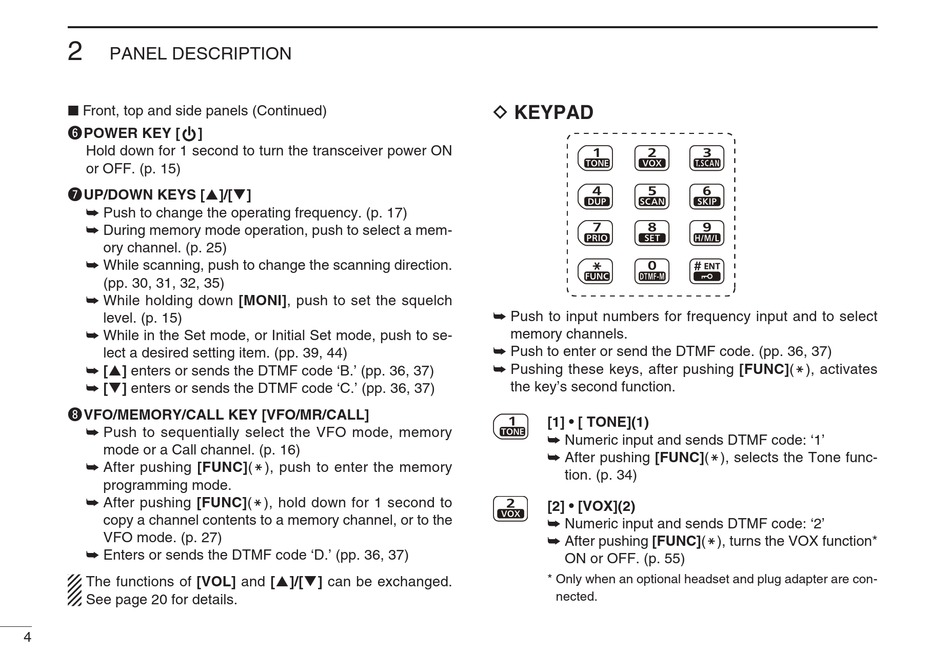

PANEL DESCRIPTION
■ Front, top and side panels (Continued)
y POWER KEY [ ]
Hold down for 1 second to turn the transceiver power ON
or OFF. (p. 15)
u UP/DOWN KEYS [p]/[q]
➥ Push to change the operating frequency. (p. 17)
➥ During memory mode operation, push to select a mem-
ory channel. (p. 25)
➥ While scanning, push to change the scanning direction.
(pp. 30, 31, 32, 35)
➥ While holding down [MONI], push to set the squelch
level. (p. 15)
➥ While in the Set mode, or Initial Set mode, push to se-
lect a desired setting item. (pp. 39, 44)
➥ [p] enters or sends the DTMF code 'B.' (pp. 36, 37)
➥ [q] enters or sends the DTMF code 'C.' (pp. 36, 37)
i VFO/MEMORY/CALL KEY [VFO/MR/CALL]
➥ Push to sequentially select the VFO mode, memory
mode or a Call channel. (p. 16)
➥ After pushing [FUNC](M), push to enter the memory
programming mode.
➥ After pushing [FUNC](M), hold down for 1 second to
copy a channel contents to a memory channel, or to the
VFO mode. (p. 27)
➥ Enters or sends the DTMF code 'D.' (pp. 36, 37)
The functions of [VOL] and [p]/[q] can be exchanged.
See page 20 for details.
4
D KEYPAD
➥ Push to input numbers for frequency input and to select
memory channels.
➥ Push to enter or send the DTMF code. (pp. 36, 37)
➥ Pushing these keys, after pushing [FUNC](M), activates
the key's second function.
[1] • [ TONE](1)
➥ Numeric input and sends DTMF code: '1'
➥ After pushing [FUNC](M), selects the Tone func-
tion. (p. 34)
[2] • [VOX](2)
➥ Numeric input and sends DTMF code: '2'
➥ After pushing [FUNC](M), turns the VOX function*
ON or OFF. (p. 55)
* Only when an optional headset and plug adapter are con-
nected.
