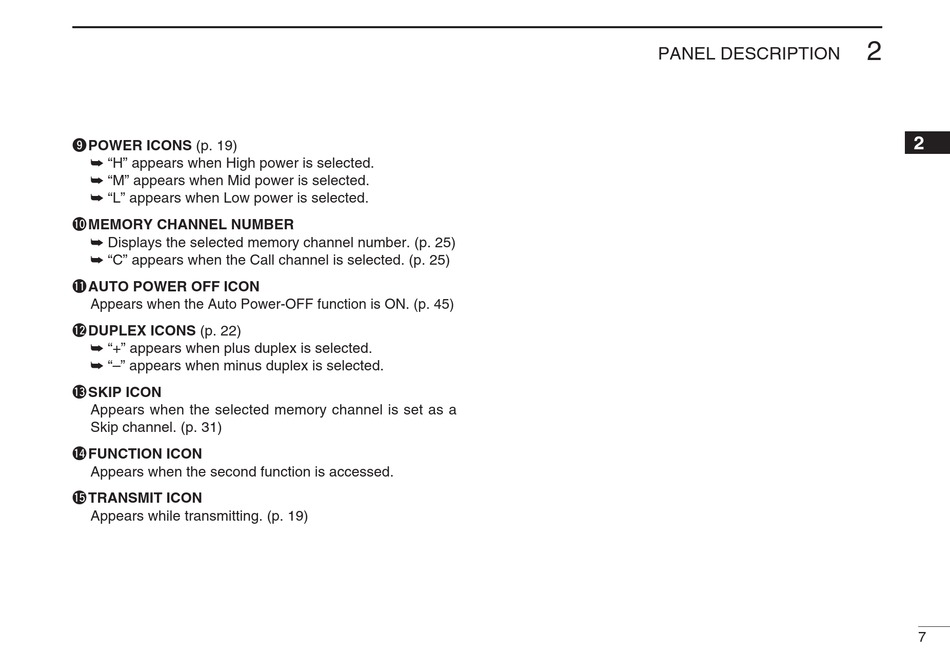

Panel Description - Icom ic-U80 Instruction Manual

o POWER ICONS (p. 19)
➥ " H" appears when High power is selected.
➥ " M" appears when Mid power is selected.
➥ " L" appears when Low power is selected.
!0 MEMORY CHANNEL NUMBER
➥ Displays the selected memory channel number. (p. 25)
➥ "C" appears when the Call channel is selected. (p. 25)
!1 AUTO POWER OFF ICON
Appears when the Auto Power-OFF function is ON. (p. 45)
!2 DUPLEX ICONS (p. 22)
➥ "+" appears when plus duplex is selected.
➥ "–" appears when minus duplex is selected.
!3 SKIP ICON
Appears when the selected memory channel is set as a
Skip channel. (p. 31)
!4 FUNCTION ICON
Appears when the second function is accessed.
!5 TRANSMIT ICON
Appears while transmitting. (p. 19)

PANEL DESCRIPTION
