11

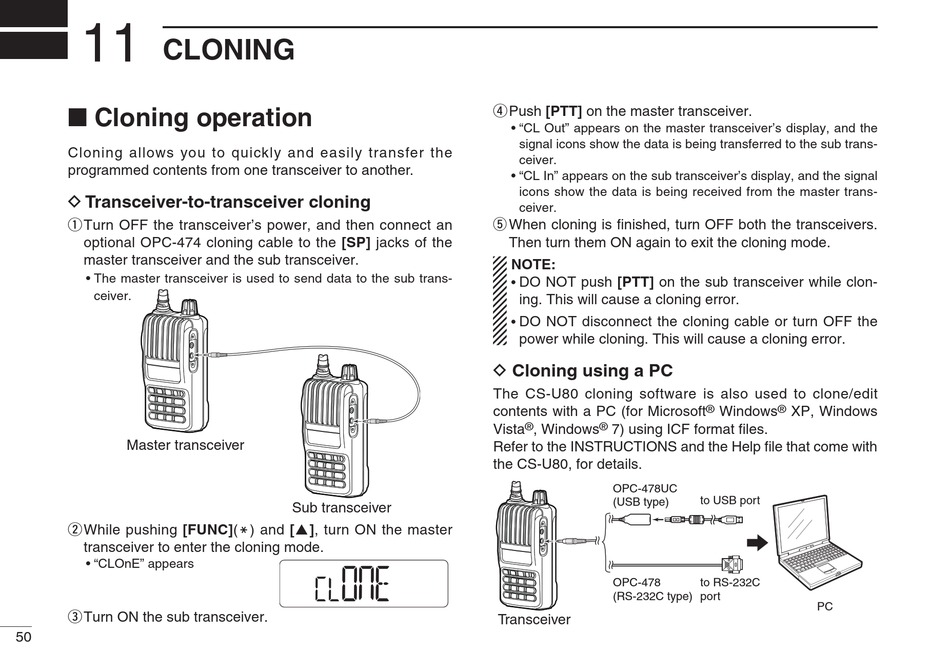

CLONING

■ Cloning operation

Cloning allows you to quickly and easily transfer the
programmed contents from one transceiver to another.
D Transceiver-to-transceiver cloning
q Turn OFF the transceiver's power, and then connect an
optional OPC-474 cloning cable to the [SP] jacks of the
master transceiver and the sub transceiver.
• The master transceiver is used to send data to the sub trans-
ceiver.
Master transceiver
w While pushing [FUNC](M) and [p], turn ON the master
transceiver to enter the cloning mode.
• "CLOnE" appears
e Turn ON the sub transceiver.
50
Sub transceiver
r Push [PTT] on the master transceiver.
• "CL Out" appears on the master transceiver's display, and the
signal icons show the data is being transferred to the sub trans-
ceiver.
• "CL In" appears on the sub transceiver's display, and the signal
icons show the data is being received from the master trans-
ceiver.
t When cloning is finished, turn OFF both the transceivers.
Then turn them ON again to exit the cloning mode.
NOTE:
DO NOT push [PTT] on the sub transceiver while clon-
•
ing. This will cause a cloning error.
DO NOT disconnect the cloning cable or turn OFF the
•
power while cloning. This will cause a cloning error.
D Cloning using a PC
The CS-U80 cloning software is also used to clone/edit
contents with a PC (for Microsoft
Vista ® , Windows ® 7) using ICF format files.
Refer to the INSTRUCTIONS and the Help file that come with
the CS-U80, for details.
OPC-478UC
(USB type)
OPC-478
(RS-232C type)
Transceiver
® ®
Windows XP, Windows
to USB port
to RS-232C
port
PC
