BATTERY CHARGING

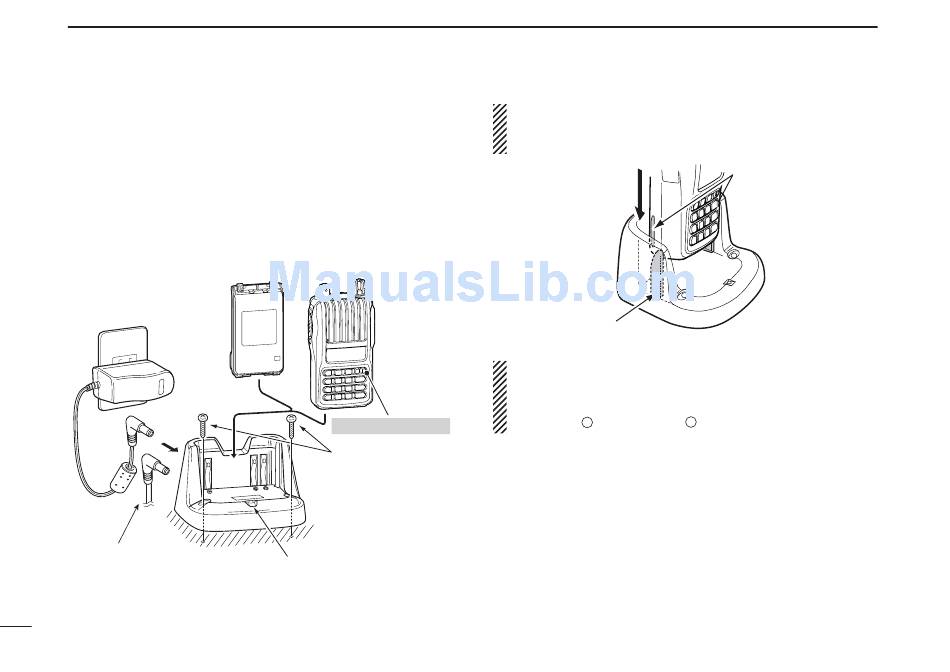

D Using the BC-193 to rapid charge the BP-265
The BC-193 provides rapid charging of only the BP-265 Li-
ion battery pack. Never use it to charge any other battery
pack.
Charging time: Approximately 2.5 hours
The following item is additionally required:
• An AC adapter (not supplied with some versions) or the OPC-515L
or CP-23L DC power cable.
AC adapter
(A different type, or no AC
adapter is supplied, de-
pending on the version.)
The optional OPC-515L
(for DC power source)
or CP-23L (for 12 V
cigarette lighter socket)
can be used instead of
the AC adapter.
12
Battery pack Transceiver
Turn OFF the power
Screws*
(Self tapping screw:
3.5 × at least 30 mm)
*Purchase separately.
Using screws
recommended
secure the charger.
Charge indicator
• Lights orange : While charging
• Lights green : Charging is completed.
IMPORTANT: Battery charging caution
Ensure the tabs on the battery pack are correctly aligned
with the guide rails inside the charger.
Guide rail
CAUTION: When using the OPC-515L DC power cable
NEVER connect the OPC-515L to a power source using
reverse polarity. This will ruin the battery charger.
White line: +
is
to
Tabs
Black line: –
