1

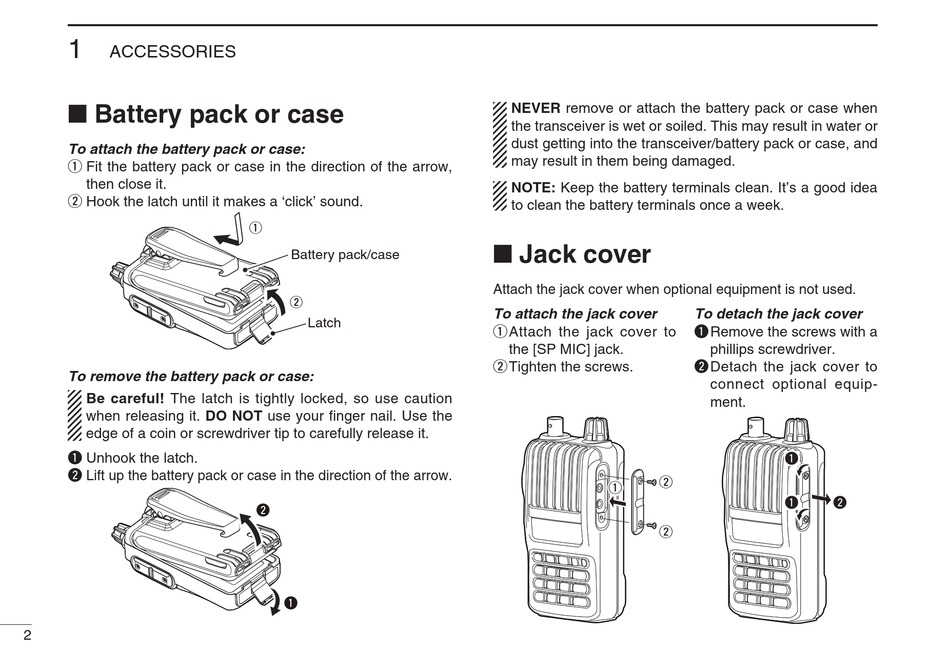

ACCESSORIES

■ Battery pack or case

To attach the battery pack or case:
q Fit the battery pack or case in the direction of the arrow,
then close it.
w Hook the latch until it makes a 'click' sound.
To remove the battery pack or case:
Be careful! The latch is tightly locked, so use caution
when releasing it. DO NOT use your finger nail. Use the
edge of a coin or screwdriver tip to carefully release it.
q Unhook the latch.
w Lift up the battery pack or case in the direction of the arrow.
2
q
Battery pack/case
w
Latch
w
q
NEVER remove or attach the battery pack or case when
the transceiver is wet or soiled. This may result in water or
dust getting into the transceiver/battery pack or case, and
may result in them being damaged.
NOTE: Keep the battery terminals clean. It's a good idea
to clean the battery terminals once a week.

■ Jack cover

Attach the jack cover when optional equipment is not used.
To attach the jack cover
q Attach the jack cover to
the [SP MIC] jack.
w Tighten the screws.
w
q
w
To detach the jack cover
q Remove the screws with a
phillips screwdriver.
w Detach the jack cover to
connect optional equip-
ment.
q
q w
