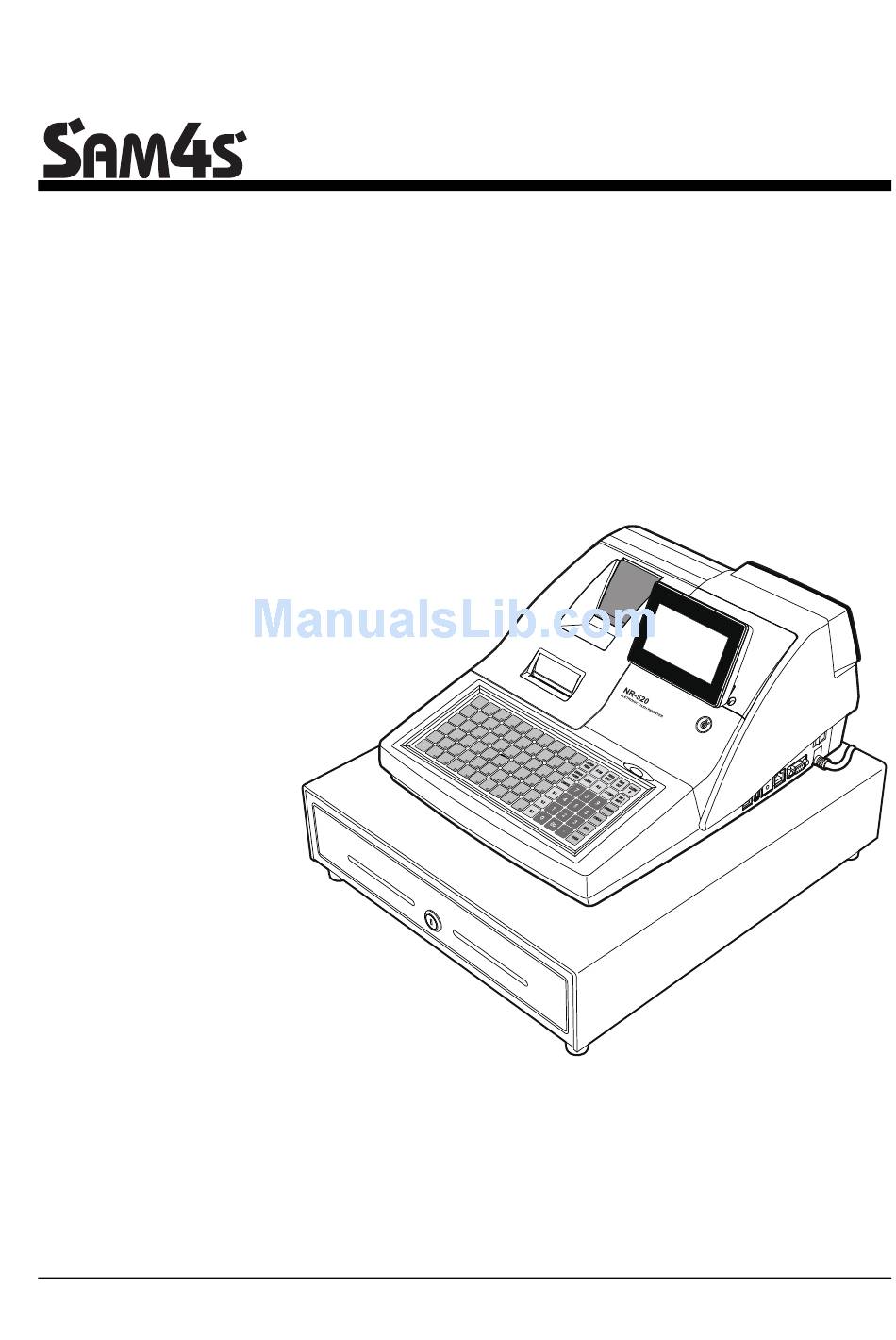

SAM4S NR-500 Series Electronic Cash Register
Operating and

Programming Manual

All specifications are subject to change without notice.
