Overview
Chapter
Copier Parts and Accessories (Options)
1
2
3

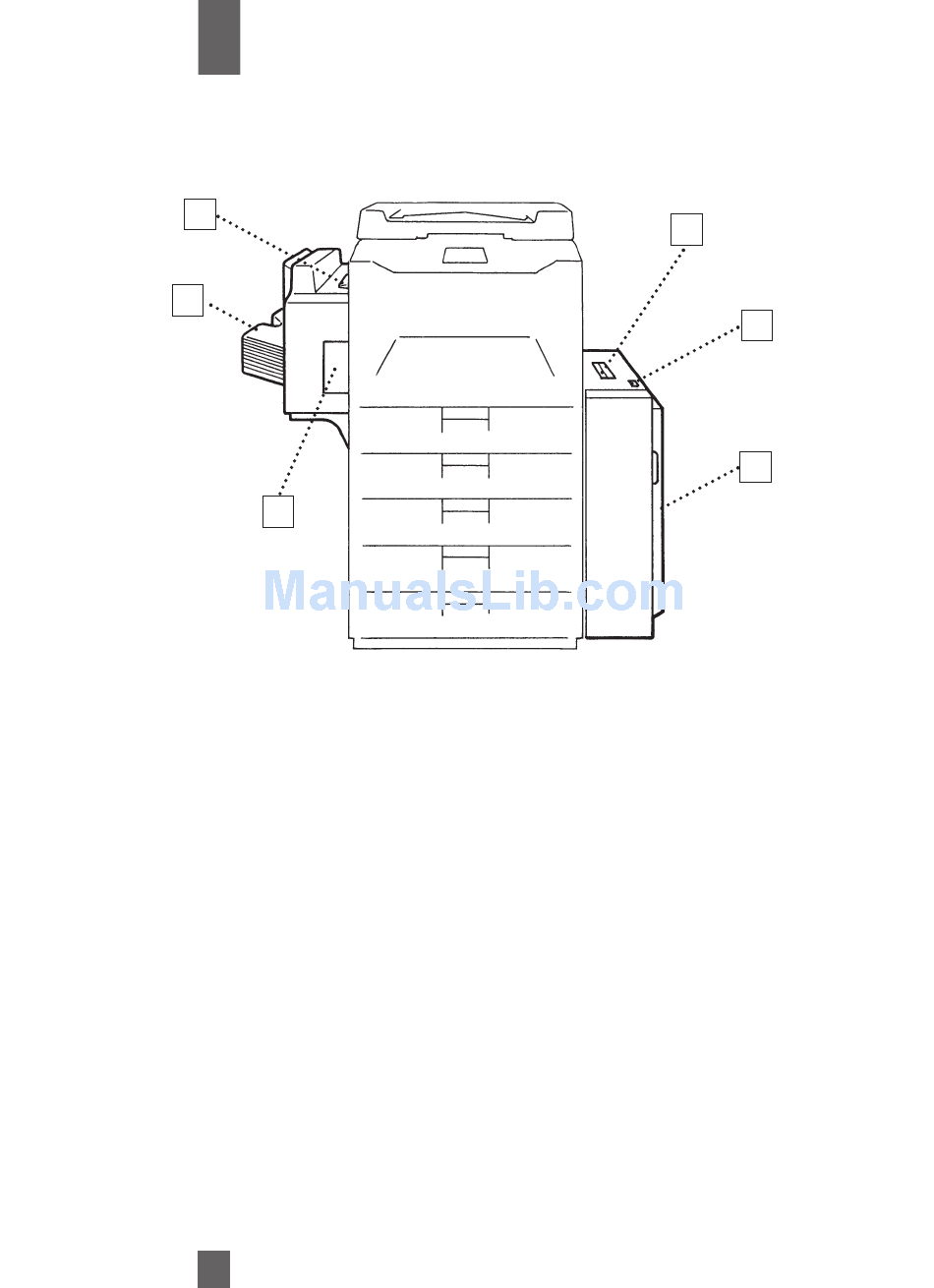

10- Bin Staple Sorter
1
1
Lock Release Lever
2
2
Sort Bin
3
3
Staple Door
Large Capacity Cassette
4
4
Lock Release Lever
5
5
Paper Plate Descent Key
6
6
Cassette Door
15
: Press to unlock the sorter. p.>>
: Hold sorted or copies
: Open to replace the staple Cartridge.
: Use to unlock the Cassette when clearing a misfed
sheet of paper or other service job.
: Press to lower the paper plate.
: Open to add paper or clear a misfed sheet of paper.
4
5
6
