Copier Parts And Accessories - imagistics C400 Operating Manual

2
Overview
Chapter

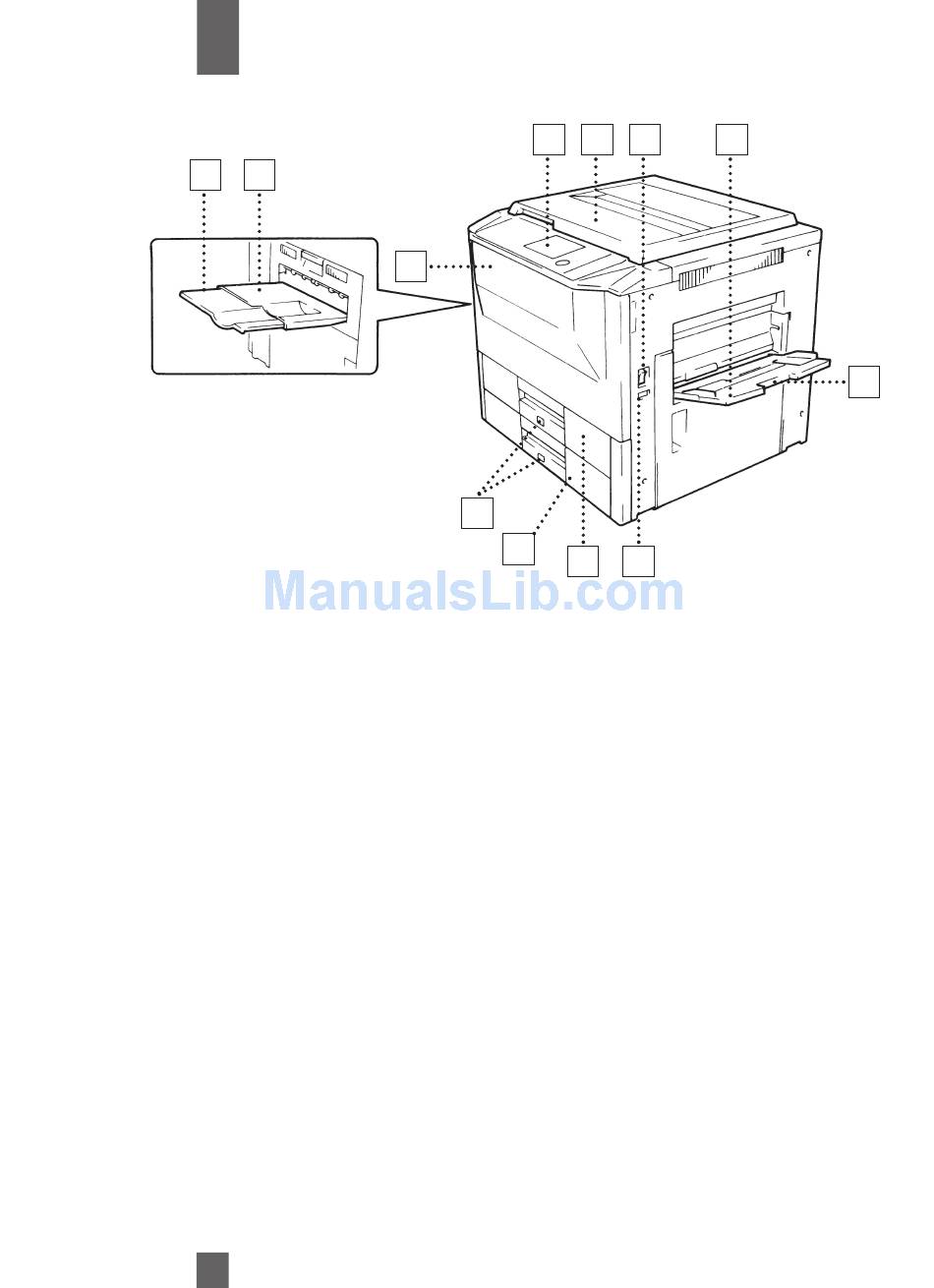

Copier Parts and Accessories (Outside)
1 2
1
1
Exit Tray Extender
2
2
Exit Tray
3
3
Front Door
4
4
Control Panel
5
5
Original Cover
<Option>
6
6
Power Switch
7
7
Multi Bypass Tray
8
8
Multi Bypass Extender
9
9
Total Counter
10
10
1st Drawer
11
11
2nd Drawer
12
12
Paper Descent Key
10
4
3
12
11
: Slide this extender out when makings copies on large-
size paper.
: Holds copies fed out of the copier.
: Open to:
•Replace the toner Bottle. p.108
•Clear paper misfeed. p. 115
•Clean the Corona Unit. P. 141
: Closing the front Door after a misfeed has been cleared
will turn the misfeed warning message on the control
panel OFF.
: Use to start a copy cycle or to make coping job settings
SEE Control Panel Keys and Touch Panel. P. 16
: Holds the original placed on the Original Glass in
position. p. 29
: Use to turn the copier ON and OFF. P. 20
: Use for manual feeding of copy paper into the copier.
p.32
: Slide the Extender out to make copier on large-size copy
paper.
: Shows the total number of copies made so far.
: Holds up to 550 sheets of copy paper. p. 102
: Holds up to 550 sheets of copy paper. p.103 It can
accommodate paper of different sizes.
: Press before sliding the Drawer out of the copier.
5 6 7
10 9
8
