Install The Rackmount Hardware - Sun Oracle SPARC T4-4 Installation Manual

1. Ensure that there is enough vertical space in the cabinet to install the server.

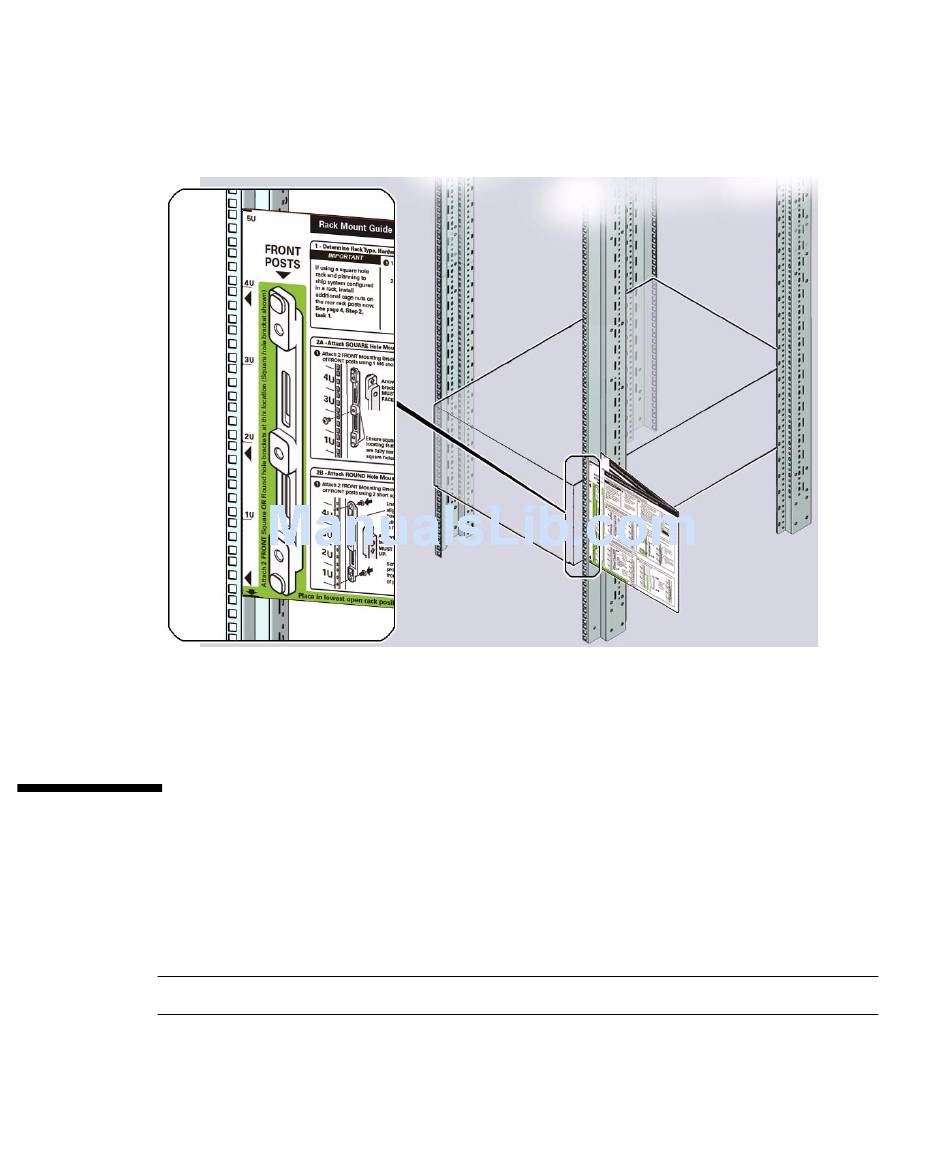

2. Place the rackmounting template against the front rails.
The bottom edge of the template corresponds to the bottom edge of the server.
Measure up from the bottom of the template.
3. Mark the mounting holes for the front shelf rails.
4. Mark the mounting holes for the rear shelf rails.

▼ Install the Rackmount Hardware

1. Repeat the following steps for both the left and right front mounting points:
a. Place the adaptor bracket in the marked location.
Note – An "up" arrow indicates proper orientation.
b. Secure the adaptor bracket, with one No. 2 Phillips screw in the center hole.
c. Insert a mounting clip in the hole just above the top of the rack rail bracket.
