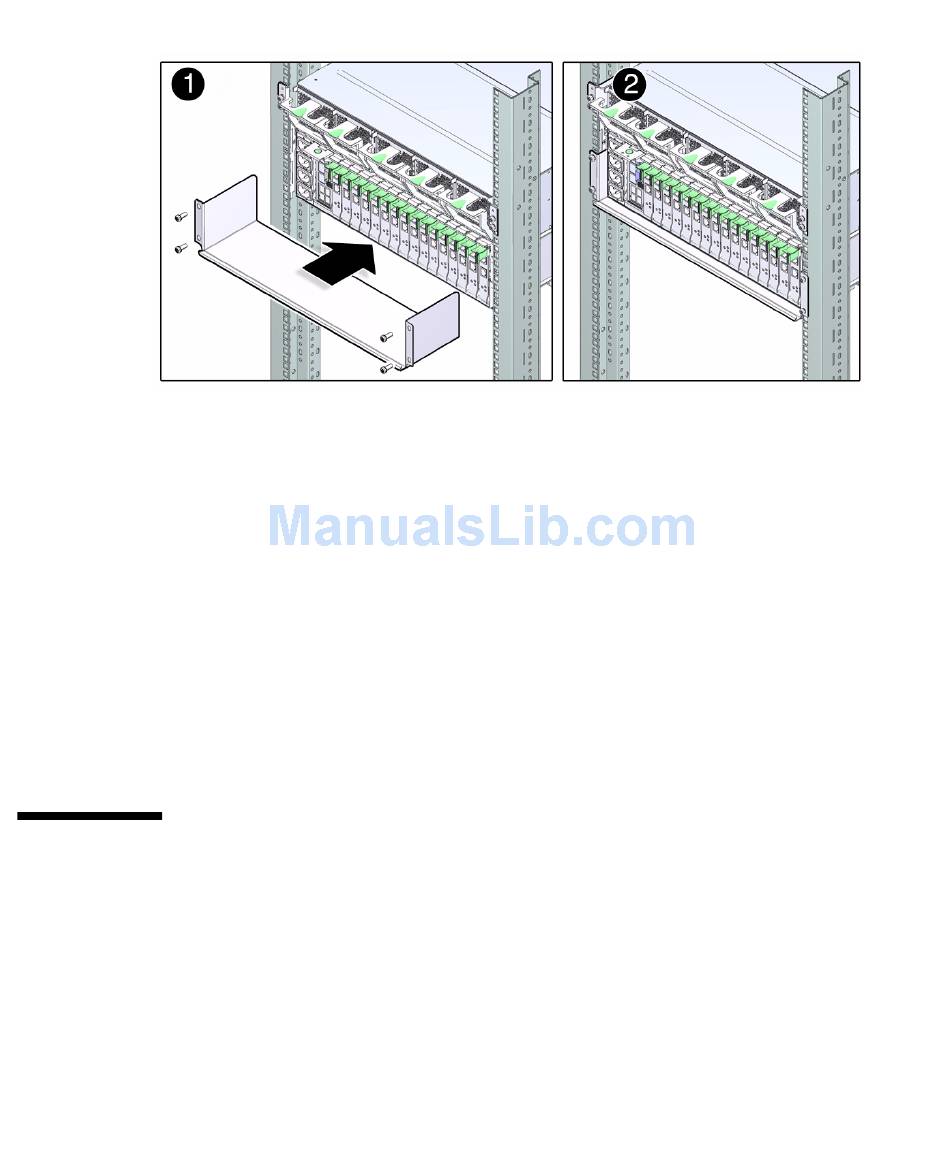

▼ Remove the Front Shipping Bracket

Remove the front shipping bracket after the server cabinet reaches its final
destination.
1. Remove the two short No. 2 Phillips screws that are stored with the shipping
bracket.
2. Remove the two screws that secure the front shipping bracket to the cabinet.
3. Slide the front shipping bracket out from the front of the cabinet.
4. Install the two short No. 2 Phillips screws into the lower two front panel screws.
Use the screws that were stored in the front shipping bracket during transit.

Installing the CMA (Optional)

The cable management assembly (CMA) is an optional kit for managing and routing
power and data cables attached to the back of the server.
This topic includes the following:
"CMA Kit" on page 31
■
"Determine Correct CMA Hardware" on page 31
■
"Install the CMA" on page 32
■
