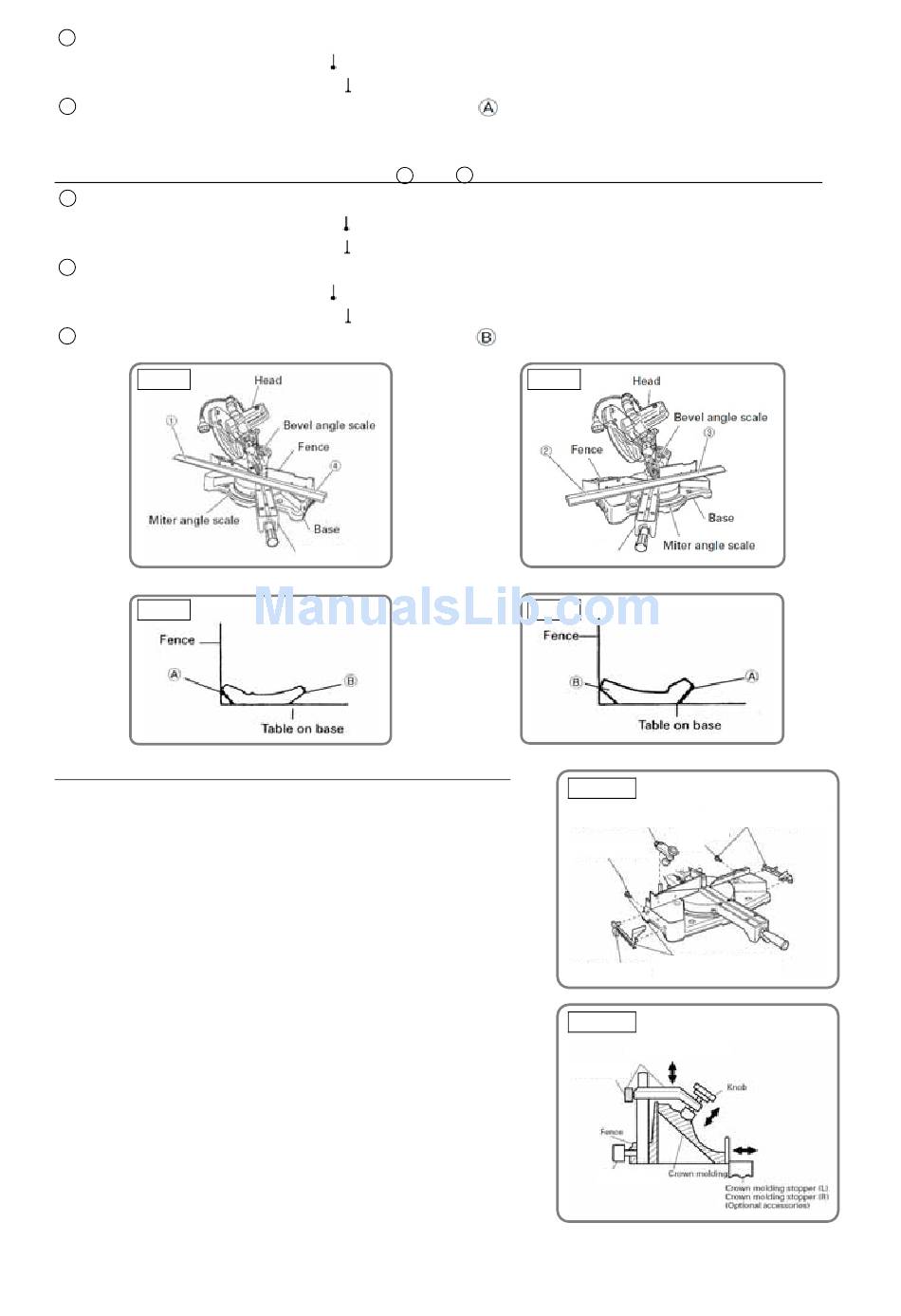

2 Tilt the motor head to the left and set the bevel angle as follows:
* For 45° type crown moldings: 30° ( mark)
* For 38° type crown moldings: 33.9° ( mark)
3 Position the crown molding so that the upper surface (
Fig. 30.
(2) Setting to cut crown moldings at positions 2 and 3 in Fig. 26 (see Fig. 29; tilt the head to the left):
1 Turn the turn table to the left and set the miter angle as follows:
* For 45° type crown moldings: 35.3° ( mark)
* For 38° type crown moldings: 31.6° ( mark)
2 Tilt the head to the left and set the bevel angle as follows:
* For 45° type crown moldings: 30° ( mark)
* For 38° type crown moldings: 33.9° ( mark)
3 Position the crown molding so that the lower surface (
Fig. 28
Fig. 30
Cutting method of crown molding without tilting the saw blade
(1) Crown molding stoppers (L) and (R) (optional accessories)
allow easier cuts of crown molding without tilting the saw
blade. Mount them to both sides the base as shown
in Fig. 32-a. After mounting, tighten the 6 mm knob bolts to
secure the crown molding stoppers.
[Optional accessories used]
• Crown molding vise ass'y (including crown molding stopper (L))
• Crown molding stopper (L)
• Crown molding stopper (R)
(2) The crown molding vise (B) (optional accessory) can be
mounted on either the left fence (fence (B)) or the right
fence (fence (A)). It can unite with the slope of the crown
molding and the vice can be pressed down.
Then turn the upper knob, as necessary, to securely attach
the crown molding in position. To raise or lower the vise
assembly, first loosen the 6 mm knob bolt.
After adjusting the height, firmly tighten the 6 mm wing bolt;
then turn the upper knob, as necessary, to securely attach
the crown molding in position. (see Fig. 32-b)
Turn table
-22-
in Fig. 25) contacts the fence as indicated in
in Fig. 25) contacts the fence as shown in Fig. 31.
Fig. 29
Turn table
Fig. 31
Fig. 32-a
Crown molding vise ass'y
(optional accessory)
6 mm knob bolt
6 mm wing bolt
Fig. 32-b
Crown molding vise ass'y
(optional accessory)
6 mm knob bolt
6 mm wing bolt
Crown molding stopper (R)
(optional accessory)
6 mm knob
bolt
Crown molding stopper (L)
(optional accessory)
