EKF SC2-PRESTO CompactPCI User Manual

Serial cpu card
Hide thumbs Also See for SC2-PRESTO CompactPCI:
Table of Contents

Advertisement

Quick Links

Download this manual

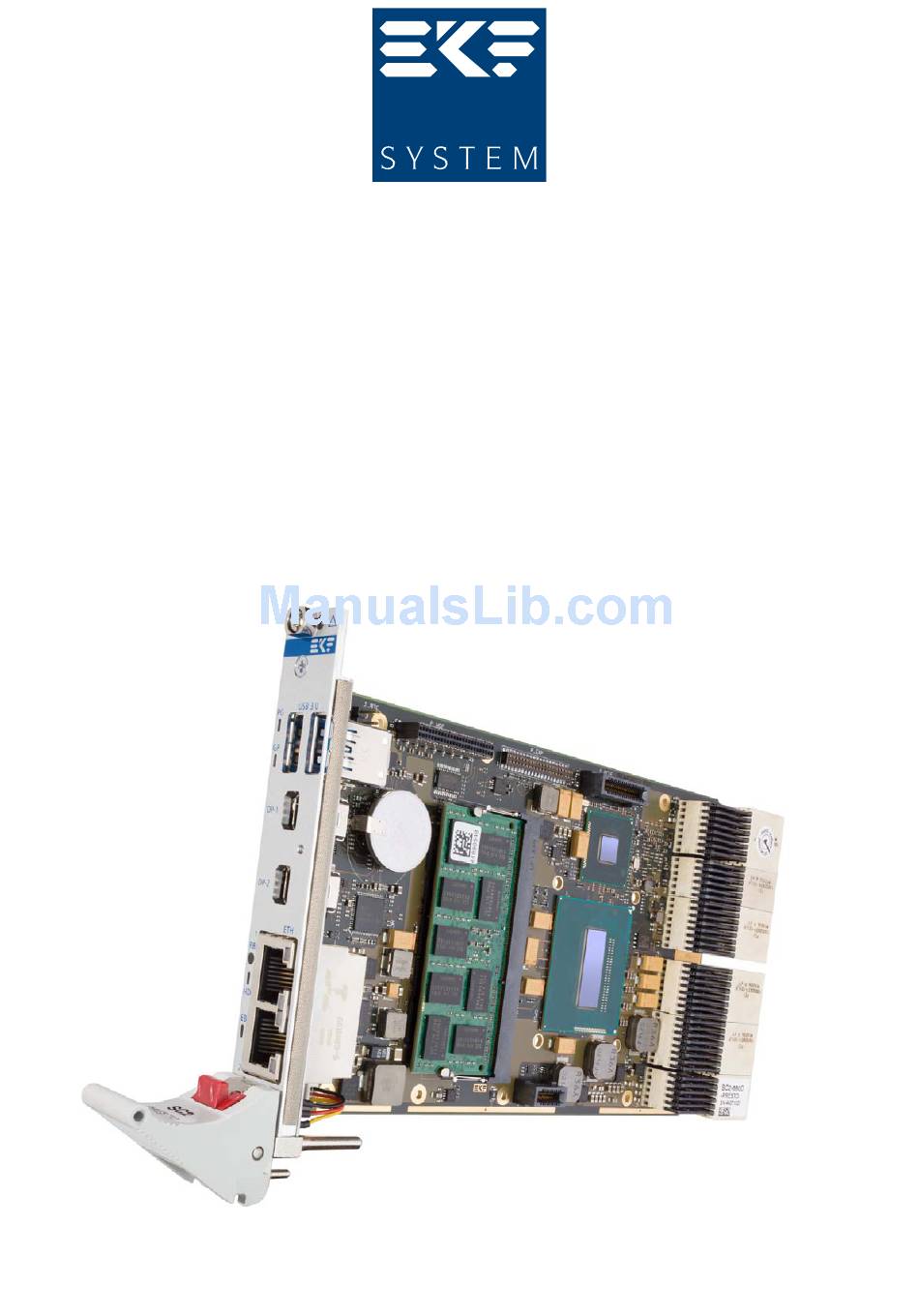

User Guide
®
SC2-PRESTO • CompactPCI
Serial CPU Card
th
®
4
Generation Intel
Core™ Processor (Haswell)
Document No. 7605 • Edition 21 • 7 April 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC2-PRESTO CompactPCI and is the answer not in the manual?

Questions and answers

Related Manuals for EKF SC2-PRESTO CompactPCI

Summary of Contents for EKF SC2-PRESTO CompactPCI

  • Page 1 User Guide ® SC2-PRESTO • CompactPCI Serial CPU Card ® Generation Intel Core™ Processor (Haswell) Document No. 7605 • Edition 21 • 7 April 2015...

  • Page 2: Table Of Contents

    Installing the Board ........... . 46 © EKF...
  • Page 3 Mechanical Drawing ........... 83 © EKF...

  • Page 4: About This Manual

    Updated description of BCSR Control Register 0 2015-02-26 Modified illustration 'Mezzanine Side Card Connectors' (SC2-PRESTO 3 March 2015 connector PCIE is configurable as PCIe 4x1 or 1x4) Updated description of BCSR Status Registers 0 and 1 2015-04-01 Cleaned up section “Watchdog” 2015-04-07 © EKF ekf.com...

  • Page 5: Related Documents

    This manual has been edited as carefully as possible. We apologize for any potential mistake. Information provided herein is designated exclusively to the proficient user (system integrator, engineer). EKF can accept no responsibility for any damage caused by the use of this manual. © EKF...

  • Page 6: Standards

    ® PCI Express® PCI Express Base Specification 3.0 www.pcisig.com SATA Serial ATA 2.5/2.6 Specification www.sata-io.org Serial ATA 3.0 & 3.1 Specification Trusted Platform Module 2.0 www.trustedcomputinggroup.org Universal Serial Bus 3.0 Specification, Revision 1.0 www.usb.org November 12, 2008 © EKF ekf.com...

  • Page 7: Overview

    USB 3.0 and Gigabit Ethernet, or a third video equipped with two very fast MSATA Solid State output. Most mezzanine side cards can Drives (SSD), which is suitable for installation of accommodate in addition a 2.5-inch drive. any popular operating system. © EKF ekf.com...
  • Page 8 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor © EKF ekf.com...

  • Page 9: Technical Features

    Windows® and Linux supported (others on request) Main Memory Integrated memory controller up to 16GB DDR3(L) 1600 +ECC < DDR3(L) +ECC soldered memory up to 8GB < < DDR3(L) +ECC SO-DIMM memory module socket up to 8GB © EKF ekf.com...
  • Page 10 Trusted Platform Module (Option) < TPM 2.0 for highest level of certified platform protection Infineon Optiga™ SLB 9665 cryptographic processor < Conforming to TCG 2.0 specification < < Meets Microsoft Windows 8 boot time and performance criteria © EKF -10- ekf.com...
  • Page 11 DisplayPort F/P connector, RS-232, 2 x USB3, on-board 2.5-Inch SATA SSD or 2 x < M.2/NGFF SATA SSD module sockets 2230 - 2280 Variety of other side cards available < Custom specific side card design < © EKF -11- ekf.com...
  • Page 12 Storage temperature -40°C to +85°C, max. gradient 5°C/min < Humidity 5% ... 95% RH non condensing < < Altitude -300m ... +3000m Shock 15g 0.33ms, 6g 6ms < Vibration 1g 5-2000Hz < < MTBF tbd < EC Regulatory EN55022, EN55024, EN60950-1 (UL60950-1/IEC60950-1) © EKF -12- ekf.com...

  • Page 13: Performance Rating

    (S0 / S3 / S4 / S5) Intel SpeedStep Frequence Modes LFM: Low Frequency Mode, HFM: High Frequency Mode. Add tbd/tbdmA (link only/active) @1Gbps per Ethernet Port. This power supply is optional. It can be left open if not available. © EKF -13- ekf.com...

  • Page 14: Block Diagram

    ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor Block Diagram DDR3 ECC Soldered DDR3 ECC SODIMM www.ekf.com/s/sc2/img/sc2_blk.pdf © EKF -14- ekf.com...

  • Page 15: Top View Component Assembly

    ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor Top View Component Assembly © EKF -15- ekf.com...

  • Page 16: Bottom View Component Assembly

    ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor Bottom View Component Assembly © EKF -16- ekf.com...

  • Page 17: Front Panel Connectors

    LED indicating Backplane Ethernet activity Front Panel Handle with integrated switch (programmable function, power event button by default) General Purpose bicolour LED Bicoloured LED indicating any activity on SATA ports Power Good/Board Healthy bicolour LED System Reset Button (Option) © EKF -17- ekf.com...

  • Page 18: On-Board Connectors & Sockets

    Jumpers DS-P Switches to configure link width and speed on P-PCIE J-GP Jumper to reset UEFI BIOS Setup to EKF Factory Defaults J-MFG Jumper to enter Manufacturing Mode, not populated J-RTC Jumper to reset RTC circuitry (part of PCH), not populated ©...

  • Page 19: Microprocessor

    400-1150 i5-4400E 2.7/3.3 400-1000 40661h SR17M i5-4422E 1.8/2.9 400-900 40661h SR1T1 2002E 1.5/1.5 400-900 40661h SR17P The processors listed are units with long life support. This processor may run with different TDPs configurable by BIOS settings. © EKF -19- ekf.com...

  • Page 20: Thermal Considerations

    (e.g. bottom mount fan unit) is strongly recommended (>20m /h or 2m/s (400LFM) around the CPU slot). Be sure to thoroughly discuss your actual cooling needs with EKF. Generally, the faster the CPU speed the higher its power consumption. For higher ambient temperatures, consider increasing the forced airflow to 3m/s (600LFM) or more.

  • Page 21: Main Memory

    (i.e. the SODIMM socket may be left empty). The contents of the SPD EEPROM on the SODIMM is used by the BIOS at POST (Power-on Self Test) to get any necessary timing parameters to program the memory controller within the chipset. © EKF -21- ekf.com...

  • Page 22: Graphics Subsystem

    The SC2-PRESTO offers two Mini DisplayPort (mDP) interfaces in the front panel. Adapters to convert Mini DisplayPort to any other popular interface standard are available. DisplayPort is fed to the on-board connector P-DP3. EKF expansion boards like PCS-BALLET feature the possibility to gain access to the 3 DisplayPort interface.

  • Page 23: Serial Ata Interface (Sata)

    7, Windows® 8 and Linux. Drivers and software to manage the RAID configuration of the 88SE9230 (Windows® application) is provided by Marvell and can be downloaded from EKF’s website. PCI Express® Interface The SC2-PRESTO is provided with several PCI Express (PCIe) lanes for I/O expansion. Sixteen PCI Express ®...

  • Page 24: Universal Serial Bus (Usb)

    The HD Audio port requires an additional audio codec, as provided e.g. on the PCS-BALLET side card. The LPC bus presents an easy way to add legacy interfaces to the system. EKF offers a variety of mezzanine expansion boards (side cards), to be attached on top of the SC2-PRESTO, featuring all classic Super-I/O functionality, for example the PCS-BALLET.

  • Page 25: Real-Time Clock

    The SPI Flash contents can be updated by a DOS or Linux based tool. This program and the latest SC2-PRESTO BIOS binary are available from the EKF website. Read carefully the enclosed instructions. If the programming procedure fails e.g. caused by a power interruption, the SC2-PRESTO may no more be operable.

  • Page 26: Reset

    The handle within the front panel contains a micro switch that is used to generate a power button event. By pressing the handle's red push button a pulse is triggered. Animated GIF: www.ekf.com/c/ccpu/img/reset_400.gif NOTE: To prevent the board to cause a power button override, the handle should be closed immediately after unlocking the front panel handle.
  • Page 27 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor <4s © EKF -27- ekf.com...

  • Page 28: Watchdog

    Sleep State S4 (Suspend to Disk/Hibernate) GREEN Sleep State S3 (Suspend to RAM/Standby) GREEN RED BLINK After Reset GREEN Board Healthy and in S0 State YELLOW BLINK Front panel handle is unlocked Hardware Failure - Power Fault RED BLINK Software Failure © EKF -28- ekf.com...

  • Page 29: Pg (Power Good) Led

    The yellow part of the HD LED shows activity on any of the 88SE9230 SATA ports. As previously described, the green part of this LED may change its function dependent on the state of the LED PG. © EKF -29- ekf.com...

  • Page 30: Eb (Ethernet Backplane) Led

    PWR_FAIL# signals the possible failure of the main supply voltage +12V. On the SC2-PRESTO the signal PWR_FAIL# is routed to GPIO4 of the QM87 PCH to analyse the state of the power supply unit. © EKF -30- ekf.com...

  • Page 31: Mezzanine Side Board Options

    The SC2-PRESTO is provided with several stacking connectors for attachment of a mezzanine expansion module (aka side board), suitable for a variety of readily available mezzanine cards (please refer to www.ekf.com/c/ccpu/mezz_ovw.pdf for a more comprehensive overview). EKF furthermore offers custom specific development of side boads (please contact sales@ekf.de).
  • Page 32 LPC (Low Pin Count) HD Audio SMBus PCH (buffered) 2 x USB 2.0 P-HSE I/F Type Controller SATA1, SATA2, SATA3 4 x USB 2.0 P-PCIE I/F Type Controller PCI Express® Gen2 1x4 or 4x1 PE Switch © EKF -32- ekf.com...
  • Page 33 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor SC2-PRESTO SC2-PRESTO © EKF -33- ekf.com...
  • Page 34 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor SC2-PRESTO w. C42-SATA Mezzanine Module 4HP Assembly SC2-PRESTO w. C47-MSATA Mezzanine Module 4HP Assembly © EKF -34- ekf.com...
  • Page 35 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor SC2-PRESTO w. C41-CFAST Mezzanine Module 4HP Assembly SC2-PRESTO w. C43-SATA Mezzanine Module 4HP Assembly © EKF -35- ekf.com...
  • Page 36 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor SC2-PRESTO w. SCS-TRUMPET Mezzanine Side Card 8HP Assembly © EKF -36- ekf.com...

  • Page 37: Compactpci ® Serial

    Seven SATA Ports (6 x 6G, 1 x 3G) Two USB 3.0 Ports < Six USB 2.0 Ports < Two Gigabit Ethernet Ports < ® These resources will be distributed on a typical 9-slot CompactPCI Serial backplane as follows: © EKF -37- ekf.com...
  • Page 38 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor Backplane Resources SC2-PRESTO (System Slot Left) www.ekf.com/s/sc2/img/sc2_backplane.pdf © EKF -38- ekf.com...
  • Page 39 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor Backplane Resources SC2-PRESTO (System Slot Right) www.ekf.com/s/sc2/img/sc2_backplane.pdf © EKF -39- ekf.com...

  • Page 40: Peripheral Slot Operation

    Board Hot-Plug Hot-plug of the SC2-PRESTO is not supported, no matter whether it is working as a system controller or satellite board. SC2-PRESTO as System Slot Controller for CompactPCI® Serial Systems (Picture similar) © EKF -40- ekf.com...
  • Page 41 User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor ® Related Documents CompactPCI Serial CompactPCI® Serial Concise Overview www.ekf.com/s/serial_concise.pdf CompactPCI® Serial All You Need to Know www.ekf.com/s/smart_solution.pdf SRS-4401-RACK for up to 8 Peripheral Slot Cards © EKF -41- ekf.com...
  • Page 42 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor CompactPCI® Serial Backplanes 1 + 4 Slots CompactPCI® Serial Backplane © EKF -42- ekf.com...
  • Page 43 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor BLUBOXX Series Small Systems Rack BLUBOXX Series for up to 4 Peripheral Slot Cards © EKF -43- ekf.com...
  • Page 44 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor Sample Backplane w. System Slot Right Aligned Custom Specific Racks 19-Inch © EKF -44- ekf.com...

  • Page 45: Installing And Replacing Components

    Store the board only in its original ESD protected packaging. Retain the original packaging (antistatic bag and antistatic box) in case of returning the board to EKF for repair. © EKF -45- ekf.com...

  • Page 46: Installing The Board

    Insert card carefully (be sure not to damage components mounted on the bottom side of the board by scratching neighboured front panels) A card with onboard connectors requires attachment of associated cabling now Lock the ejector lever, fix screws at the front panel (top/bottom) Retain original packaging in case of return © EKF -46- ekf.com...

  • Page 47: Removing The Board

    Store board in the original packaging, do not touch any components, hold the board at the front panel only Warning Do not expose the card to fire. Battery cells and other components could explode and cause personal injury. © EKF -47- ekf.com...

  • Page 48: Emc Recommendations

    External communications cable assemblies must be shielded (shield connected only at one end of the cable) Use ferrite beads for cabling wherever appropriate Some connectors may require additional isolating parts Recommended Accessories Blind CPCI Front EKF Elektronik Widths currently available Panels (1HP=5.08mm): with handle 4HP/8HP without handle...

  • Page 49: Replacement Of The Battery

    Be careful when removing the old cell and inserting the new one. For boards with a soldered battery the old battery must be desoldered, and the new one soldered. We suggest that you send back the board to EKF for battery replacement. Warning Danger of explosion if the battery is incorrectly replaced or shorted.

  • Page 50: Technical Reference

    SATA: RAID Capable 0x8086 0x8C22 SMBus Controller 0x8086 0x8C09 SATA: Non-AHCI/Non-RAID (Ports 4/5) 0x8086 0x8C24 Thermal Controller 0x1B4B 0x9230 SATA Host Controller (88SE9230) 0x8086 0x157B Ethernet Controller NC2 (i210IT) 0x10B5 0x8618 PCIe Switch Root Port (PEX8618) © EKF -50- ekf.com...

  • Page 51: Local Smb Devices

    LM87 to the corresponding supply voltages of the SC2-PRESTO: Input Source Resolution Register [mV] AIN1 Processor Core Voltage 0x28 AIN2 Graphics Core Voltage 0x29 VCCP1 +1.5V 14.1 0x21 VCCP2/D2- +1.8V 14.1 0x25 +2.5V/D2+ +1.05V 0x20 +3.3V +3.3V 17.2 0x22 0x23 +12V +12V 62.5 0x24 © EKF -51- ekf.com...

  • Page 52: Board Control And Status Registers (Bcsr)

    1=Green part of the front panel LED GP is on FPDIS 0=Enable the front panel handle switch (Default) 1=Disable the front panel handle switch FERP# 0=The front panel handle switch generates a power event (Default) 1=The front panel handle switch generates a system reset © EKF -52- ekf.com...

  • Page 53: Read/Clear Status Register 0

    1=Last system reset may be caused by a power failure of the CPU voltage regulator The bits in this register are sticky, i.e. their state will be kept even if a system reset occurs. To clear the bits a write to the register with arbitrary data may be performed. © EKF -53- ekf.com...

  • Page 54: Read/Clear Status Register 1

    To clear the bits a write to the register with arbitrary data may be performed. Read PLD Revision Register Write: Not allowed Read: SMBus Address 0xC1 Description CMD_PLDREV PLDREV Read PLD Revison Number © EKF -54- ekf.com...

  • Page 55: Gpio Usage

    Ethernet Controller NC1 WAKE# +V3.3A USB_POWEN2# USB Front Panel Left Port Power Enable +V3.3A Not connected on SC2 30-31 +V3.3A Not used on SC2 (pulled via resistors to +3.3V) +V3.3S Not used on SC2 (pulled via resistor to +3.3V) © EKF -55- ekf.com...
  • Page 56 USB Front Panel Right Port Overcurrent Detect +V3.3A Not used on SC2 (pulled via resistor to +3.3V) 61-62 +V3.3A Not connected on SC2 +V3.3A SLP_S5# Multiplexed with chipset internal function +V3.3S CLKOUT_FLEX1 14.318MHz Clock Source 65-67 +V3.3A Not connected on SC2 © EKF -56- ekf.com...

  • Page 57: Configuration Jumpers

    Consists to the non fat pipe slots, generally periphery slots 3 to 8. When the port on P-PCIE is configured as single link, the PCIe switch may size down the link width to x2 or x1 by auto-negotiation. © EKF -57- ekf.com...

  • Page 58: Loading Uefi Bios Setup Defaults (J-Gp)

    BIOS will use the default configuration values after any system reset. To get normal operation again, the jumper has to be removed. J-GP J-GP Function Jumper Removed Normal operation Jumper Installed BIOS configuration reset performed This setting is the factory default © EKF -58- ekf.com...

  • Page 59: Manufacturer Mode Jumper (J-Mfg)

    BIOS POST after power on. Note that installing of jumper J-RTC will neither set UEFI BIOS Setup to EKF Factory Defaults nor resets the time and date register values of the RTC (Real Time Clock). To reset the RTC core the board must be removed from the system rack. Short-circuit the pins of J-RTC for about 1 sec.

  • Page 60: Connectors

    Front Panel Connectors With respect to the video connector, the SC2-PRESTO is available in two flavours, either dual mDP or VGA. USB 3.0 USB 3.0 SC2-PRESTO SC2-PRESTO Dual - mDP © EKF -60- ekf.com...
  • Page 61 2. Bottom RS-232 male D-Sub 9-pin (COM-A) replaces two USB 2.0 jacks 3. Top RS-232 male D-Sub 9-pin (COM-B) replaces dual-USB 3.0 and DisplayPort connectors 4. Center USB 2.0 receptacle replaces both 3.5mm stereo audio jacks © EKF -61- ekf.com...
  • Page 62 Dual - mDP 1 x RS-232 5. Dual-USB 3.0, DisplayPort, 3.5mm stereo audio in/out, 4 x USB 2.0, 2 x RS-232 (COM-C/D) 6. Dual-USB 3.0, DisplayPort, 3.5mm stereo audio in/out, 2 x USB 2.0, 3 x RS-232 (COM-A/C/D) © EKF -62- ekf.com...

  • Page 63: Displayport Connectors

    Fortunately the SC2-PRESTO takes care about this situation. Nevertheless, before ordering DP cable assemblies, verify the associated wiring diagram. Sample VESA Compliant Mini DisplayPort Cable Assemblies 2.0m Mini DisplayPort (mDP) to DisplayPort (DP) plug to plug cable assembly, VESA compliant EKF Part. #270.66.2.02.0 Astron T2M2M20020-R Molex...
  • Page 64 A third DisplayPort video output is available when combining the SC2-PRESTO with the mezzanine side card SCS-TRUMPET or PCS-BALLET. The standard DP connector provided on these side cards is provided with latches, which may be preferred for some applications. SC2-PRESTO w. SCS-TRUMPET © EKF -64- ekf.com...
  • Page 65 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor SC2-PRESTO w. PCS-BALLET Side Card & 2.5-Inch SSD, 8HP SC2-PRESTO w. PCS-BALLET C32-FIO C20-SATA, 12HP © EKF -65- ekf.com...

  • Page 66: Vga Video Connector

    P-VGA (Option) GREEN BLUE DDC_POW VGA_DDC_SDA HSYNC VSYNC VGA_DDC_SCL +3.3V protected by a self resetting PolySwitch fuse 0.75A. This voltage is switched on in S0 state only. © EKF -66- ekf.com...

  • Page 67: Usb Connectors

    +5V via 1.5A current-limited electronic power switch. Power rail may be switched off by software independently for each port. Another two USB 3.0 connectors would be available when the SC2-PRESTO is combined with the SCS-TRUMPET mezzanine side card. © EKF -67- ekf.com...

  • Page 68: Ethernet Connectors

    The lower green LED indicates LINK established when continuously on, and data transfer (activity) when blinking. If the lower green LED is permanently off, no LINK is established. The upper green/yellow dual-LED signals the link speed 1Gbit/s when lit yellow, 100Mbit/s when lit green, and 10Mbit/s when off. © EKF -68- ekf.com...

  • Page 69: Mezzanine Connectors

    ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor Mezzanine Connectors Mezzanine Side Card Connector Suite © EKF -69- ekf.com...
  • Page 70 ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor PCIE EXP HSE © EKF -70- ekf.com...

  • Page 71: Expansion Interface P-Exp

    WARNING: The +3.3V, +5V and +12V power pins are not protected against a short circuit event. The connector P-EXP therefore should be used only for attachment of an approved expansion side card. The maximum current flow across these pins should be limited to 1A per power pin. © EKF -71- ekf.com...

  • Page 72: High Speed Expansion Connector P-Hse

    WARNING: The +3.3V, +5V and +12V power pins are not protected against a short circuit event. The connector P-HSE therefore should be used only for attachment of an approved expansion side card. The maximum current flow through these power pins should be limited to 0.5A per pin. © EKF -72- ekf.com...

  • Page 73: Pci Express® Expansion Header P-Pcie

    WARNING: The +3.3V and +5V power pins are not protected against a short circuit event. The connector P-PCIE therefore should be used only for attachment of an approved expansion side card. The maximum current flow through these power pins should be limited to 1A per pin. © EKF -73- ekf.com...

  • Page 74: Displayport Expansion Header P-Dp3

    ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor DisplayPort Expansion Header P-DP3 P-DP3 DP_LANE0+ DP_LANE3+ DP_LANE0- DP_LANE3- DP_LANE1+ DP_AUX+ DP_LANE1- DP_AUX- DP_LANE2+ DP_HPD DP_LANE2- DP_CFG1 © EKF -74- ekf.com...

  • Page 75: Pin Headers & Debug

    The SC2-PRESTO is provided with a powerful PLD (in-System Programmable Logic Device) which replaces legacy glue logic. The programming header P-ISP is not stuffed (in use for manufacturing only). Its footprint is situated at the bottom side of the board. P-ISP 240.1.08.I • © EKF • ekf.com +3.3V © EKF -75-...

  • Page 76: Processor Debug Header P-Xdp

    XDP-SFF-26 Pin connector to the standard 60-pin XDP. The header P-XDP would be mounted on the PCB bottom side, but is not stuffed by default. P-XDP Processor Debug Connector 269.1.026.902 • FFC Connector © EKF • ekf.com OBSFN_A0 (PREQ#) OBSFN_A1 (PRDY#) OBSDATA_A0 OBSDATA_A1 OBSDATA_A2...

  • Page 77: Compactpci ® Serial Backplane Connector P2

    Serial CPU Board • Intel® Core 4xxx Processor ® CompactPCI Serial Backplane Connector P1 ® P1 CompactPCI Serial System Slot Backplane Connector • EKF Part #250.3.1206.20.02 72 pos. 12x6, 14mm Width, Type A 1_PE_TX02+ 1_PE_TX02- 1_PE_RX02+ 1_PE_RX02- 1_PE_TX03+ 1_PE_TX03- 1_PE_RX03+...

  • Page 78: Compactpci ® Serial Backplane Connector P3

    Serial CPU Board • Intel® Core 4xxx Processor ® CompactPCI Serial Backplane Connector P2 ® P2 CompactPCI Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.00 96 pos. 12x8, 16mm Width, Type B 2_USB2+ 2_USB2- 3_USB2+ 3_USB2- 4_USB2+ 4_USB2- 2_PE_TX06+...

  • Page 79: Compactpci ® Serial Backplane Connector P4

    Serial CPU Board • Intel® Core 4xxx Processor ® CompactPCI Serial Backplane Connector P3 ® P3 CompactPCI Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.00 96 pos. 12x8, 16mm Width, Type B 7_SATA_TX+ 7_SATA_TX- 7_SATA_RX+ 7_SATA_RX- 8_SATA_TX+ 8_SATA_TX- 8_SATA_RX+...

  • Page 80: Compactpci ® Serial Backplane Connector P5

    Serial CPU Board • Intel® Core 4xxx Processor ® CompactPCI Serial Backplane Connector P4 ® P4 CompactPCI Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.00 96 pos. 12x8, 16mm Width, Type B 6_PE_TX02+ 6_PE_TX02- 6_PE_RX02+ 6_PE_RX02- 6_PE_TX03+ 6_PE_TX03- 6_PE_RX03+...

  • Page 81: Compactpci ® Serial Backplane Connector P6

    Serial CPU Board • Intel® Core 4xxx Processor ® CompactPCI Serial Backplane Connector P5 ® P5 CompactPCI Serial System Slot Backplane Connector • EKF Part #250.3.1206.20.00 72 pos. 12x6, 12mm Width, Type C 5_PE_CLKE# 5_PE_CLK+ 5_PE_CLK- 6_PE_CLKE# 6_PE_CLK+ 6_PE_CLK- 7_PE_CLKE#...
  • Page 82 Serial CPU Board • Intel® Core 4xxx Processor ® CompactPCI Serial Backplane Connector P6 ® P6 CompactPCI Serial System Slot Backplane Connector • EKF Part #250.3.1208.20.02 96 pos. 12x8, 18mm Width, Type D 8_ETH_A+ 8_ETH_A- 8_ETH_B+ 8_ETH_B- 8_ETH_C+ 8_ETH_C- 8_ETH_D+...

  • Page 83: Appendix

    ® User Guide • SC2-PRESTO • CompactPCI Serial CPU Board • Intel® Core 4xxx Processor Appendix Mechanical Drawing The following drawing shows the positions of mounting holes and expansion connectors on the SC2-PRESTO. 100.0mm 3.57/5.5mm 3.57/96.5mm © EKF -83- ekf.com...
