User Guide • SC2-PRESTO • CompactPCI

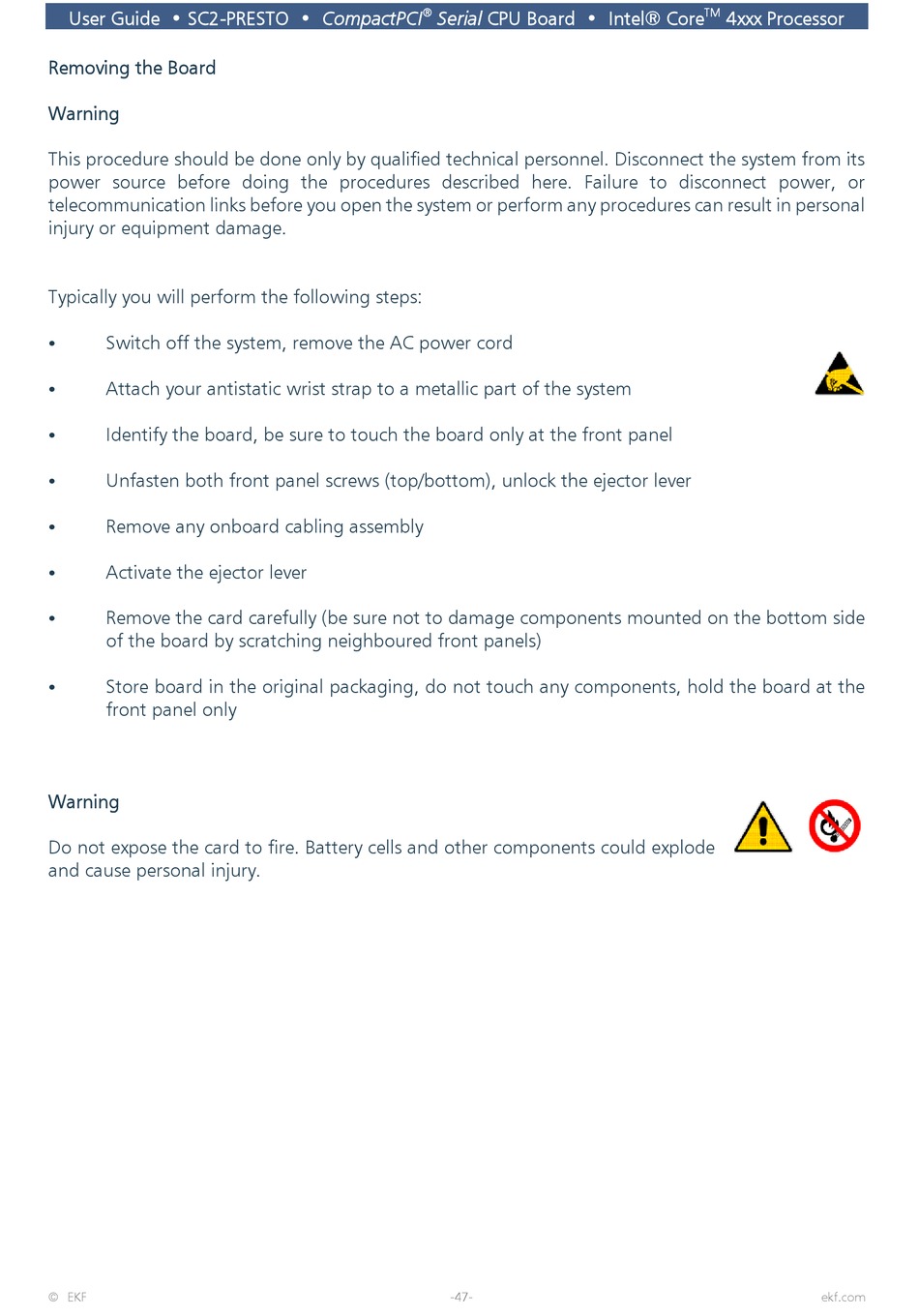

Removing the Board
Warning
This procedure should be done only by qualified technical personnel. Disconnect the system from its
power source before doing the procedures described here. Failure to disconnect power, or
telecommunication links before you open the system or perform any procedures can result in personal
injury or equipment damage.
Typically you will perform the following steps:
Switch off the system, remove the AC power cord
C
Attach your antistatic wrist strap to a metallic part of the system
C
Identify the board, be sure to touch the board only at the front panel
C
C
Unfasten both front panel screws (top/bottom), unlock the ejector lever
Remove any onboard cabling assembly
C
Activate the ejector lever
C
C
Remove the card carefully (be sure not to damage components mounted on the bottom side
of the board by scratching neighboured front panels)
Store board in the original packaging, do not touch any components, hold the board at the
C
front panel only
Warning
Do not expose the card to fire. Battery cells and other components could explode
and cause personal injury.
© EKF
®
Serial CPU Board • Intel® Core
-47-
TM
4xxx Processor
ekf.com
