EKF SC4-CONCERTO User Manual

Compactpci serial cpu card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

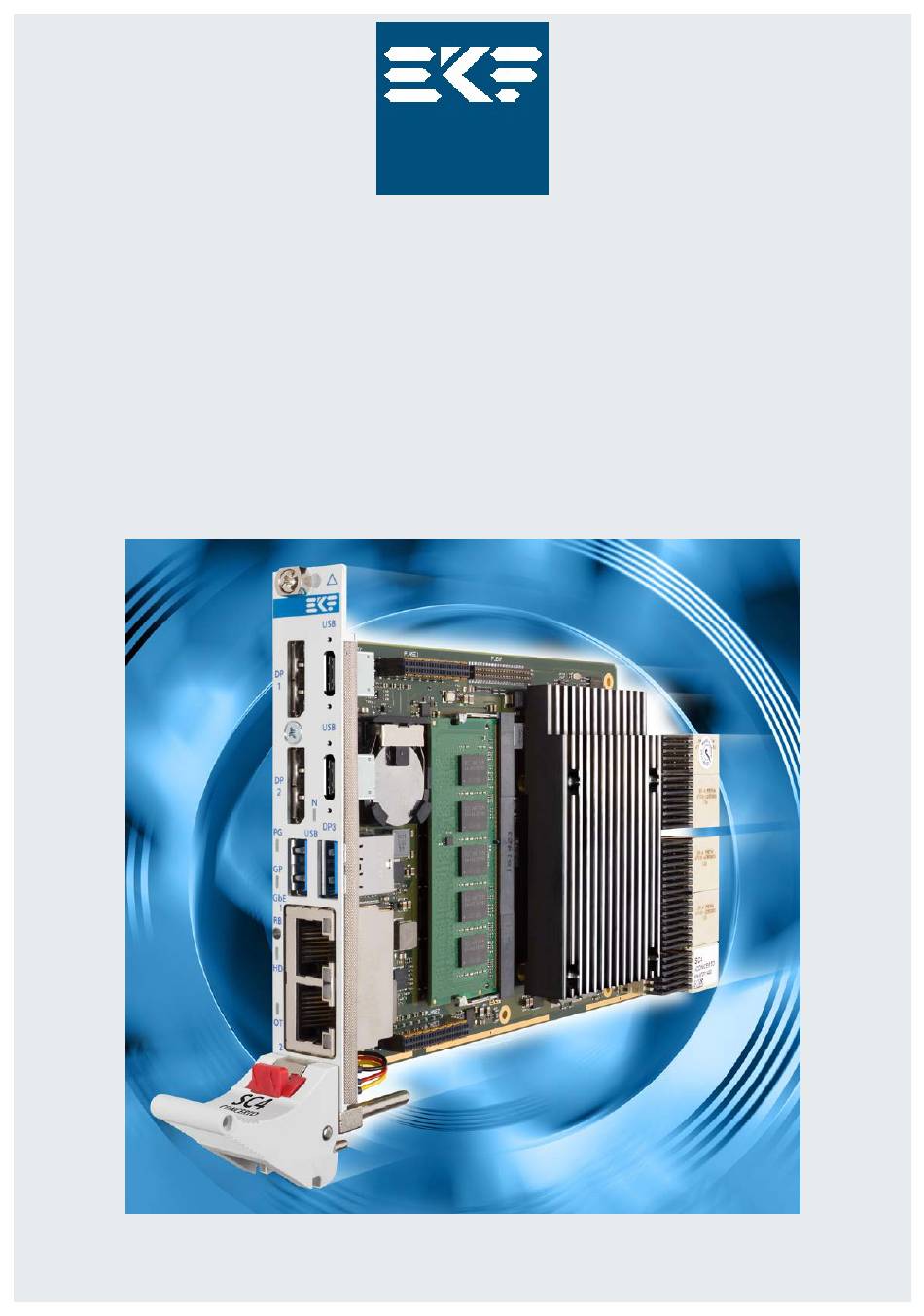

User Guide
®
SC4-CONCERTO • CompactPCI
Serial CPU Card
®
®
Intel
Mobile Workstation Processor XEON
E3 v5 Family
th
®
& 6
Generation Intel
Core™ Processor (Skylake)
th
Document No. 8413 • Edition 13 • 26
November 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC4-CONCERTO and is the answer not in the manual?

Questions and answers

Related Manuals for EKF SC4-CONCERTO

Summary of Contents for EKF SC4-CONCERTO

  • Page 1 User Guide ® SC4-CONCERTO • CompactPCI Serial CPU Card ® ® Intel Mobile Workstation Processor XEON E3 v5 Family ® & 6 Generation Intel Core™ Processor (Skylake) Document No. 8413 • Edition 13 • 26 November 2021...

  • Page 2: Table Of Contents

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Contents About this Manual............5 Edition History..
  • Page 3 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Mezzanine Side Board Options..........39 ®...
  • Page 4 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board ® CompactPCI Serial Backplane Connectors P1 - P6......89 ©...
  • Page 5 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board About this Manual This manual describes the technical aspects of the SC4-CONCERTO, required for installation and system integration. It is intended for the experienced user only. Edition History Contents/Changes Author...

  • Page 6: About This Manual

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board contact support@ekf.com for availability of additional documentation which may be important for proper usage. © EKF ekf.com...

  • Page 7: Related Documents

    This manual has been edited as carefully as possible. We apologize for any potential mistake. Information provided herein is designated exclusively to the proficient user (system integrator, engineer). EKF can accept no responsibility for any damage caused by the use of this manual. © EKF...

  • Page 8: Standards

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Standards Reference Documents Term Document Origin ® ® CompactPCI CompactPCI Serial Specification, PICMG CPCI-S.0 www.picmg.org Serial DisplayPort VESA DisplayPort Standard Version 1.2, www.vesa.org DisplayPort Alt Mode on USB Type-C Ethernet IEEE Std 802.3...

  • Page 9: Overview

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Overview The SC4-CONCERTO is a rich featured high The SC4-CONCERTO is equipped with up to ® performance 4HP/3U CompactPCI Serial CPU 32GB DDR4 RAM with ECC support. Up to ®...

  • Page 10: Technical Features

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Technical Features Feature Summary Feature Summary General ® ® PICMG CompactPCI Serial (CPCI-S.0) CPU card Form factor single size Eurocard (board dimensions 100x160mm Mounting height 3U Front panel width 4HP (8HP/12HP assembly with optional mezzanine side card) Front panel I/O connectors for typical system configuration (2 x USB3, 2 x DisplayPort, 2 x GbE) ®...
  • Page 11 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Feature Summary Main Memory Integrated memory controller up to 32GB DDR4 2133 +ECC DDR4 +ECC soldered memory up to 16GB DDR4 +ECC SO-DIMM memory module socket up to 16GB Performance Rating...
  • Page 12 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Feature Summary Chipset ® Intel CM238 Mobile Workstation Platform Controller Hub (PCH) PCIe Gen3 8GT/s SATA 6Gb/s USB3 LPC, Audio, Legacy On-Board Building Blocks ® Additional on-board devices, PCIe based ®...
  • Page 13 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Feature Summary ® CompactPCI Serial Backplane Resources ® PICMG CPCI-S.0 CPU card & system slot controller ® 16 x PCIe Gen3 8GT/s (2 links x 8 for two fat pipe slots, derived directly from the Xeon or Core™...
  • Page 14 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Feature Summary Environmental & Regulatory Suitable e.g. for industrial, transportation & instrumentation applications Designed & manufactured in Germany ISO 9001 certified quality management Long term availability Rugged solution Coating, sealing, underfilling on request...
  • Page 15 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board © EKF -15- ekf.com...

  • Page 16: Power Requirements

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Power Requirements Power Requirements Load Current [A] at +12V (±10%) Maximum Performance Windows 10 Idle Board LFM / HFM / Turbo LFM / HFM / Turbo SC4-440D 1.9 / 2.4 / 2.8 0.7 / 0.7 / 0.7...

  • Page 17: Block Diagram

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Block Diagram www.ekf.com/s/sc4img/sc4_blk.pdf © EKF -17- ekf.com...

  • Page 18: Top View Component Assembly

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Top View Component Assembly © EKF -18- ekf.com...

  • Page 19: Bottom View Component Assembly

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Bottom View Component Assembly © EKF -19- ekf.com...

  • Page 20: Front Panel Connectors

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Front Panel Connectors ETH 1/2 Dual Gigabit Ethernet RJ-45 receptacles with integrated indicator LEDs DP 1/2 DisplayPort digital video output receptacles DP 3 Optional with S40-NVME, Type-C receptacle (DP Alt Mode enabled) USB 1/2 Universal Serial Bus 3.0 type A receptacles (USB 3.1 Gen1 SuperSpeed 5Gbps)

  • Page 21: On-Board Connectors & Sockets

    Pin header suitable for Front Panel Handle switch cable harness P-ISP PLD glue logic device programming connector, not populated Jumpers J-GP Jumper to reset UEFI/BIOS Setup to EKF Factory Defaults, IEEE 1588 Pulse per Second Output J-MFG Jumper to enter Manufacturing Mode, not populated J-RTC Jumper to reset RTC circuitry (part of PCH), not populated ©...

  • Page 22: Microprocessor

    The processors supported by the SC4-CONCERTO are SKUs with a thermal design power (TDP) of 25- 45W. Due to the cTDP feature (configurable TDP) the power consumption of the 45W parts may be lowered by UEFI setup to fit the customers requirements (see table below).

  • Page 23: Thermal Considerations

    Serial CPU Board Thermal Considerations In order to avoid malfunctioning of the SC4-CONCERTO, take care of appropriate cooling of the processor and system, e.g. by a cooling fan suitable to the maximum power consumption of the CPU chip actually in use. The processor contains digital thermal sensors (DTS) that are readable via special CPU registers or via PECI bus.

  • Page 24: Main Memory

    Serial CPU Board Main Memory The SC4-CONCERTO features two channels of DDR4 SDRAMs with support of ECC (Error Correction Code). One channel is realized with 18 memory devices soldered to the board (Memory Down) and delivers a capacity of up to 16GB with a clock frequency of 2133MHz (PC4-2133).

  • Page 25: Graphics Subsystem

    The graphics subsystems main interfaces like DisplayPort and DVI are part of the processor. Only a few sideband signals (DDC channel, hot plug detection) are located within the PCH CM238. The SC4-CONCERTO offers two DisplayPort interfaces with latching receptacle in the front panel. The latching feature prevents DisplayPort cables from detaching in vibrating or harsh environments.

  • Page 26: Lan Subsystem

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board LAN Subsystem The Ethernet LAN subsystem is composed of two Gigabit Ethernet ports: One Intel i219LM Physical Layer Transceiver (PHY) using the PCH CM238 internal MAC and one Intel i210IT Gigabit Ethernet Controller.

  • Page 27: Serial Ata Interface (Sata)

    Serial CPU Board Serial ATA Interface (SATA) The SC4-CONCERTO provides a total of up to ten serial ATA (SATA) ports, derived from up to three independent SATA controllers. All of these ports support data transfer rates of 6Gbps (600MB/s), 3Gbps (300MB/s) or 1.5Gbps (150MB/s). SATA controllers are located within the CM238 Platform...

  • Page 28: Pci Express ® Interface

    ® PCI Express Interface The SC4-CONCERTO is provided with several PCI Express (PCIe) lanes for I/O expansion. Sixteen PCI ® Express lanes, originating from the processor, are building the two fat pipes defined by CompactPCI Serial. These two links consists of eight lanes with transfer rates of up to 8Gbps (PCI Express Gen 3).

  • Page 29: Universal Serial Bus (Usb)

    Serial CPU Board Universal Serial Bus (USB) The SC4-CONCERTO is provided with fourteen USB ports. All of them are USB 2.0 capable, but six ports are also supporting the USB 3.0 SuperSpeed standard. Two USB 3.0 interfaces are routed to ®...

  • Page 30: Utility Interfaces

    The HD Audio port requires an additional audio codec, as provided e.g. on the SCS-TRUMPET side card. The LPC bus presents an easy way to add legacy interfaces to the system. EKF offers a variety of mezzanine expansion boards (side cards), to be attached on top of the SC4-CONCERTO, featuring all classic Super-I/O functionality, for example the SCS-TRUMPET or PCS-BALLET.

  • Page 31: Real-Time Clock

    In applications were the use of a battery is not permitted, a SuperCap can be soldered instead of the battery. It is also possible to use the SC4-CONCERTO without any battery or SuperCap. In this case the Real- Time Clock can’t keep its time and date. Per default an error message is reported by the UEFI/BIOS...

  • Page 32: Spi Flash

    If the programming procedure fails e.g. caused by a power interruption, the SC4-CONCERTO may no more be operable. In this case you would possibly have to send in the board, because the Flash device is directly soldered to the PCB and cannot be changed by the user.

  • Page 33: Reset

    The healthy state of the SC4-CONCERTO is indicated by the LED PG (Power Good) located in the front panel. This bicoloured LED signals different states of the board (see section below). As soon as this LED begins to lite green, all power voltages are within their specifications and the reset signal has been deasserted.
  • Page 34 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board © EKF -34- ekf.com...

  • Page 35: Watchdog

    Serial CPU Board Watchdog An important reliability feature is a software programmable watchdog function. The SC4-CONCERTO contains two of these watchdogs. One is part of the CM238 PCH and also known as TCO Watchdog. A detailed description is given in the CM238 data sheet. Operating systems like Linux offer a driver interface to the TCO watchdog.

  • Page 36: Front Panel Leds

    Serial CPU Board Front Panel LEDs The SC4-CONCERTO is equipped with four LEDs which can be observed from the front panel. Three of these LEDs are labelled according to their primary meaning, but should be interpreted altogether for system diagnosis:...

  • Page 37: Pg (Power Good) Led

    User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board PG (Power Good) LED The SC4-CONCERTO offers a bicolour LED labelled PG located within the front panel. After system reset, this LED defaults to signal different power states: Sleep state S3, S4 or S5...

  • Page 38: Hd (Hard Disk Activity) Led

    Serial CPU Board HD (Hard Disk Activity) LED The SC4-CONCERTO offers a bicoloured LED marked as HD placed within the front panel. This LED, when blinking green, signals activity on any device attached to the SATA ports of the CM238.

  • Page 39: Main Power Supply Control (Ps_On#)

    PS_ON# (connector P1 pin E2). If the system enters the sleep state S5 (soft off), the signal PS_ON# is pulled high, hence the main power supply is switched-off. The SC4-CONCERTO is held in soft off state until a power management event (e.g. power button event triggered by the front panel handle) brings back the system to the S0 state.

  • Page 40: Mezzanine Side Board Options

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Mezzanine Side Board Options The SC4-CONCERTO is equipped with a set of HSE1 can be configured for either 4 x PCIe or 4 high-speed local expansion interface x SATA, or 2 x PCIe and 2 x SATA, thanks to the connectors, which can be optionally used to flexible HSIO channels of the CM238 PCH.
  • Page 41 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board SC4-CONCERTO w. S20-NVME Low Profile Mezzanine © EKF -41- ekf.com...
  • Page 42 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board SC4-CONCERTO with S40-NVME Mezzanine SC4-CONCERTO w. S40-NVME Low Profile Mezzanine © EKF -42- ekf.com...
  • Page 43 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board SC4-CONCERTO with S80-P6 Mezzanine SC4-CONCERTO w. S80-P6 Low Profile Mezzanine © EKF -43- ekf.com...
  • Page 44 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board SC4-CONCERTO w. SCL-RHYTHM Side Card (8HP Assembly) © EKF -44- ekf.com...
  • Page 45 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board SCZ-NVM Side Card (8HP/12HP Assembly) SC4-CONCERTO w. SCZ-NVM Side Card (8HP Assembly) © EKF -45- ekf.com...
  • Page 46 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Mezzanine Connectors Related Documents www.ekf.com/s/sc4/new_mezzanine_connectors.pdf P-EXP I/F Type Controller LPC (Low Pin Count) HD Audio PCH (I C[0]) 2 x UART (TTL) P-HSE1 I/F Type Controller 4 x PCIe Gen3 or 4 x SATA 6G 2 x USB 2.0, 1 x USB 3.0...

  • Page 47: Compactpci ® Serial

    ® links PCI Express , SATA, Ethernet and USB. The SC4-CONCERTO, designed to act as a CompactPCI Serial system slot controller, provides the resources of these interfaces. The backplane distributes them in the form of point to point connections to the peripheral slots.
  • Page 48 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Backplane Resources SC4-CONCERTO (System Slot Left) www.ekf.com/s/sc4/img/sc4_backplane.pdf © EKF -48- ekf.com...
  • Page 49 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Backplane Resources SC4-CONCERTO (System Slot Right) www.ekf.com/s/sc4/img/sc4_backplane.pdf © EKF -49- ekf.com...
  • Page 50 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Backplane Resources w. 1+4 Slot Backplane www.ekf.com/s/sc4/img/sc4_backplane.pdf © EKF -50- ekf.com...
  • Page 51 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Backplane Resources w. 1+4 Slot Backplane www.ekf.com/s/sc4/img/sc4_backplane.pdf © EKF -51- ekf.com...

  • Page 52: Peripheral Slot Operation

    SGPIO (Connector P1 Pins G3/H3/J3/K3) will be disconnected One result of that is, that a SC4-CONCERTO plugged into a peripheral slot will not get a reset even if the system controller forces the reset signal on the backplane to an active state.

  • Page 53: Supplementary Information

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Supplementary Information ® Useful Information Related to CompactPCI Serial ® CompactPCI Serial Concise Overview www.ekf.com/s/serial_concise.pdf ® CompactPCI Serial All You Need to www.ekf.com/s/smart_solution.pdf Know © EKF -53- ekf.com...

  • Page 54: Installing And Replacing Components

    Store the board only in its original ESD protected packaging. Retain the original packaging (antistatic bag and antistatic box) in case of returning the board to EKF for repair. © EKF -54-...

  • Page 55: Installing The Board

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Installing the Board Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage.

  • Page 56: Removing The Board

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Removing the Board Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage.

  • Page 57: Emc Recommendations

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board EMC Recommendations In order to comply with the CE regulations for EMC, it is mandatory to observe the following rules: The chassis or rack including other boards in use must comply entirely with CE...

  • Page 58: Replacement Of The Battery

    SC4-CONCERTO. However, some versions of SC4-CONCERTO are delivered with a battery holder which makes it possible for the user to replace the coin cell. Use a CR2032 cell as replacement part to ensure an extended temperature range.

  • Page 59: Technical Reference

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Technical Reference Local PCI Devices The following table shows the on-board PCI devices and their location within the PCI configuration space. Several devices are part of the processor and platform controller hub CM238.

  • Page 60: Local Smb/I 2 C Devices

    Local SMB/I C Devices The SC4-CONCERTO contains devices that are attached to the System Management Bus (SMBus). These are the SPD EEPROMs for the on-board memory or the possibly plugged SODIMM, a general purpose serial EEPROM containing board configuration data, the supply voltage/temperature controlling device NCT7491, a set of board control and status registers as well as two general purpose, non-volatile electronic jumpers.

  • Page 61: Hardware Monitor Nct7491

    Serial CPU Board Hardware Monitor NCT7491 Attached to the SMBus, the SC4-CONCERTO is provided with the hardware monitor NCT7491. This device is capable to observe the temperatures of the board, processor cores, and on-board memory, as well as several supply voltage rails with a resolution of 10 bit. The following table shows the...

  • Page 62: Board Control And Status Registers (Bcsr)

    User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Board Control and Status Registers (BCSR) A set of board control and status registers allow to program special features on the SC4-CONCERTO: Assert a full reset Control activity of front panel reset and power event button...

  • Page 63: Write/Read Control Register 0

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Write/Read Control Register 0 Write: SMBus Address 0xA0 Default after reset: 0x00 Read: SMBus Address 0xA1 Description CMD_CTRL0 GPLED 0=Green part of the front panel LED GP is off (Default)

  • Page 64: Read/Clear Status Register 0

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Read/Clear Status Register 0 Write: SMBus Address 0xB0 Read: SMBus Address 0xB1 Description CMD_STAT0 PF18S 0=Normal operation 1=Last system reset may be caused by a power failure of the +V1.8S voltage regulator...

  • Page 65: Read/Clear Status Register 1

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Read/Clear Status Register 1 Write: SMBus Address 0xB2 Read: SMBus Address 0xB3 Description CMD_STAT1 WDGARMD 0=Normal operation 1=The watchdog is armed and has to be retriggered within its time-out period...

  • Page 66: Read Pld Revision Register

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Read PLD Revision Register Write: Not allowed Read: SMBus Address 0xC1 Description CMD_PLDREV 7:0 PLDREV Read PLD Revison Number © EKF -66- ekf.com...

  • Page 67: Gpio Usage

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board GPIO Usage GPIO Usage CM238 PCH GPIO Usage CM238 PCH GPIO USAGE Function Description Group A (GPP_A) Native RCIN# Keyboard Reset, to P-EXP Pin 13 A1-A4 Native LPC_AD[0-3] LPC Address/Data Lines...
  • Page 68 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board GPIO Usage CM238 PCH GPIO USAGE Function Description B15- GPIO Not connected on SC4 GPIO Not used on SC4, Hardware Strap to disable TCO Watchdog B19- GPIO Not connected on SC4...
  • Page 69 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board GPIO Usage CM238 PCH GPIO USAGE Function Description Group D (GPP_D) GPIO CPCI_PWR_FAIL# Sense CompactPCI Serial Power Failure, P1 Pin F3 GPIO PM_MEMTS# Memory Thermal Sensor Event GPIO HM_INT# Hardware Monitor NCT7491 Alert Line...
  • Page 70 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board GPIO Usage CM238 PCH GPIO USAGE Function Description Group F (GPP_F) Native SATA#PCIE34 Shorted to GPP_E2 F1-F9 GPIO Not connected on SC4 Native SGPIO_CLOCK CompactPCI Serial GPIO Bus CLOCK (P1 J3: SATA_SCL)
  • Page 71 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board GPIO Usage CM238 PCH GPIO USAGE Function Description Native BATLOW# Not used on SC4 (pulled via resistor to +3.3V) Native ACPRESENT Not used on SC4 (pulled via resistor to +3.3V)

  • Page 72: Configuration Jumpers

    The jumper J-GP may be used to reset the UEFI/BIOS configuration settings to a default state. The UEFI/BIOS on SC4-CONCERTO stores most of its settings in an area within the UEFI/BIOS flash, e.g. the actual boot devices. Using the jumper J-GP is only necessary, if it is not possible to enter the setup of the UEFI/BIOS.

  • Page 73: Manufacturer Mode Jumper (J-Mfg)

    The jumper J-MFG is used to bring the board into the manufacturer mode. This is necessary only on board production time and should not used by customers. For normal operation the jumper should be removed. The pin header J-MFG is not stuffed on the SC4-CONCERTO by default. J-MFG...

  • Page 74: Rtc Reset (J-Rtc)

    UEFI/BIOS POST after power on. Note that installing of jumper J-RTC will neither set UEFI/BIOS Setup to EKF Factory Defaults nor resets the time and date register values of the RTC (Real Time Clock). To reset the RTC core the board must be removed from the system rack. Short-circuit the pins of J-RTC for about 1 sec.

  • Page 75: Connectors

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Connectors Caution Some of the internal connectors provide operating voltage (3.3V, 5V and 12V) to devices inside the system chassis, such as internal peripherals. Not all of these connectors are short circuit protected. Do not use these internal connectors for powering devices external to the computer chassis.

  • Page 76: Front Panel Connectors

    Serial CPU Board Front Panel Connectors The basic SC4-CONCERTO front panel connectors are illustrated on the left side above . If low profile mezzanine modules are employed, one or two Type-C receptacles may be available for front I/O in addition (illustrated on the right side above). Documentation on the Type-C connectors is not provided in this manual - please refer to the particular mezzanine module in use.

  • Page 77: Displayport Connectors

    Serial CPU Board DisplayPort Connectors The Intel graphics processing unit (GPU) on the SC4-CONCERTO processor carrier card incorporates up to three external DisplayPort video channels. Two video outputs are available via the CPU card front panel (standard DisplayPort receptacles, reverse mount). A third DP signal channel is passed across the HSE2 mezzanine connector for optional use on a mezzanine card.

  • Page 78: Usb Connectors

    ® The Intel CM238 Platform Controller Hub incorporates a four-port USB 3.0 xHCI host controller. Two ports are directly available on the SC4-CONCERTO front panel (type A receptacle), for attachment of external USB devices. P-USB • Dual USB 3.0 Receptacle USB 3.0 dual type A receptacle, stacked, 18-position...

  • Page 79: Ethernet Connectors

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Ethernet Connectors Gigabit Ethernet Ports 1/2 (P-ETH, RJ-45) NC1_MDX0+ NC1_MDX0- NC1_MDX1+ NC1_MDX2+ Port 1 NC1_MDX2- NC1_MDX1- NC1_MDX3+ NC1_MDX3- NC2_MDX0+ NC2_MDX0- NC2_MDX1+ NC2_MDX2+ Port 2 NC2_MDX2- NC2_MDX1- NC2_MDX3+ NC2_MDX3- The lower green LED indicates LINK established when continuously on, and data transfer (activity) when blinking.

  • Page 80: Mezzanine Connectors

    (HSE1, HSE2) and in addition a legacy I/F connector (EXP) are populated on top of the CPU board. EKF offers low profile mezzanine modules which fit into the 4HP envelope of the CPU carrier card, with varying B2B clearance from 9.5mm to 10.8mm, and also side cards for additional 4HP mounting pitch (8HP in total assembly, 18.7mm B2B).
  • Page 81 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Board to Side Card Type-C P6 Ethernet Series Board HSE1 HSE2 Option 8HP Style Front I/O Backplane Space (HSE2) SATA x4 9.5mm ◯ ◯ ◯ PCIe x4, ◯ 10.0mm USB3...
  • Page 82 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board HSE1 Connector Employed for S2x Low Profile Mezzanines Both HSE Connectors in Use for S4x and S8x for Low Profile Mezzanines © EKF -82- ekf.com...
  • Page 83 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board P6 Backplane Connector w. S80-P6 Low Profile Mezzanine 8HP/12HP Assemblies w. Side Card SCZ-NVM © EKF -83- ekf.com...

  • Page 84: P-Hse1

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board P-HSE1 High Speed Expansion P-HSE1 CFG_12 CFG_34 1_SATA_PCIE_TXP 3_SATA_PCIE_TXP 1_SATA_PCIE_TXN 3_SATA_PCIE_TXN 1_SATA_PCIE_RXN 3_SATA_PCIE_RXN 1_SATA_PCIE_RXP 3_SATA_PCIE_RXP 2_SATA_PCIE_TXP 4_SATA_PCIE_TXP 2_SATA_PCIE_TXN 4_SATA_PCIE_TXN 2_SATA_PCIE_RXN 4_SATA_PCIE_RXN 2_SATA_PCIE_RXP 4_SATA_PCIE_RXP 1_USB2_P 2_USB3_TXP 1_USB2_N 2_USB3_TXN 2_USB2_P 2_USB3_RXP 2_USB2_N...

  • Page 85: P-Hse2

    +12VPS +12VPS Connected to CM238 PCH I2C Bus Controller 0, 3.3V tolerant only Power rail switched on in S0-S4 state PCIe configured 1x4, 2x2, 4x1 via soft-straps (Flash image), programming tool will be provided by EKF. © EKF -85- ekf.com...

  • Page 86: P-Exp

    ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board P-EXP P-EXP • Expansion Board Interface (LPC/HD-Audio/UART) 1.27mm Socket 2 x 20 (276.53.040.01) +3.3VS CLK_24MHZ (CLK_33MHz) PLTRST# LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 LPC_FRAME# (LPC_DRQ#) +3.3VS SERIRQ PME# SMI# CLK_14MHZ 2_UART_TXD (FWH_ID0)

  • Page 87: Pin Headers & Debug

    The jumper P-FPH is used for attachment of an external SPDT switch. By default, P-FPH is connected across a short cable harness to a microswitch, which is integrated into the SC4-CONCERTO front panel handle (ejector lever). The switch performs a power button event (e.g. system shutdown) by short- circuiting the pins 1 and 3 of P-FPH when activated (hold unlock button of front panel handle depressed momentarily).

  • Page 88: Pld Programming Header P-Isp

    Serial CPU Board PLD Programming Header P-ISP The SC4-CONCERTO is provided with a powerful PLD (in-System Programmable Logic Device) which replaces legacy glue logic. The programming header P-ISP is not stuffed (in use for manufacturing only). Its footprint is situated at the bottom side of the board.

  • Page 89: Processor Debug Header P-Xdp

    User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Processor Debug Header P-XDP The SC4-CONCERTO may be equipped with a 60-position processor debug header for hard- and ® software debugging (specified by Intel as XDP-60 Pin Platform Connection). The connector is suitable ®...
  • Page 90 Polarity inversion was made on these lanes on SC4-CONCERTO for better routing. This is allowed according the “PCI Express Base Specification 3.0" and has no effect on function or performance of the link. The pin-out shown is as per specification.
  • Page 91 Polarity inversion was made on these lanes on SC4-CONCERTO for better routing. This is allowed according the “PCI Express Base Specification 3.0" and has no effect on function or performance of the link. The pin-out shown is as per specification.
  • Page 92 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board ® P3 CompactPCI Serial Slot Backplane Connector Type B EKF Part #250.3.1208.20.00 • 96 pos. 12x8, 16mm Width 7 SATA 7 SATA 7 SATA 7 SATA 8 SATA 8 SATA...
  • Page 93 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board ® P4 CompactPCI Serial Slot Backplane Connector Type B EKF Part #250.3.1208.20.00 • 96 pos. 12x8, 16mm Width TX02+ TX02- RX02+ RX02- TX03+ TX03- RX03+ RX03- TX00+ TX00- RX00+ RX00-...
  • Page 94 Polarity inversion was made on these lanes on SC4-CONCERTO for better routing. This is allowed according the “PCI Express Base Specification 3.0" and has no effect on function or performance of the link. The pin-out shown is as per specification.
  • Page 95 Please note: The backplane connector P6 is intentionally not populated on the SC4-CONCERTO CPU carrier card itself, since many projects do not require a network enabled backplane configuration. Instead, P6 is provided on a low profile mezzanine module (S80-P6), which fits on the mezzanine connectors HSE1 and HSE2.
  • Page 96 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board S20-NVME Mezzanine Module S40-NVME Mezzanine Modul © EKF -96- ekf.com...
  • Page 97 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board S80-P6 Mezzanine Module SC4-CONCERTO w. S80-P6 © EKF -97- ekf.com...
  • Page 98 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board 8HP/12HP Assemblies w. Side Card Related Information S20-NVME Home www.ekf.com/s/s20/s20.html S40-NVME Home www.ekf.com/s/s40/s40.html S80-P6 Home www.ekf.com/s/s80/s80.html SCZ-NVM Home www.ekf.com/s/scz/scz.html New Mezzanine Connectors Explained www.ekf.com/s/sc4/new_mezzanine_connectors.pdf © EKF -98- ekf.com...
  • Page 99 ® User Guide • SC4-CONCERTO • CompactPCI Serial CPU Board Beyond All Limits: EKF High Performance Embedded Industrial Computers Made in Germany boards. systems. solutions. EKF Elektronik GmbH Phone +49 (0)2381/6890-0 Philipp-Reis-Str. 4 (Haus 1) Fax +49 (0)2381/6890-90 Lilienthalstr. 2 (Haus 2) Internet www.ekf.com...
