User Guide • SC2-PRESTO • CompactPCI
Pin Headers & Debug

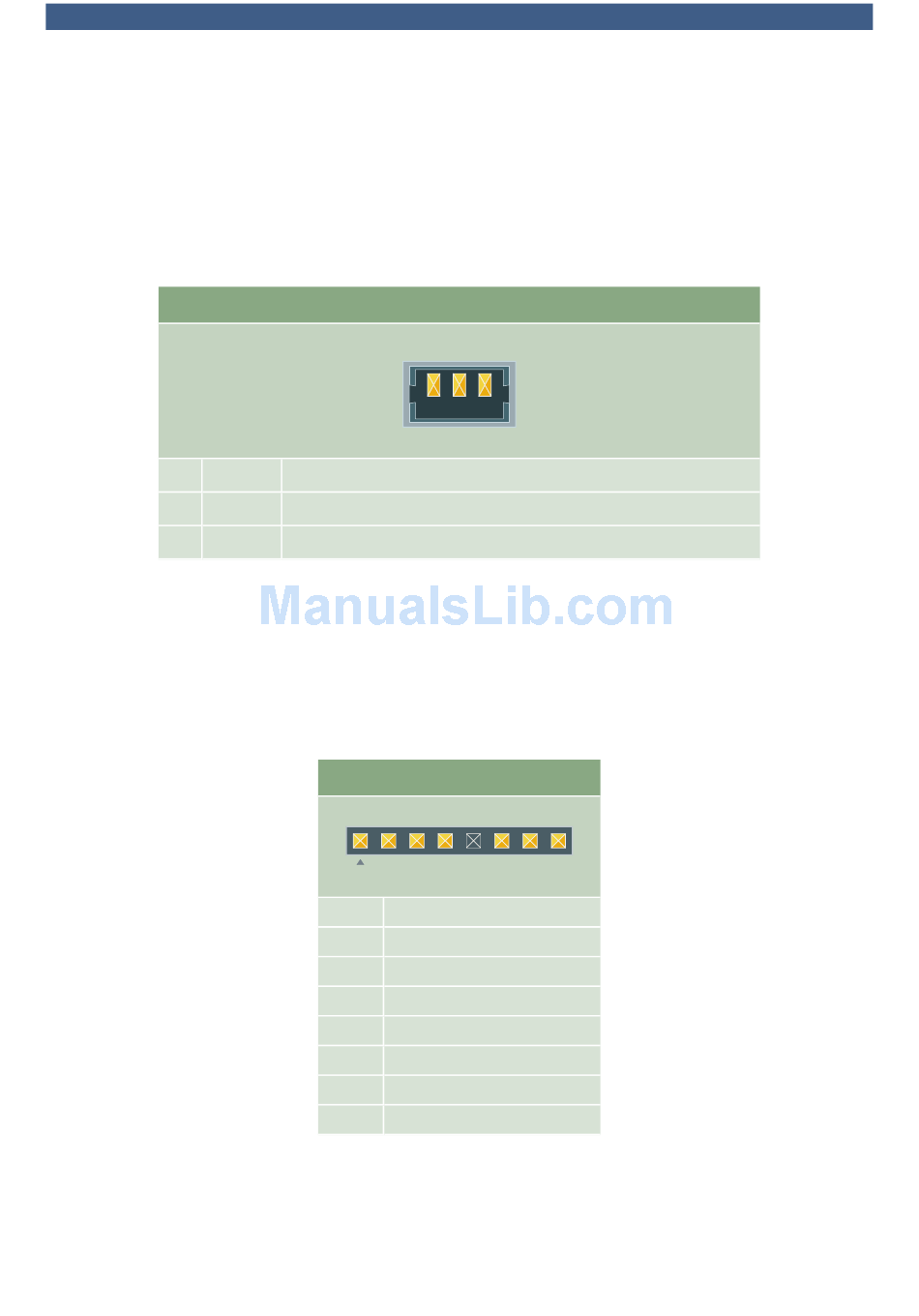

Front Panel Handle Microswitch Header P-FPH

The jumper P-FPH is used for attachment of an external SPDT switch. By default, P-FPH is connected
across a short cable harness to a microswitch, which is integrated into the SC2-PRESTO front panel
handle (ejector lever). The switch performs a power button event (e.g. system shutdown) by short-
circuiting the pins 1 and 3 of P-FPH when activated (hold unlock button of front panel handle
depressed momentarily).
1
2
3 yellow

PLD Programming Header P-ISP

The SC2-PRESTO is provided with a powerful PLD (in-System Programmable Logic Device) which
replaces legacy glue logic. The programming header P-ISP is not stuffed (in use for manufacturing
only). Its footprint is situated at the bottom side of the board.
© EKF
black Microswitch Pole (Common), Wired to PLD
red Microswitch Throw - F/P Handle Locked Position, NC
Microswitch Throw - F/P Handle Unlocked Position, Wired to GND
240.1.08.I • © EKF • ekf.com
1
2
3
4
5
6
7
8
®
Serial CPU Board • Intel® Core
P-FPH
# 276.02.003.11
© EKF • ekf.com
1
P-ISP
key
+3.3V
TDO
TDI
NC
KEY
TMS
GND
TCK
-75-
TM
4xxx Processor
