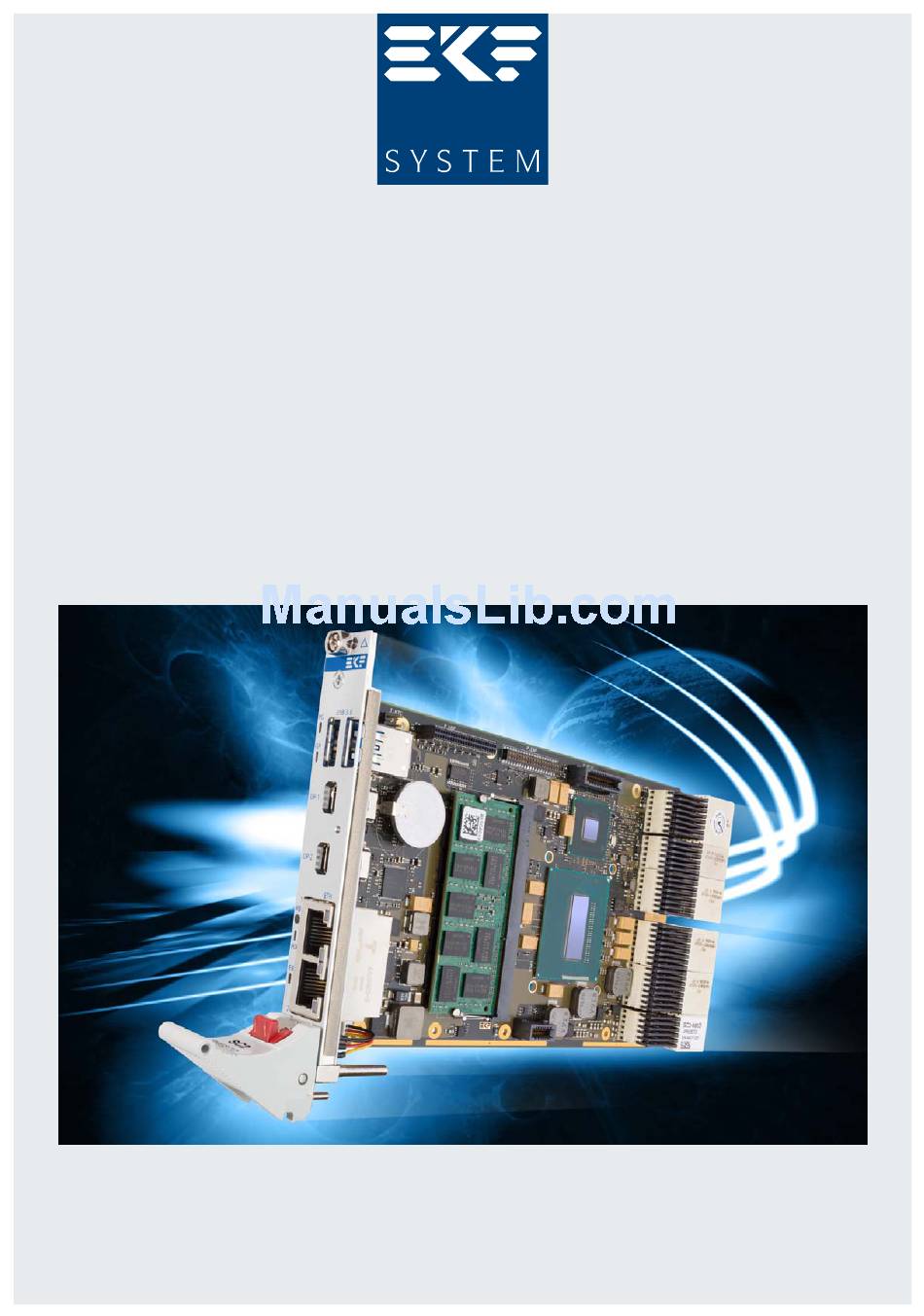

Product Information
®
SC2-PRESTO • CompactPCI
Serial CPU Card
th
®
4
Generation Intel
Core™ Processor
Document No. 7046 • 19 June 2015
SC2-PRESTO

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC2-PRESTO and is the answer not in the manual?

Questions and answers

Related Manuals for EKF SC2-PRESTO

Summary of Contents for EKF SC2-PRESTO

  • Page 1 Product Information ® SC2-PRESTO • CompactPCI Serial CPU Card ® Generation Intel Core™ Processor Document No. 7046 • 19 June 2015 SC2-PRESTO...
  • Page 2 SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor General The SC2-PRESTO is a rich featured high The SC2-PRESTO is equipped with up to 16GB ® performance 4HP/3U CompactPCI Serial CPU Low Power RAM with ECC support. 8GB ®...

  • Page 3: Feature Summary

    ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Feature Summary General PICMG® CompactPCI® Serial (CPCI-S.0) CPU card < Form factor single size Eurocard (board dimensions 100x1600mm < Mounting height 3U < < Front panel width 4HP (8HP/12HP assembly with optional mezzanine side card) Front panel I/O connectors for typical system configuration (2 x USB3, 2 x DisplayPort, 2 x GbE) <...
  • Page 4 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Feature Summary Graphics Integrated HD Graphics Engine, 3 symmetric independent displays < Enhanced Media Processing, DX11.1, OpenCL 1.2, OpenGL 3.2, JPEG, MJPEG, MVC, SVC, MPEG-2 < <...
  • Page 5 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Feature Summary Front Panel I/O (4HP) 2 x Gigabit Ethernet RJ45 (1 = PCH & I217LM - iAMT, 2 = I210IT) < 2 x DisplayPort (from processor integrated HD graphics engine, mDP style receptacles, optional cable <...
  • Page 6 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Feature Summary Environmental & Regulatory Suitable e.g. for industrial, transportation & instrumentation applications < Designed & manufactured in Germany < < ISO 9000 certified quality management Long term availability <...
  • Page 7 P1 - P6 are provided on a system from two so called Fat Pipe slots (PCIe x 8). slot controller such as the SC2-PRESTO, which can be considered as a root hub with respect to The SC2-PRESTO is a native CompactPCI® Serial most signal lines.
  • Page 8 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Backplane Resources SC2-PRESTO (System Slot Left) www.ekf.com/s/sc2/img/sc2_backplane.pdf © EKF ekf.com...

  • Page 9: Related Information

    ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor 8 + 1 Slots CompactPCI® Serial Backplane Related Information SC2-PRESTO Home www.ekf.com/s/sc2/sc2.html SC2-PRESTO User Guide www.ekf.com/s/sc2/sc2_ug.pdf General Information CompactPCI® PlusIO & CompactPCI® Serial CompactPCI® Serial Concise Overview www.ekf.com/s/serial_concise.pdf...
  • Page 10 SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Local Expansion The SC2-PRESTO is equipped with a set of high- Most mezzanine side cards can accommodate speed local expansion interface connectors, in addition a 2.5-inch drive. Typically, the...
  • Page 11 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor SC2-PRESTO w. SCS-TRUMPET Mezzanine Side Card 8HP Assembly © EKF -11- ekf.com...
  • Page 12 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor SC2-PRESTO Local Expansion I/F Connectors © EKF -12- ekf.com...
  • Page 13 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor SC2-PRESTO w. C47-MSATA Mezzanine Module 4HP Assembly C47-MSATA • Low Profile Dual-SSD Mezzanine Module © EKF -13- ekf.com...
  • Page 14 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor C48-M2 • Low Profile Dual M.2 SATA SSD Mezzanine Module SC2-PRESTO w. C48-M2 SATA Mezzanine Storage Modul 4HP Assembly © EKF -14- ekf.com...
  • Page 15 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor SC2-PRESTO w. C41-CFAST Mezzanine Module 4HP Assembly SC2-PRESTO w. C42-SATA Mezzanine Module 4HP Assembly © EKF -15- ekf.com...
  • Page 16 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor SC2-PRESTO w. C44-SATA Mezzanine Module 8HP Assembly SC2-PRESTO w. C45-SATA Mezzanine Module 8HP Assembly © EKF -16- ekf.com...
  • Page 17 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor 8HP Assembly w. SCS-TRUMPET Side Card & 2.5-Inch SATA SSD 8HP Assembly w. SCS-TRUMPET Side Card & Dual M.2 SATA SSD © EKF -17- ekf.com...
  • Page 18 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Block Diagram DDR3 ECC Soldered DDR3 ECC SODIMM www.ekf.com/s/sc2/img/sc2_blk.pdf © EKF -18- ekf.com...

  • Page 19: Front Panel Options

    ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Front Panel Options USB 3.0 USB 3.0 SC2-PRESTO SC2-PRESTO Dual - mDP Option Screw-Locked mDP Cable Connectors © EKF -19- ekf.com...
  • Page 20 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Sample Front Panel Options 8HP USB 3.0 USB 3.0 USB 3.0 USB 3.0 USB 3.0 USB 3.0 SC2-PRESTO SCS-TRUMPET SC2-PRESTO SCS-TRUMPET SC2-PRESTO SC2-PRESTO SCS-TRUMPET SCS-TRUMPET Dual - mDP...
  • Page 21 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Sample Front Panel Options 12HP USB 3.0 USB 3.0 USB 3.0 USB 3.0 SC2-PRESTO SCS-TRUMPET SC2-PRESTO SCS-TRUMPET C32-FIO C32-FIO Dual - mDP Dual - mDP 1 x RS-232 5.
  • Page 22 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Major Components Top / Bottom View PCIE Top Side Component Assembly SC2-PRESTO • CompactPCI ® Serial • © • ekf.com DS-P Bottom Side Component Assembly P-XDP P-ISP...

  • Page 23: Ordering Information

    ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor SC2-PRESTO Ordering Information For popular SC2-PRESTO SKUs please refer to www.ekf.com/liste/liste_21.html#SC2 For popular Mezzanine Side Cards please refer to www.ekf.com/liste/liste_20.html#C40 © EKF -23- ekf.com...
  • Page 24 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor SRS-BLUBOXX Series for up to 4 Peripheral Slot Cards © EKF -24- ekf.com...
  • Page 25 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor SRS-4401-RACK for up to 8 Peripheral Slot Cards Custom Specific Racks 19-Inch © EKF -25- ekf.com...
  • Page 26 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor SC2-PRESTO w. C48-M2 Mezzanine SATA SSD Module SC2-PRESTO w. SCS-TRUMPET Side Card & Dual Backplane © EKF -26- ekf.com...
  • Page 27 ® SC2-PRESTO • CompactPCI Serial CPU Board • 4 Generation Intel® Core™ Processor Industrial Computers Made in Germany boards. systems. solutions. EKF Elektronik GmbH Phone +49 (0)2381/6890-0 Philipp-Reis-Str. 4 (Haus 1) Fax +49 (0)2381/6890-90 Lilienthalstr. 2 (Haus 2) Internet www.ekf.com 59065 HAMM E-Mail sales@ekf.com...
