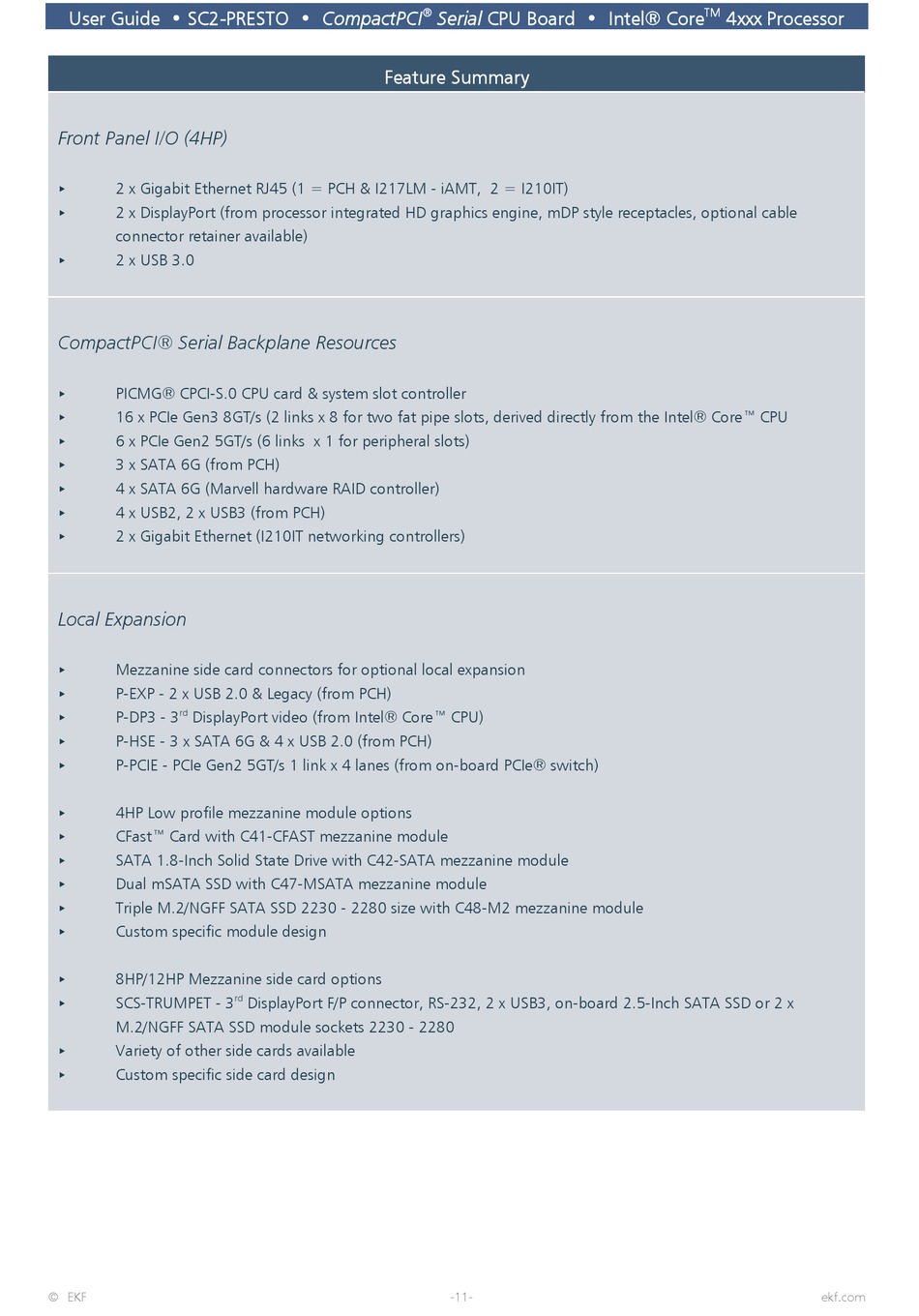

EKF SC2-PRESTO CompactPCI User Manual page 11

User Guide • SC2-PRESTO • CompactPCI
Front Panel I/O (4HP)
2 x Gigabit Ethernet RJ45 (1 = PCH & I217LM - iAMT, 2 = I210IT)
<
2 x DisplayPort (from processor integrated HD graphics engine, mDP style receptacles, optional cable
<
connector retainer available)
< 2 x USB 3.0
CompactPCI® Serial Backplane Resources
PICMG® CPCI-S.0 CPU card & system slot controller
<
16 x PCIe Gen3 8GT/s (2 links x 8 for two fat pipe slots, derived directly from the Intel® Core™ CPU
<
6 x PCIe Gen2 5GT/s (6 links x 1 for peripheral slots)
<
< 3 x SATA 6G (from PCH)
4 x SATA 6G (Marvell hardware RAID controller)
<
4 x USB2, 2 x USB3 (from PCH)
<
2 x Gigabit Ethernet (I210IT networking controllers)
<
Local Expansion
< Mezzanine side card connectors for optional local expansion
P-EXP - 2 x USB 2.0 & Legacy (from PCH)
<
rd
P-DP3 - 3 DisplayPort video (from Intel® Core™ CPU)
<
P-HSE - 3 x SATA 6G & 4 x USB 2.0 (from PCH)
<
< P-PCIE - PCIe Gen2 5GT/s 1 link x 4 lanes (from on-board PCIe® switch)
4HP Low profile mezzanine module options
<
< CFast™ Card with C41-CFAST mezzanine module
< SATA 1.8-Inch Solid State Drive with C42-SATA mezzanine module
Dual mSATA SSD with C47-MSATA mezzanine module
<
Triple M.2/NGFF SATA SSD 2230 - 2280 size with C48-M2 mezzanine module
<
< Custom specific module design
8HP/12HP Mezzanine side card options
<
SCS-TRUMPET - 3
<
M.2/NGFF SATA SSD module sockets 2230 - 2280
Variety of other side cards available
<
Custom specific side card design
<
© EKF
Feature Summary
rd
DisplayPort F/P connector, RS-232, 2 x USB3, on-board 2.5-Inch SATA SSD or 2 x
®
Serial CPU Board • Intel® Core
-11-
TM
4xxx Processor
