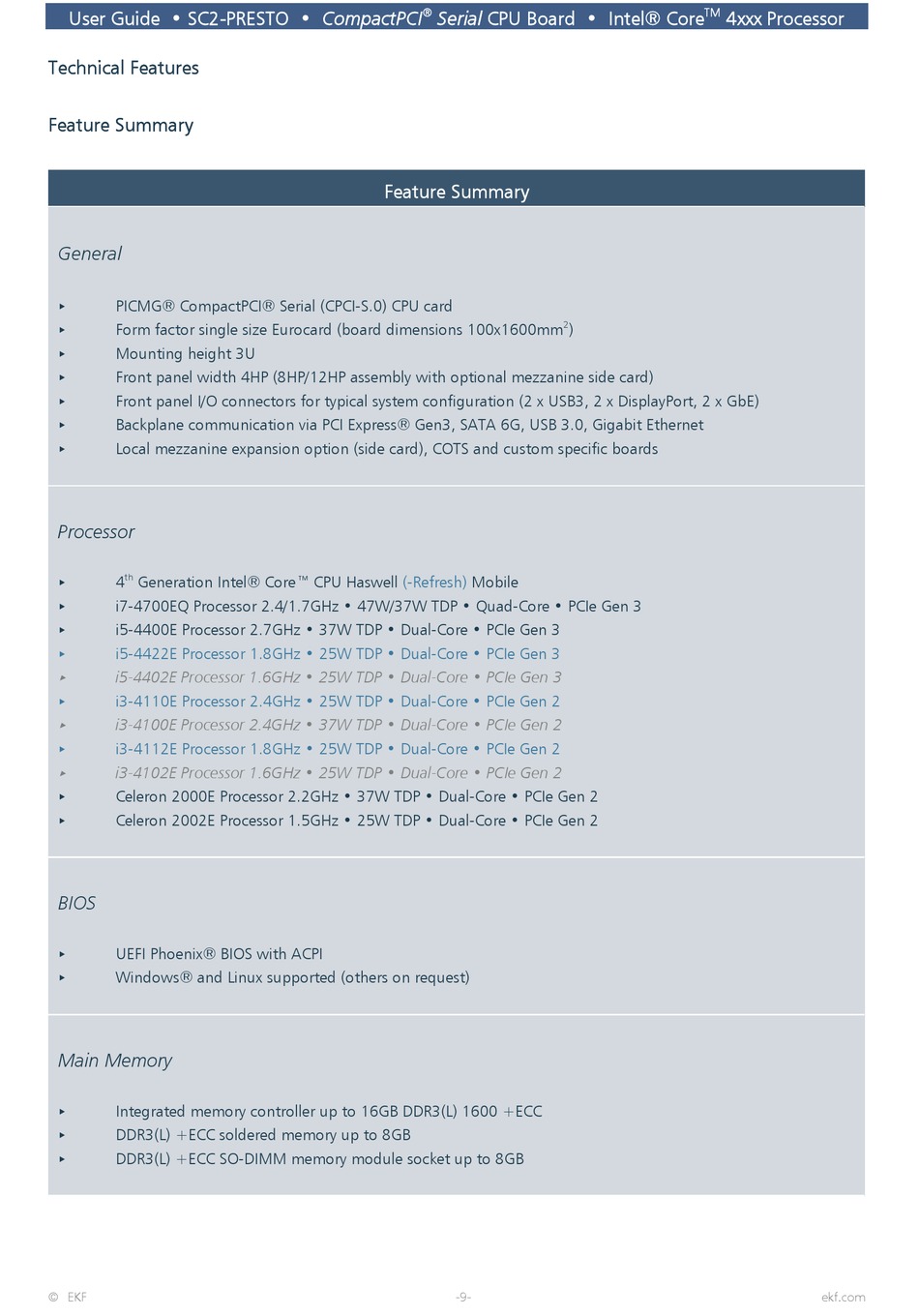

Technical Features

Feature Summary

General
PICMG® CompactPCI® Serial (CPCI-S.0) CPU card
<
Form factor single size Eurocard (board dimensions 100x1600mm
<
Mounting height 3U
<
< Front panel width 4HP (8HP/12HP assembly with optional mezzanine side card)
Front panel I/O connectors for typical system configuration (2 x USB3, 2 x DisplayPort, 2 x GbE)
<
Backplane communication via PCI Express® Gen3, SATA 6G, USB 3.0, Gigabit Ethernet
<
Local mezzanine expansion option (side card), COTS and custom specific boards
<
Processor
th
< 4 Generation Intel® Core™ CPU Haswell
i7-4700EQ Processor 2.4/1.7GHz • 47W/37W TDP • Quad-Core • PCIe Gen 3
<
i5-4400E Processor 2.7GHz • 37W TDP • Dual-Core • PCIe Gen 3
<
i5-4422E Processor 1.8GHz • 25W TDP • Dual-Core • PCIe Gen 3
<
<
i5-4402E Processor 1.6GHz • 25W TDP • Dual-Core • PCIe Gen 3
i3-4110E Processor 2.4GHz • 25W TDP • Dual-Core • PCIe Gen 2
<
< i3-4100E Processor 2.4GHz • 37W TDP • Dual-Core • PCIe Gen 2
i3-4112E Processor 1.8GHz • 25W TDP • Dual-Core • PCIe Gen 2
<
<
i3-4102E Processor 1.6GHz • 25W TDP • Dual-Core • PCIe Gen 2
Celeron 2000E Processor 2.2GHz • 37W TDP • Dual-Core • PCIe Gen 2
<
Celeron 2002E Processor 1.5GHz • 25W TDP • Dual-Core • PCIe Gen 2
<
BIOS
< UEFI Phoenix® BIOS with ACPI
< Windows® and Linux supported (others on request)
Main Memory
Integrated memory controller up to 16GB DDR3(L) 1600 +ECC
<
DDR3(L) +ECC soldered memory up to 8GB
<
< DDR3(L) +ECC SO-DIMM memory module socket up to 8GB
