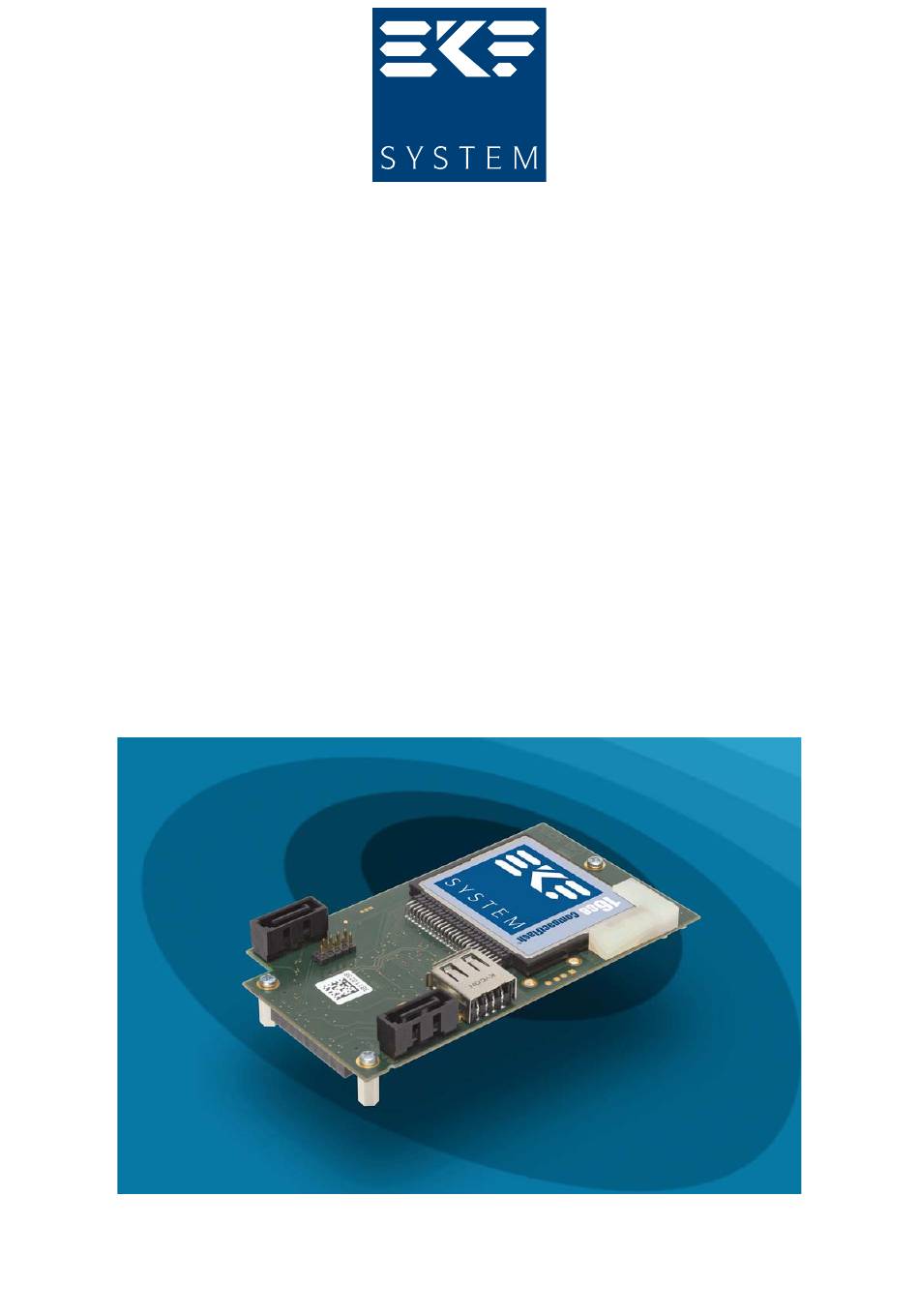

- Page 1 Technical Information C40-SCFA CompactFlash Mezzanine Module SATA & USB Document No. 5180 • Ed. 5 • 29 March 2012...
-
Page 2: Table Of Contents
Top View Component Assembly C40-SCFA ........12... -
Page 3: About This Manual
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module About this Manual This manual is a short form description of the technical aspects of the C40-SCFA, required for installation and system integration. It is intended for the advanced user only. -
Page 4: Related Documents
For a description of the CCM-BOOGIE or PC1-GROOVE CPU cards, which may act as carrier board with respect to the C40-SCFA, please refer to the correspondent CPU user guide, available by download (change URL accordingly for other potential carrier cards). -
Page 5: Standards
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module Standards Specifications/Standards CompactFlash CompactFlash Specification Rev. 4.1 (www.compactflash.org) SATA Serial ATA 2.5/2.6 Specification (www.sata-io.org) Universal Serial Bus Revision 2.0 specification (www.usb.org/developers) C40-SCFA (CF Card) over CCM-BOOGIE CPU Carrier Card © EKF... -
Page 6: C40-Scfa Features
2002/95/EC (RoHS) < MTBF Not all of the connectors may be present or functional on your actual C40-SCFA board; assembly is highly custom specific. Options may be exclusive, i.e. not necessarily concurrently present. Discuss your needs with EKF before ordering. -
Page 7: Short Description
Some of the population options mentioned may exceed the 4HP total stack height for the CPU carrier board and C40-SCFA assembly. Please read carefully the respective notes (subchapters 'P-UFD1 P-UFD2', 'J-USB3 J-USB4', and 'P-SATA2 P-SATA3'. For some EKF expansion boards slight violations of the 4HP envelope may be tolerable. - Page 8 Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module C40-SCFA (CF Card Version) on a CPU Carrier Board CCM-BOOGIE C40-SCFA (USB SSD Module Version) on the CCM-BOOGIE © EKF ekf.com...
- Page 9 Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module C40-SCFA (CF Card) over PC1-GROOVE CPU Carrier Board © EKF ekf.com...
- Page 10 Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module C40-SCFA (USB SSD) over PC1-GROOVE CPU Carrier Board © EKF -10- ekf.com...
-
Page 11: Block Diagram C40-Scfa
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module Block Diagram C40-SCFA Simplified Block Diagram C40-SCFA 4GB/8GB USB SSD Flash Drive Option Option Option SanDisk SDUS5EB STEC SLUFDM Receptacles Intel Z-U130 SSDUSMS 4GB/8GB USB SSD Flash Drive Option High Speed... -
Page 12: Top View Component Assembly C40-Scfa
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module Top View Component Assembly C40-SCFA UFD1 UFD1 USB SSD USB SSD P-SATA2 P-SATA2 PATA RAID RAID Bridge J-USB3 J-USB3 C40-SCFA P-CF C40-SCFA J-USB4 CompactFlash Dual-SSD Option UFD2 Insert CF Card... - Page 13 Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module C40-SCFA Top View (CF Card Version) C40-SCFA Top View (USB Module Version) C40-SCFA (Bottom View) © EKF -13- ekf.com...
-
Page 14: Installing And Replacing Components
Store the board only in its original ESD protected packaging. Retain the original packaging (antistatic bag and antistatic box) in case of returning the board to EKF for repair. © EKF -14- ekf.com... -
Page 15: Installing The Board Assembly
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module Installing the Board Assembly Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage. -
Page 16: Removing The Board Assembly
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module Removing the Board Assembly Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage. -
Page 17: Emc Recommendations
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module EMC Recommendations In order to comply with the CE regulations for EMC, it is mandatory to observe the following rules: The chassis or rack including other boards in use must comply entirely with CE... -
Page 18: Technical Reference - Connectors
Please Note The C40-SCFA mezzanine module may be equipped with several on-board connectors for system internal usage. Not all of these connectors may be present on a particular board. Be sure to specify your individual needs when ordering the C40-SCFA board. Characteristic features and the pin assignments of each connector are described on the following pages. -
Page 19: I/O Connectors
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module I/O Connectors The C40-SCFA can be equipped with several top side connectors. Some of these connectors are available as an option only or exclusive to each other, and therefore may not be functional or even present on your actual board. - Page 20 Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module Carrier Board PCB 9.0mm P-MEZ SATA SATA Side Board 4HP Pitch Sectional Drawing (North View) - SATA & USB LPC/USB/AUDIO PCI Express x 4 UFD1 USB SSD P-SATA2 RAID C40-SCFA...
-
Page 21: P-Cf Compactflash Header
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module P-CF CompactFlash Header As an option, the C40-SCFA can be provided with a CompactFlash pin header P-CF. It is suitable for CF cards operated in True IDE Mode (i.e. all popular CF memory cards), which are available up to 16GB as of current. - Page 22 Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module P-CF CompactFlash Header Assembly 1.27mm pitch terminal strip 218.2.050.20 © EKF • 218.2.050.20 • ekf.com CompactFlash pin header assembly IDE_DD11 IDE_DD03 IDE_DD12 IDE_DD04 IDE_DD13 IDE_DD05 IDE_DD14 IDE_DD06 IDE_DD15 IDE_DD07 IDE_CS1#...
-
Page 23: P-Sata2 P-Sata3
Usage of P-SATA2/3 exceeds the 4HP total height of the board assembly (carrier board together with C40-SCFA mezzanine) by ~10mm, a cable harness with R/A SATA plug assumed. This is not tolerable for an additional 4HP mezzanine expansion card such as the CCL-CAPELLA or the CCI-RAP. Discuss your actual needs with sales@ekf.de before ordering. -
Page 24: P-Ufd1 P-Ufd2
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module P-UFD1 P-UFD2 As a custom specific option, the C40-SCFA can be provided with one or two USB SSD (Solid State Drive) low profile mezzanine modules. However, the total stack height of the CPU carrier board and the C40-SCFA mezzanine module assembly would then exceed the 4HP envelope up to ~ 1.8mm. - Page 25 Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module C40-SCFA (USB SSD) over CCM-BOOGIE CPU Carrier Card © EKF -25- ekf.com...
-
Page 26: J-Usb3 J-Usb4
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module J-USB3 J-USB4 As a custom specific option, the C40-SCFA can be provided with one or two USB receptacles. Due to the USB connector dimensions, the total stack height of the CPU carrier board and the C40-SCFA mezzanine module assembly will exceed the 4HP envelope about ~1.3mm. -
Page 27: Inter-Board Connector
CPU board and its successors. The inter-board connector is situated at the bottom of the C40-SCFA and establishes the data path and power link to the carrier board CPU via J-HSE. Since the C40-SCFA comes typically mounted as a unit together with the CCM-BOOGIE, there is normally no need for the user to get access to the inter-board connector. -
Page 28: P-Mez
1) 2) Switched voltages from carrier board, according to CPU sleep state S0 This SATA channel has been derived from ICH southbridge (dedicated to PATA bridge on C40-SCFA CompactFlash mezzanine module) These SATA channels are derived from the additional secondary PCIe SATA controller, RAID 0/1/10 capable... - Page 29 Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module Low Profile Mezzanine Storage Card Area C40-SCFA (CF Card) over PC2-LIMBO CPU Carrier Board © EKF -29- ekf.com...
-
Page 30: Schematics
Complete circuit diagrams for this product are available for customers on request. Signing of a non- disclosure agreement would be needed. Please contact sales@ekf.de for details. EKF reserves the right to refuse distribution of confidential information material for any reason that EKF may consider substantial. -
Page 31: Ordering Information
Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module Ordering Information Ordering Information For popular C40-SCFA SKUs please refer to www.ekf.com/liste/liste_20.html#C40 Alternate Products Low Profile CPU Card Mezzanine Storage Modules C41-CFAST CFast™ www.ekf.com/c/ccpu/c41/c41_tie.pdf C42-SATA Micro SATA www.ekf.com/c/ccpu/c42/c42_tie.pdf C47-MSATA Dual mSATA www.ekf.com/c/ccpu/c47/c47.html... - Page 32 Technical Information C40-SCFA • CF Card SATA USB Mezzanine Module Industrial Computers Made in Germany boards. systems. solutions. EKF Elektronik GmbH Phone +49 (0)2381/6890-0 Philipp-Reis-Str. 4 Fax +49 (0)2381/6890-90 59065 Hamm Internet www.ekf.com Germany E-Mail info@ekf.com...
