EKF PC1-62-GROOVE User Manual

Compactpci plusio core i7 processor high performance cpu card

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

User Guide

CompactPCI

PC1-GROOVE •

® PlusIO

Core™ i7 Processor High Performance CPU Card

Suitable for Classic CompactPCI© and PICMG 2.30 CompactPCI® PlusIO Systems

Document No. 5713 • Edition 26 • 16 January 2015

PC1-GROOVE

Table of Contents

Need help?

Do you have a question about the PC1-62-GROOVE and is the answer not in the manual?

Questions and answers

Summary of Contents for EKF PC1-62-GROOVE

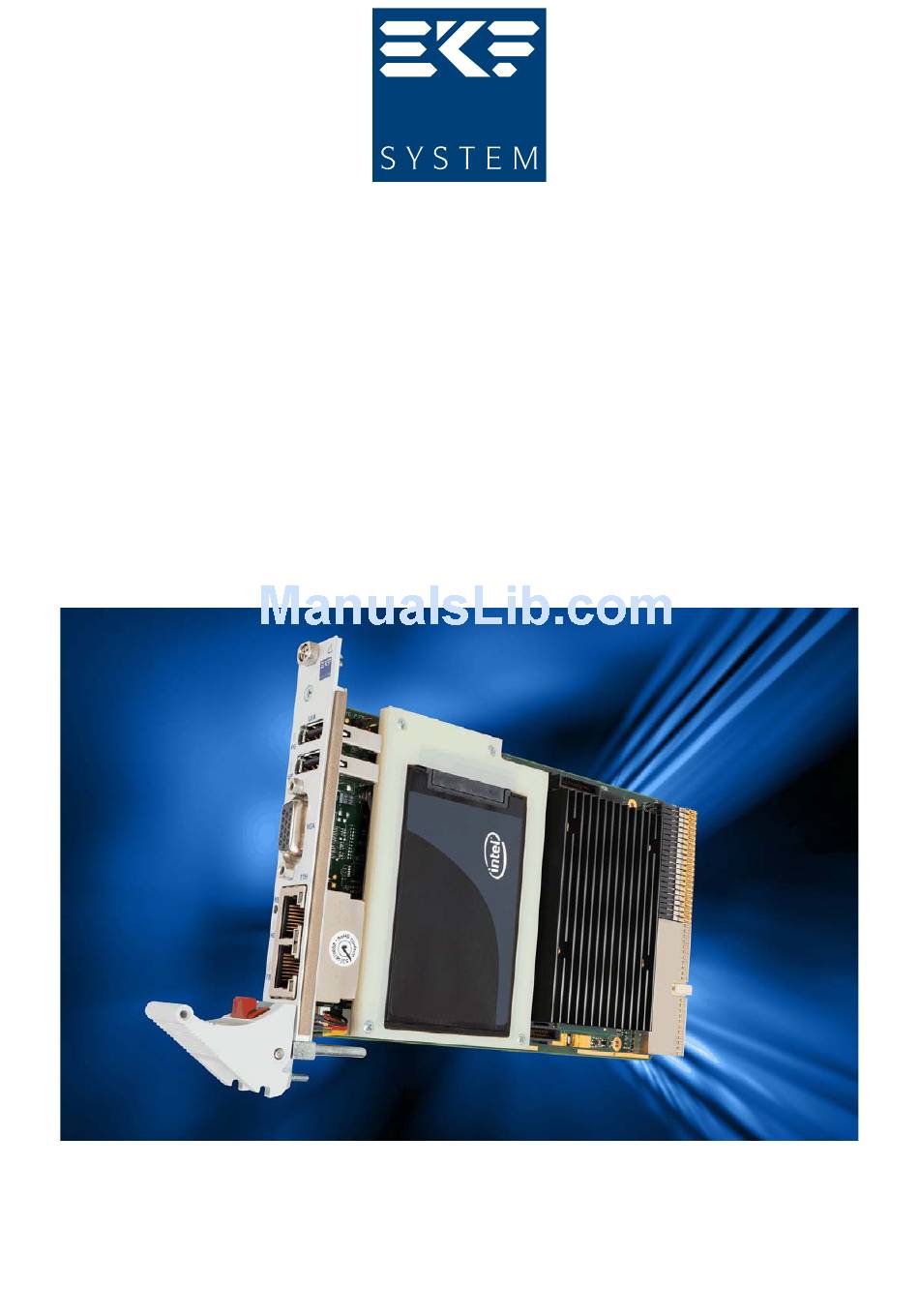

Page 1 User Guide CompactPCI PC1-GROOVE • ® PlusIO Core™ i7 Processor High Performance CPU Card Suitable for Classic CompactPCI© and PICMG 2.30 CompactPCI® PlusIO Systems Document No. 5713 • Edition 26 • 16 January 2015 PC1-GROOVE...
Page 4: About This Manual
Added recommendation regarding DsiplayPort cable (pin 20 issue) 5 March 2013 Added information regarding selection of suitable intermediate PCB for 3 April 2013 mezzanine connector SDVO2 Added photos PC1-PCS assemblyies 29 April 2013 Clarified resetting of UEFI BIOS settings to factory defaults 2015-01-16 © EKF ekf.com...
Page 5: Related Documents
This manual has been edited as carefully as possible. We apologize for any potential mistake. Information provided herein is designated exclusively to the proficient user (system integrator, engineer). EKF can accept no responsibility for any damage caused by the use of this manual. © EKF...
Page 6: Standards
High Definition Audio Specification Rev.1.0 www.intel.com/design/chipsets/hdaudio.htm ® PCI Express PCI Express Base Specification 1.1 www.pcisig.com PCI Local Bus PCI 2.2/2.3/3.0 Standards PCI SIG www.pcisig.com SATA Serial ATA 2.5/2.6 Specification www.sata-io.org Trusted Platform Module 1.2 https://www.trustedcomputinggroup.org Universal Serial Bus Specification www.usb.org © EKF ekf.com...
Page 7: Pc1-Groove Features
< connector Mezzanine option: Secondary DVI-D connector at mezzanine card front panel allows for < dual digital flat panel operation, suitable mezzanine modules e.g. CCH-MARIACHI, CCI- RAP, CCJ-RHYTHM, CCO-CONCERT. Side boards providing a 2nd DisplayPort are projected © EKF ekf.com...
Page 8 C42-SATA: 1.8-inch SATA Solid State Drive (SSD), 4HP envelope maintained Suitable PlusIO backplanes available (e.g. Schroff) < CompactPCI® High-Speed UHM connector < PlusIO 4 x PCIe < 4 x Serial ATA (SATA) < < 2 x Gbit Ethernet < 4 x USB © EKF ekf.com...
Page 9 Available as discrete controller on several mezzanine boards e.g. CCH/CCI/CCJ < Discrete crypto engine silicon brands Infineon or Atmel at users choice < BIOS < Phoenix BIOS with EKF enhancements for embedded systems < SPI Flash memory 2 x 16/32/64 Mb Updates available from website ekf.com < Drivers Intel®...
Page 10 Performance Board Processor CPU/MEM Score Rating PC1-6-GROOVE i7-610E Measured with PCMark2005 PC1-4-GROOVE i7-620LE under Windows® XP, 2 x 2GB PC1-2-GROOVE i7-620UE DDR3 1066 Table items are subject to technical changes PC1-GROOVE (Option DisplayPort) and C41-CFast Module © EKF -10- ekf.com...
Page 11: Block Diagram Pc1-Groove
PCIe Switch Core™ i7 i7-610E 2.53/3.2GHz SV i7-620LE 2.0/2.8GHz LV i7-660UE 1.33/2.4GHz ULV i7-620UE 1.06/2.13GHz ULV Document #1167 DMI2 Sheet 2 Intel® Low Power Platform Calpella+ECC Simplified Block Diagram PC1-GROOVE Sheet 1 - CPU & RAM © EKF -11- ekf.com...
Page 12 PCIe 1.6 Flash PCIe 1.3 PCIe 1.7 Flash PCIe 1.4 82574 PCIe 1.8 PCIe 1.1 - 1.2 Sheet 4 2 x 82574 PCIe 1.5 Simplified Block Diagram PC1-GROOVE Sheet 2 - PCH Sheet 3 PCIe to SATA © EKF -12- ekf.com...
Page 13 Sheet 2 Opt. Mezz. Exp. Board GPIO Sheet 2 HD Audio Hanksville SMBUS PCIe PCIe 0.1 - 0.4 PCIe 2.1 - 2.4 Sheet 1 Gen2 Switch PEX 8614 12 x 12 PCIe 3.1 - 3.4 Sheet 4 © EKF -13- ekf.com...
Page 14 PCIe 1.1 - 1.2 82574 PICMG 2.30 Sheet 2 SATA PlusIO RIO Hanksville CPCI Serial Backplane Sheet 3 PCIe 3.1 - 3.4 PCIe Switch CPCI CompactPCI Sheet 2 Backplane 32-Bit Simplified Block Diagram PC1-GROOVE Sheet 4 - Backplane Connectors © EKF -14- ekf.com...
Page 15: Top View Component Assembly
® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board Top View Component Assembly SODIMM DDR3 © EKF -15- ekf.com...
Page 16 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PC1-GROOVE Top View PC1-GROOVE Bottom View © EKF -16- ekf.com...
Page 17: Strapping Headers
Jumper to generate Power Button Events (Front Panel Handle Switch) P-ISP PLD Programming Connector, not stuffed P-GP Jumper to reset UEFI BIOS Setup to EKF Factory Defaults P-MFG Jumper to enter Manufacturing Mode, not stuffed P-RTC Jumper to reset RTC Core of PCH, not stuffed Connectors &...
Page 18: Microprocessor
Cores min/max Cache [°C] [GHz] [MB] ULV Core i7-620UE 0.67/1.06 0-105 20652h SLBPA ULV Core i7-660UE 0.67/1.33 0-105 20655h SLBWV LV Core i7-620LE 1.20/2.00 0-105 20652h SLBP9 SV Core i7-610E 1.20/2.53 0-105 20652h SLBRZ © EKF -18- ekf.com...
Page 19: Thermal Considerations
(e.g. bottom mount fan unit) is strongly recommended (>20m /h or 2m/s (400LFM) around the CPU slot). Be sure to thoroughly discuss your actual cooling needs with EKF. Generally, the faster the CPU speed the higher its power consumption. For higher ambient temperatures, consider increasing the forced airflow to 3m/s (600LFM) or more.
Page 20: Main Memory
(i.e. the SODIMM socket may be left empty). The contents of the SPD EEPROM on the SO-DIMM is used by the BIOS at POST (Power-on Self Test) to get any necessary timing parameters to program the memory controller within the chipset. © EKF -20- ekf.com...
Page 21: Graphics Subsystem
DisplayPort and an SDVO port is fed to the on-board connector J-SDVO2. Currently expansion boards like CCH-MARIACHI feature the display transmitter to provide a DVI channel via a pure digital DVI-D connector. Future EKF expansion boards will feature also the possibility to gain access to a 2 DisplayPort interface.
Page 22: Serial Ata Interface (Sata)
See section “Configuration Switches PCI Express Link Width (DSW1)” for details. While the link speed on the upstream side of the switch is restricted to 2.5GT/s due to limitations of the PCH QM57, the downstream ports may support also PCIe Gen 2 speed (5GT/s). © EKF -22- ekf.com...
Page 23: Universal Serial Bus (Usb)
The SPI flash contents can be reprogrammed (if suitable) by a DOS or Linux based tool. This program and the latest PC1-GROOVE BIOS binary are available from the EKF website. Read carefully the enclosed instructions. If the programming procedure fails e.g. caused by a power interruption, the PC1-GROOVE may no more be operable.
Page 24: Reset
Immediately after that push up the ejector back to its original position (the red button jumps up as well). Animated GIF: www.ekf.com/c/ccpu/img/reset_400.gif NOTE: To prevent the board to cause a power button override, the handle should be closed immediately after unlocking the front panel handle.
Page 27: Watchdog
The watchdog remains in the active state until the next system reset. There is no way to disable it once it has been put on alert, whereas it is possible to reprogram its time-out value at any time. © EKF -27-...
Page 28: Pg (Power Good) Led
A red blinking GP LED is an indication that the BIOS code couldn't start. For details please refer to www.ekf.com/p/pc1/firmware/biosinfo.txt. After successful operating system boot, the GP LED is not dedicated to any particular hardware or firmware function with exception of special states of the LED PG as described above.
Page 29: Eb (Ethernet Backplane) Led
DEG# or FAL#. These active low lines are additions of the CompactPCI specification and may be driven by the power supply. DEG# signals the degrading of the supply voltages, FAL# their possible failure. On the PC1-GROOVE the signals FAL# and DEG# are routed to the PCH GPI4 and GPI5 respectively. © EKF -29- ekf.com...
Page 30: Mezzanine Side Board Options
The PC1-GROOVE is provided with several stacking connectors for attachment of a mezzanine expansion module (aka side board), suitable for a variety of readily available mezzanine cards (please refer to www.ekf.com/c/ccpu/mezz_ovw.pdf for a more comprehensive overview). EKF furthermore offers custom specific development of side boads (please contact sales@ekf.de).
Page 31 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board Low Profile Storage Module Area PC1-GROOVE with C47-MSATA RAID Mezzanine Module © EKF -31- ekf.com...
Page 32 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PC1-GROOVE w. C41-CFAST Mezzanine Module PC1-GROOVE w. C41-CFAST Mezzanine Module © EKF -32- ekf.com...
Page 33 User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PC1-GROOVE w. C42-SATA Mezzanine Module Related Documents Mezzanine Modules and Side Cards C40 ... C45 Series www.ekf.com/c/ccpu/c4x_mezz_ovw.pdf Mezzanine Storage Modules Mezzanine Modules Overview www.ekf.com/c/ccpu/mezz_ovw.pdf The EKF Mezzanine Module Concept www.ekf.com/c/ccpu/cpci_mezzanine_evolution.pdf © EKF -33- ekf.com...
Page 34 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board C41-CFAST Mezzanine Module C42-SATA Mezzanine Module © EKF -34- ekf.com...
Page 35 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board C43-SATA Mezzanine Module PC1-GROOVE • C44-SATA Side Card © EKF -35- ekf.com...
Page 36 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board C45-SATA Side Card PC1-GROOVE • C45-SATA (Removable SSD) © EKF -36- ekf.com...
Page 37 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PC1-GROOVE • C45-SATA (Internal SSD) Custom Specific Mezzanine Module Design © EKF -37- ekf.com...
Page 38: Compactpci ® Plusio Option
4 x USB ekf.com 2 x GE Dual J-SDVO2 PC1-GROOVE • CompactPCI® PlusIO • © EKF • ekf.com ® Warning: Do not operate the PC1-GROOVE in systems with a 64-bit CompactPCI backplane. The ® J2/P2 pin assignments of a 64-bit CPCI backplane differ substantially from a CompactPCI PlusIO backplane, which may result in a short circuit situation.
Page 39 CompactPCI 32-Bit Peripheral Slots CPCIS.0 Peripheral Slots © • ekf.com Sample Small Systems Hybrid Backplane Related Documents CompactPCI® PlusIO & CompactPCI® Serial CompactPCI® PlusIO & Serial Overview www.ekf.com/s/cpci_serial_overview.pdf CompactPCI® PlusIO Home www.ekf.com/p/plus.html CompactPCI® Serial Home www.ekf.com/s/serial.html © EKF -39- ekf.com...
Page 40 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PC1-GROOVE as System Controller in a Hybrid System Sample Hybrid CompactPCI® & CompactPCI® Serial Backplanes © EKF -40- ekf.com...
Page 41 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board Sample Hybrid System Rack Sample Hybrid System Rack © EKF -41- ekf.com...
Page 42 As an alternate, the PC1-GROOVE can be combined with a CompactPCI PlusIO rear I/O transition module, such as the PR1-RIO, which is provided with I/O connectors (on-board and back-panel) for all high speed signals. PR1-RIO • Rear I/O Transition Module PR1-RIO w. on-Board USB Stick © EKF -42- ekf.com...
Page 43 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PR1-RIO w. on-Board PE Cable Connectors © EKF -43- ekf.com...
Page 44 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PC1-GROOVE & PR1-RIO PC1-GROOVE & PR1-RIO © EKF -44- ekf.com...
Page 45: Installing And Replacing Components
Store the board only in its original ESD protected packaging. Retain the original packaging (antistatic bag and antistatic box) in case of returning the board to EKF for repair. © EKF -45- ekf.com...
Page 46: Installing The Board
Insert card carefully (be sure not to damage components mounted on the bottom side of the board by scratching neighboured front panels) A card with onboard connectors requires attachment of associated cabling now Lock the ejector lever, fix screws at the front panel (top/bottom) Retain original packaging in case of return © EKF -46- ekf.com...
Page 47: Removing The Board
Store board in the original packaging, do not touch any components, hold the board at the front panel only Warning Do not expose the card to fire. Battery cells and other components could explode and cause personal injury. © EKF -47- ekf.com...
Page 48: Emc Recommendations
External communications cable assemblies must be shielded (shield connected only at one end of the cable) Use ferrite beads for cabling wherever appropriate Some connectors may require additional isolating parts Reccomended Accessories Blind CPCI Front EKF Elektronik Widths currently available Panels (1HP=5.08mm): with handle 4HP/8HP without handle...
Page 49: Installing Or Replacing The Memory Module
CMOS RAM. The battery should last during the lifetime of the PC1-GROOVE. For replacement, the old battery must be unsoldered, and the new one soldered. We suggest that you send back the board to EKF for battery replacement. Warning Danger of explosion if the battery is incorrectly replaced or shorted.
Page 50: Technical Reference
PCIe Switch (PEX8614) 0x197B 0x2363 PCIe-SATA-Bridge (JMB362 Rev. A) 0x2362 PCIe-SATA-Bridge (JMB362 Rev. C) 0x8086 0x10D3 Ethernet Controller NC2 (82574) Depends on BIOS settings. Bus number can vary depending on the PCI enumeration schema implemented in BIOS. © EKF -50- ekf.com...
Page 51: Local Smb Devices
Beside the continuous measuring of temperatures and voltages the LM87 may compare these values against programmable upper and lower boundaries. As soon as a measurement violates the allowed value, the LM87 may request an interrupt via the GPI13 of the PCH. © EKF -51- ekf.com...
Page 52: Gpio Usage
Not used on PC1 (pulled via resistor to +3.3V) GPIO 31 3.3V ACPRESENT Not used on PC1 (pulled via resistor to +3.3V) GPIO 32 3.3V CLKRUN# Fixed to chipset internal function GPIO 33 3.3V MFG_JUMP# Select Manufacturing Mode Jumper P-MFG © EKF -52- ekf.com...
Page 53 Not used on PC1 (pulled via resistor to +3.3V) GPIO 73 3.3V NC1_CLKREQ# Multiplexed with chipset internal function GPIO 74 3.3V Not used on PC1 (pulled via resistor to +3.3V) GPIO 75 3.3V Not used on PC1 (pulled via resistor to +3.3V) © EKF -53- ekf.com...
Page 54: Configuration Jumpers
4 Links x 1 Lane 1 Link x 4 Lanes CCL-CAPELLA 4 Lanes 4 Links x 1 Lane 1 Link x 4 Lanes CCO-CONCERT 4 Lanes 4 Links x 1 Lane 4 Links x 1 Lane © EKF -54- ekf.com...
Page 55: Loading Uefi Bios Setup Defaults (P-Gp)
For normal operation the jumper should be removed. P-MFG P-MFG Function Jumper OFF Normal Mode Jumper ON Manufacturer Mode This setting is the factory default. P-MFG is not stuffed. © EKF -55- ekf.com...
Page 56: Reset Jumper Pch Rtc Core (P-Rtc)
PCHs RTC core that are important before the CPU starts its work after a system reset. Note that P-RTC will neither set UEFI BIOS Setup to EKF Factory Defaults nor resets the real time clock. To reset the RTC core the board must be removed from the system rack. Short-circuit the pins of P-RTC for about 1 sec.
Page 57: Connectors
A fault in the load presented by the external devices could cause damage to the board, the interconnecting cable and the external devices themselves. Front Panel Connectors Typical PC1-GROOVE Front Panel Elements PC1-GROOVE PC1-GROOVE DisplayPort © EKF -57- ekf.com...
Page 58: Displayport Monitor Connector J-Dp
For attachment of either a classic style analog RGB monitor or DVI type display to the J-DP receptacle, there are both adapters and also adapter cables available, from DisplayPort to the VGA or DVI connector. Plug Style Adapter © EKF -58- ekf.com...
Page 59 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board Plug Style DP to DVI Adapter Cable Adapter DP to DVI Cable Adapter DP to VGA © EKF -59- ekf.com...
Page 60 Unfortunately there are cable assemblies available with pin 20 passed through, with unpredictable results on the system behaviour. Before ordering DP cable assemblies, verify the associated wiring diagram. Sample VESA Compliant DisplayPort Cable Assemblies 2.0m Plug to Plug, w. Latches • EKF Part. #270.66.1.02.0 Manhattan 307116, 391931 Molex...
Page 61: Video Monitor Connector J-Vga
DisplayPort video interface therefore is not available concurrently with this option. J-VGA (Option) GREEN BLUE DDC_POW VGA_DDC_SDA HSYNC VSYNC VGA_DDC_SCL +5V protected by a PolySwitch Fuse 0.5A. This power rail is switched on in S0 state only. © EKF -61- ekf.com...
Page 62: Usb Connectors
USB Ports 1/2 (J-USB1/J-USB2) USB DATA (N) #270.20.04.2 USB DATA (P) ©EKF • ekf.com +5V protected by an Electronic Fuse 0.5A. Power rail may be switched off by software independently for each port. Ethernet Connectors Gigabit Ethernet Ports 1/2 (J-ETH, RJ45)
Page 63: Internal Connectors
WARNING: Neither the +3.3V pin, nor the +5V pin, nor the +12V pin are protected against a short circuit situation! This connector therefore should be used only for attachment of an expansion board. The maximum current flowing across these pins should be limited to 2A per power rail. © EKF -63- ekf.com...
Page 64: High Speed Expansion Connector J-Hse
WARNING: Neither the +3.3V pins, nor the +5V pins, nor the +12VA pin are protected against a short circuit situation! This connector therefore should be used only for attachment of the C40-SCFA adapter or an expansion board. The maximum current flowing across these pins should be limited to 2A per power rail. © EKF -64- ekf.com...
Page 65: Pci Express Expansion Header J-Pcie
Power rail switched on in state S0 only. WARNING: Neither the +3.3V pin, nor the +5V pin are protected against a short circuit situation! The maximum current flowing across these pins should be limited to 2A per power rail. © EKF -65- ekf.com...
Page 66: Sdvo2 Expansion Header J-Sdvo2
With respect to the CCO-CONCERT (DVI) the C26 intermediate PCB must be used. For the PCS-BALLET (DisplayPort) however, the C66 spacer card is required. C26 use with C66 use with CCO-CONCERT (DVI) PCS-BALLET (DP) © EKF -66- ekf.com...
Page 67: Front Panel Handle Microswitch Header P-Fph
The jumper P-FPH is used to perform power button events. By default P-FPH is connected with a short cable to a micro switch located within the front panel handle. The switch performs power button events by short-circuiting the pins 1 and 3 of P-FPH. © EKF 276.02.003.11 ekf.com 1=PWRBTN# 2=NC 3=GND P-FPH ©...
Page 68: Pld Programming Header P-Isp
® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PLD Programming Header P-ISP 240.1.08.ISP © EKF ekf.com 1=3.3V 2=TDO 3=TDI 4=NC 5=KEY 6=TMS 7=GND 8=TCK P-ISP Note: P-ISP is not stuffed. Its footprint is situated at the bottom side of the board.
Page 69: Compactpci J1
This pin is pulled up with 3.0k to J1 pin A4. This pin is not connected. This pin is connected to a decoupling capacitor only and not used on PC1-GROOVE. This pin is connected to power sequencing logic and should pulled low for normal operation. © EKF -69- ekf.com...
Page 70: Compactpci J2 (Plusio)
This pin is pulled up with 1kΩ to V(I/O). Alternate pull up resistor values (e.g. 2.7kΩ for V(I/O)=+3.3V) are available on request. This pin is not connected. This pin is pulled up with 10kΩ to +3.3V. Pin positions printed italic: 64-bit system slot signals (for reference only). Pin positions printed blue: PlusIO options. © EKF -70- ekf.com...
Page 72: Appendix
CompactPCI CPU Board Appendix Mechanical Drawings The following drawing shows the positions of mounting holes and expansion connectors on the PC1-GROOVE. 100.00 94.50 93.50 7.00 J-HSE J-EXP J-SDVO2 J-PCIE PC1-GROOVE © EKF • ekf.com 5.50 © EKF -72- ekf.com...
Page 73 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board Small Industrial Systems Small Industrial Systems © EKF -73- ekf.com...
Page 74 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board Rugged Industrial Systerms Rugged Industrial Systems © EKF -74- ekf.com...
Page 75 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board Full Size Industrial System Custom Specific System © EKF -75- ekf.com...
Page 76 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board C40-SCFA CompactFlash Module C41-CFAST CFast Module © EKF -76- ekf.com...
Page 77 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board C42-SATA 1.8-Inch Micro SATA Module C43-SATA Internal SATA Connector Module © EKF -77- ekf.com...
Page 78 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board C47-MSATA Dual mSATA SSD Module Custom Specific Front Panel Solutions Available © EKF -78- ekf.com...
Page 80 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PC1-GROOVE with C47-MSATA RAID Storage Mezzanine Module © EKF -80- ekf.com...
Page 81 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PC1-GROOVE • PCS-BALLET Side Card (8HP Assembly) PC1-GROOVE • PCS-BALLET Side Card (12HP Assembly) © EKF -81- ekf.com...
Page 82 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PC1-GROOVE w. PCS-BALLET Side Card & C42-SATA Mezzanine © EKF -82- ekf.com...
Page 83 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board PC1-GROOVE w. PCS-BALLET Side Card & C47-MSATA Mezzanine © EKF -83- ekf.com...
Page 84 ® User Guide • PC1-GROOVE • Core i7 CompactPCI CPU Board Industrial Computers Made in Germany boards. systems. solutions. EKF Elektronik GmbH Phone +49 (0)2381/6890-0 Philipp-Reis-Str. 4 Fax +49 (0)2381/6890-90 59065 HAMM Internet www.ekf.com Germany E-Mail sales@ekf.com...
