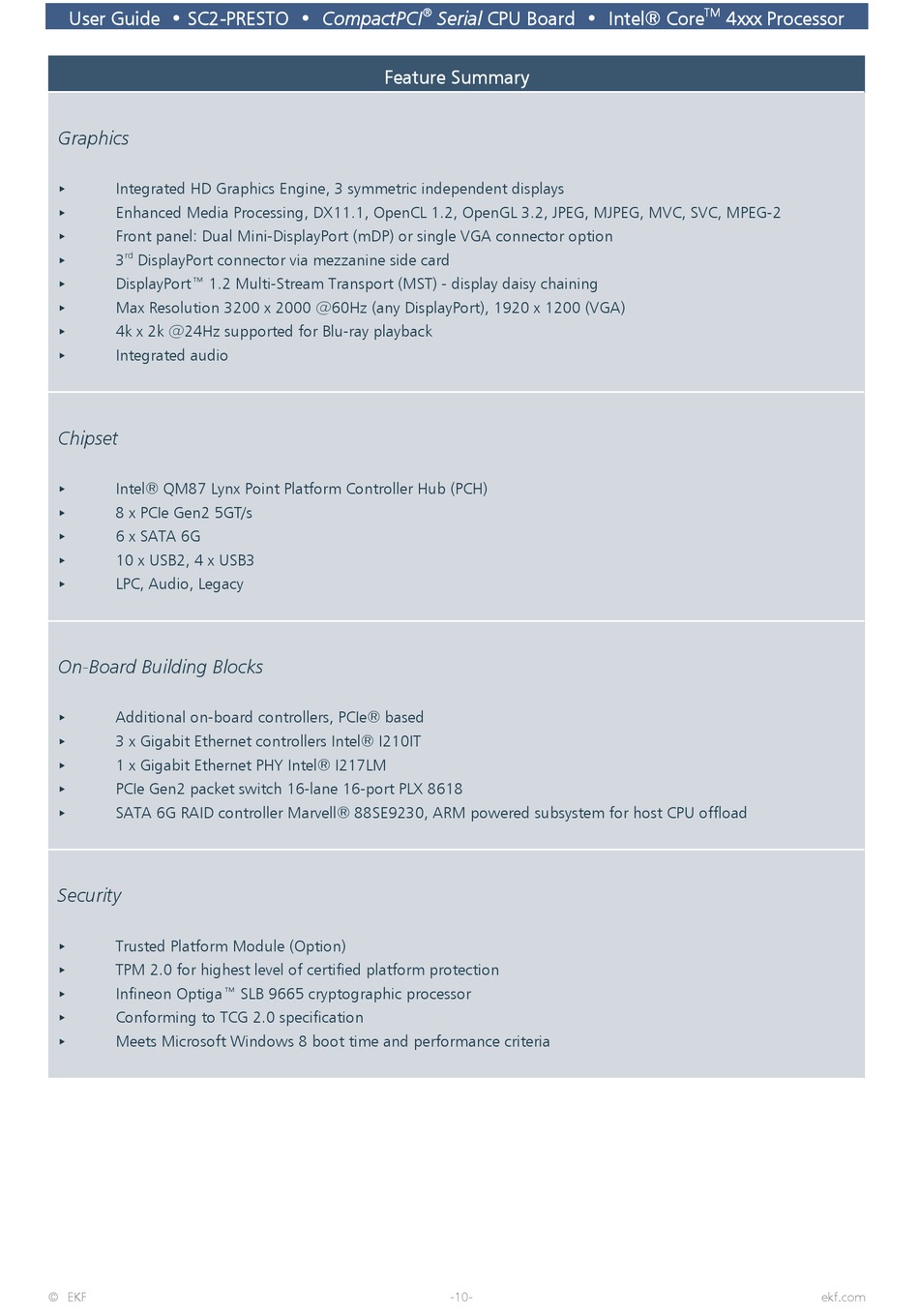

EKF SC2-PRESTO CompactPCI User Manual page 10

User Guide • SC2-PRESTO • CompactPCI
Graphics
Integrated HD Graphics Engine, 3 symmetric independent displays
<
Enhanced Media Processing, DX11.1, OpenCL 1.2, OpenGL 3.2, JPEG, MJPEG, MVC, SVC, MPEG-2
<
Front panel: Dual Mini-DisplayPort (mDP) or single VGA connector option
<
rd
< 3 DisplayPort connector via mezzanine side card
DisplayPort™ 1.2 Multi-Stream Transport (MST) - display daisy chaining
<
Max Resolution 3200 x 2000 @60Hz (any DisplayPort), 1920 x 1200 (VGA)
<
4k x 2k @24Hz supported for Blu-ray playback
<
< Integrated audio
Chipset
Intel® QM87 Lynx Point Platform Controller Hub (PCH)
<
8 x PCIe Gen2 5GT/s
<
6 x SATA 6G
<
< 10 x USB2, 4 x USB3
LPC, Audio, Legacy
<
On-Board Building Blocks
Additional on-board controllers, PCIe® based
<
3 x Gigabit Ethernet controllers Intel® I210IT
<
< 1 x Gigabit Ethernet PHY Intel® I217LM
PCIe Gen2 packet switch 16-lane 16-port PLX 8618
<
SATA 6G RAID controller Marvell® 88SE9230, ARM powered subsystem for host CPU offload
<
Security
< Trusted Platform Module (Option)
< TPM 2.0 for highest level of certified platform protection
Infineon Optiga™ SLB 9665 cryptographic processor
<
Conforming to TCG 2.0 specification
<
< Meets Microsoft Windows 8 boot time and performance criteria
© EKF
®
Serial CPU Board • Intel® Core
Feature Summary
-10-
TM
4xxx Processor
ekf.com
