Connectors

Caution
Some of the internal connectors provide operating voltage (3.3V, 5V and 12V) to devices inside the
system chassis, such as internal peripherals. Not all of these connectors are short circuit protected. Do
not use these internal connectors for powering devices external to the computer chassis. A fault in the
load presented by the external devices could cause damage to the board, the interconnecting cable
and the external devices themselves.

Front Panel Connectors

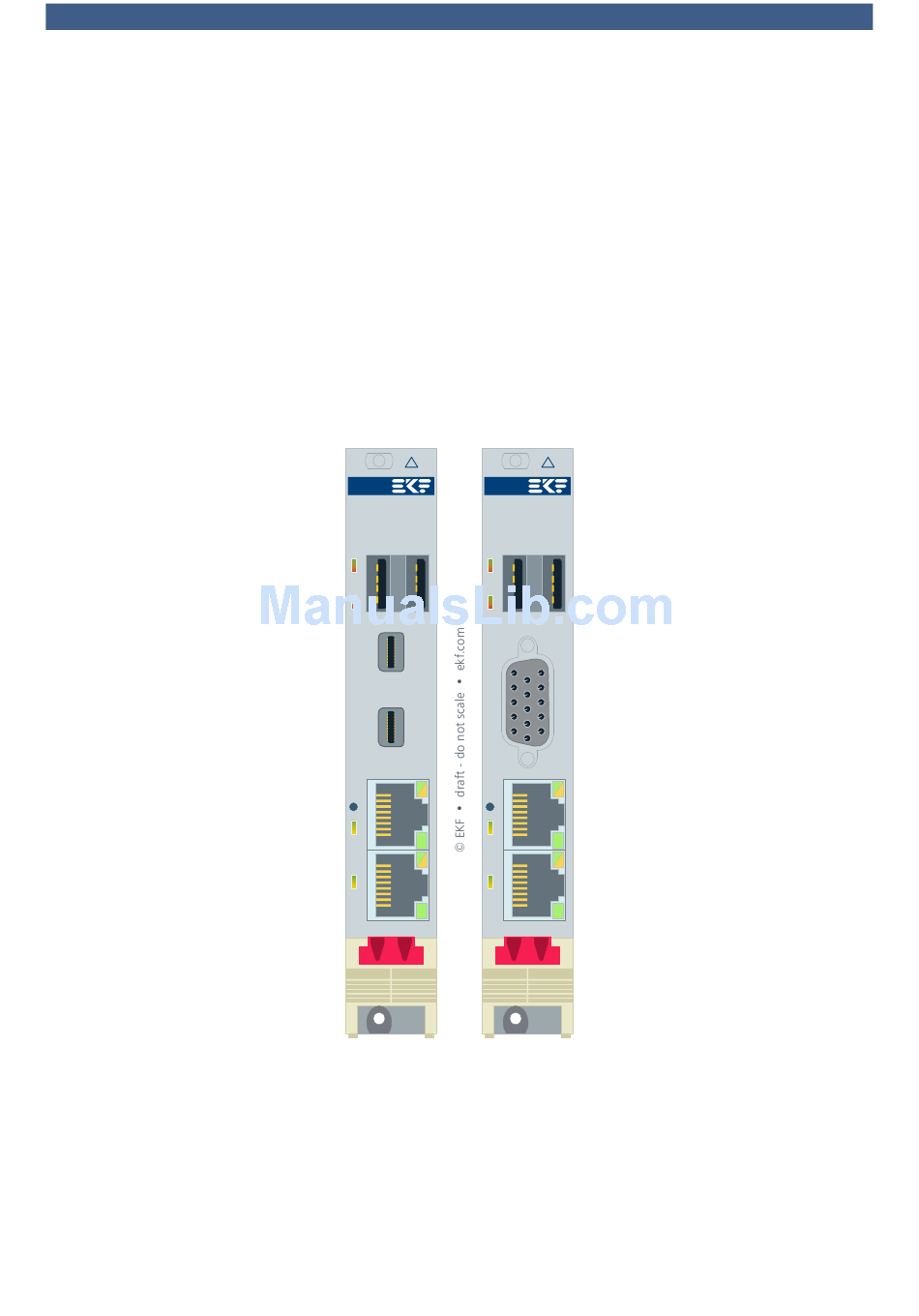

With respect to the video connector, the SC2-PRESTO is available in two flavours, either dual mDP or
VGA.
