Summary of Contents for EKF 82600
-

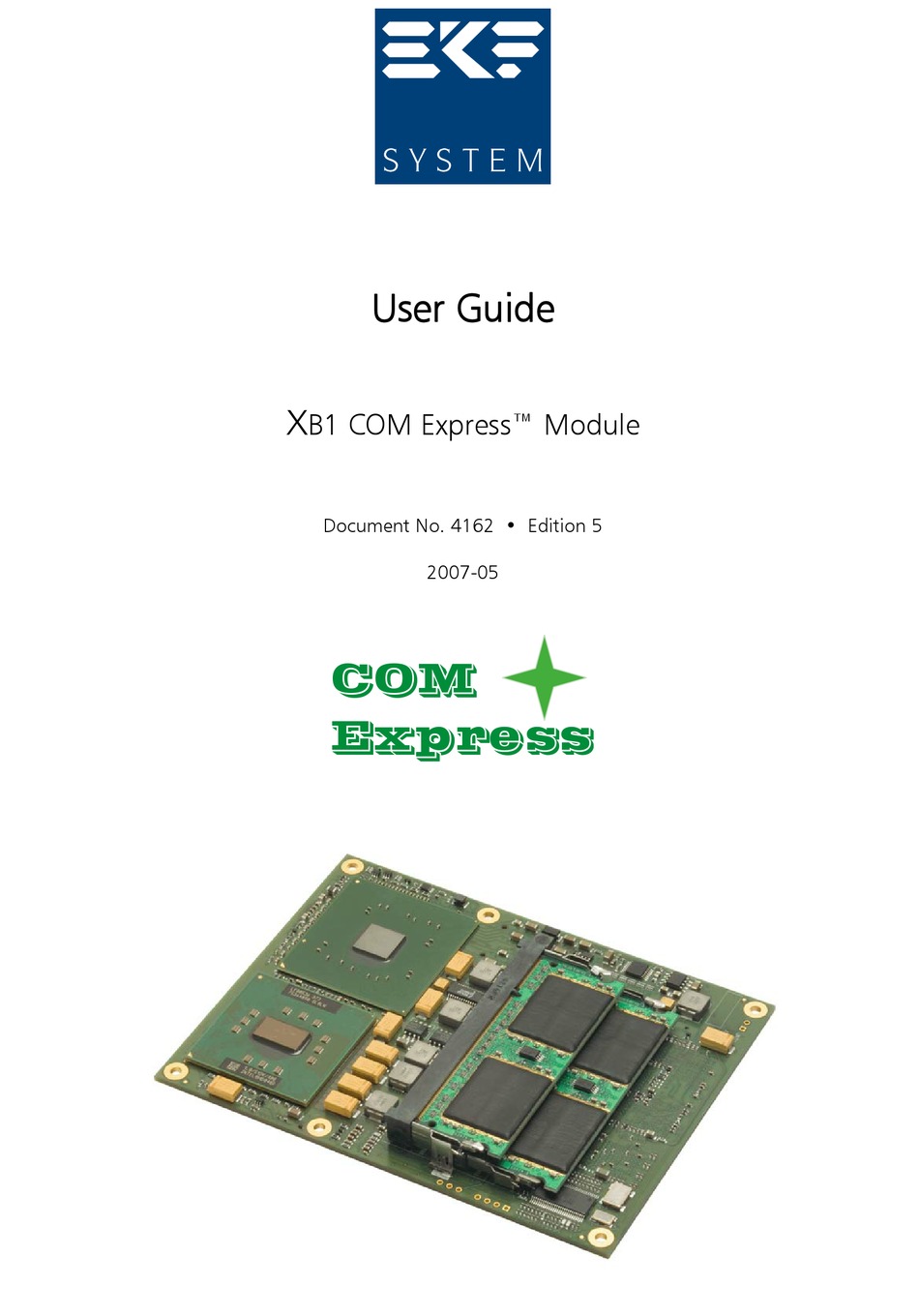

Page 1: User Guide
User Guide B1 COM Express™ Module Document No. 4162 • Edition 5 2007-05 Express... -
Page 2: Table Of Contents
About this Manual ............4 Edition History . - Page 3 Connectors ............31 PLD Programming Header ISPCON .
-
Page 4: About This Manual
About this Manual This manual describes the technical aspects of the XB1 COM Express Module, required for installation and system integration. It is intended for the experienced user only. Edition History Contents/Changes User Manual XB1 COM Express Module, English, initial edition (Text #4162, File: xb1_uge.wpd) Table J-COM modified (PCIe Lane #3) Illustration 'Assembly Drawing'... -
Page 5: Related Documents
Nomenclature Signal names used herein with an attached '#' designate active low lines. Trade Marks Some terms used herein are property of their respective owners, e.g. Intel, Pentium, Celeron, SpeedStep: ® Intel < PCI Express: ® PCI-SIG < <... -
Page 6: Xb1 Com Express Module Features
PICMG COM Express R1.0 (COM.0), Basic Module form factor (125x95mm Pin-out Type 2 Processor Designed for Intel® Pentium® M Micro FC-BGA 479 processors (90nm Dothan), maximum junction temperature 100°C B1-060: 600MHz ULV Celeron® M (Banias 130nm), 400MHz FSB, 512KB <... - Page 7 Drivers Intel graphics drivers < Intel networking drivers < Power +12V ±0.5V, tbd A max. @2.0GHz (tbd A WinXP idle mode) Requirements Environmental Operating temperature: 0°C ... +70°C (CPU dependent) < Conditions < Storage temperature: -40°C ... +85°C, max. gradient 5°C/min Humidity 5% ...
-
Page 8: Short Description Xb1 Com Express Module
CPU module. Alternatively equipped with the Intel series of (LV) Pentium® M and ULV Celeron® M processors and up to 2GB RAM, the EKF a versatile COM Express basic form factor... - Page 9 Benefits of the PICMG COM.0 Compliant Module Type 2 < Pentium® M 2GHz (FSB 533MHz) < < PCI Express Chipset for Embedded Applications 2 x 1GB DDR2 Memory (Dual Channel Mode Capable) < Dual-Screen Graphics Controller < Video I/F SDVO, PEG, LVDS, VGA, TV <...
-
Page 10: Block Diagram Xb1 Com Express Module
Block Diagram XB1 COM Express Module Simplified Block Diagram COM Express Module SDVO ©EKF User Guide XB1 COM Express Module Pentium® M 2.0GHz GMCH SDVO 82915 ICH6 82801 PCIe BIOS -10- Alternative CPU: • Pentium® M 745 1.8GHz • LV Pentium® M 738 1.4GHz •... -
Page 11: Assembly Drawing Xb1 Com Express Module
Assembly Drawing XB1 COM Express Module © EKF ekf.com © EKF • COM Express Module Connector ©EKF User Guide XB1 COM Express Module B1 COM Express Module • ekf.com J-COM A-B J-COM C-D P-SIO ISPCON -11- GMCH Bottom © EKF ekf.com P-ITP ekf.com... -
Page 12: Strapping Headers
Strapping Headers J-GP Jumper to reset BIOS CMOS RAM values J-RTC Jumper to reset RTC core of ICH6, not stuffed Connectors & Sockets ISPCON PLD programming connector, not stuffed J-COM A-B COM Express connector rows A and B (VGA, LVDS, TV, PCIe, SATA, Ethernet, USB, AC'97, SMB, LPC) J-COM C-D COM Express connector rows C and D (Dual SDVO / PEG, IDE, PCI) -
Page 13: Microprocessor
Pentium M 760 0.8/2.0 This processor does not support SpeedStep® technology, instead it runs at a fixed core speed Following the Intel Embedded Roadmap, this processor is recommended for long time availability ©EKF User Guide XB1 COM Express Module 90nm (Dothan) Processors Supported... -
Page 14: Thermal Considerations
Windows or Linux tasks. The heat dissipation may increase considerably when e.g. rendering software such as the Acrobat Distiller is executed. The Pentium M processors support Intel's Enhanced SpeedStep® technology. This enables dynamic switching between multiple core voltages and frequencies depending on core temperature and currently required performance. -
Page 15: Main Memory
The NIC (Networking Interface Controller) is connected by a single PCI Express lane to the chipset southbridge (ICH6). Its MAC address (unique hardware number) is stored in a dedicated EEPROM. The Intel Ethernet software and drivers for the 82573 is available from Intel's World Wide Web site for download (link provided on the EKF website). -
Page 16: Serial Ata Interface (Sata)
PIO Mode 3/4, Ultra ATA/33, Ultra ATA/66, Ultra ATA/100 The PATA port is available to the carrier board across the J-COM C-D connector. The IDE controller is integrated into the ICH6. Ultra ATA IDE drivers can be downloaded from the Intel website. ©EKF... -
Page 17: Graphics Subsystem
The graphics subsystem is part of the versatile Intel i915GM Graphics/Memory Controller Hub (GMCH), and is also known as Intel Graphics Media Accelerator (GMA) 900. As an alternative, PCI Express based graphics is supported (requires discrete PEG controller present on the carrier board). -
Page 18: Real-Time Clock
User Guide XB1 COM Express Module Real-Time Clock The XB1 COM Express Module has a time-of-day clock and 100-year calendar, integrated into the ICH6. A battery on the board keeps the clock current when the computer is turned off. The XB1 uses a Vanadium-Pentoxide-Lithium rechargeable battery, giving an autonomy of more than 50 days when fully loaded after 24 hours. -
Page 19: Watchdog/Reset
ICH6 this LED changes its function and is then controlled only by the level of the GPO20 pin. Setting this pin to 1 will switch on the LED. The PG LED remains in the programmable state until the next system reset. -
Page 20: Installing And Replacing Components
Failure links before you open the system or perform or equipment damage. Some parts of the the power switch is in its off state. Caution Electrostatic discharge (ESD) can damage components. Perform the procedures described in this chapter only at an ESD workstation. -
Page 21: Installing The Board
Typically you will perform the following steps: Switch off the system, remove the AC power cord Attach your antistatic wrist strap to a metallic part of the system Remove the board packaging, be sure to touch the board only at the heat spreader... -
Page 22: Removing The Board
Typically you will perform the following steps: Switch off the system, remove the AC power cord Attach your antistatic wrist strap to a metallic part of the system Identify the board, be sure to touch the board only at the front panel... -
Page 23: Emc Recommendations
EMC Recommendations In order to comply with the CE regulations for EMC, it is mandatory to observe the following rules: The chassis or rack including other boards in use must comply entirely with CE Close all board slots not in use with a blind front panel Front panels must be fastened by built-in screws Cover any unused front panel mounted connector with a shielding cap External communications cable assemblies must be shielded (shield connected only at one end... -
Page 24: Installing Or Replacing The Memory Modules
User Guide XB1 COM Express Module Installing or Replacing the Memory Modules Note: If you decide to replace the memory, observe the precautions in 'Before You Begin' By default, the XB1 COM Express Module comes fully equipped and tested with two DDR2 SDRAM memory modules. -
Page 25: Technical Reference
0x108C -25- Description Host Bridge Internal Graphics Device Int. Graphics Config. Regs. Intel High Definition Audio PCI Express Port 1 PCI Express Port 2 PCI Express Port 3 PCI Express Port 4 USB UHCI Controller #1 USB UHCI Controller #2... -
Page 26: Local Smb Devices
Local SMB Devices The XB1 COM Express Module contains a few devices that are attached to the System Management Bus (SMBus). These are the clock generation chip, the SPD EEPROMs on the SO-DIMM memory modules, a general purpose serial EEPROM and a supply voltage and CPU temperature controlling device in particular. -
Page 27: Gpio Usage
GPIO Usage GPIO Usage ICH6 XB1 COM Express Module GPIO Usage ICH6 GPIO Type Tol. GPI 0 GPI 1 GPI 2 GPI 3 GPI 4 GPI 5 GPI 6 3.3V GPI 7 3.3V GPI 8 3.3V GPI 9 3.3V GPI 10 3.3V GPI 11 3.3V... -
Page 28: Gpio Usage Fwh
XB1 COM Express Module GPIO Usage ICH6 GPIO Type Tol. GPI 30 3.3V GPI 31 3.3V GPIO 32 3.3V GPIO 33 3.3V GPIO 34 3.3V GPI 40 GPI 41 3.3V GPO 48 3.3V GPO 49 1.05V GPIO Usage FWH XB1 COM Express Module GPIO Usage FWH GPIO Type Tol. -
Page 29: Gpio Usage Sio
GPIO Usage SIO XB1 COM Express Module GPIO Usage SIO GPIO Type Tol. GPIO 10 5V/16mA GPIO 11 5V/16mA GPIO 12 GPIO 13 5V/8mA GPIO 14 5V/8mA GPIO 15 5V/8mA GPIO 16 5V/24mA GPIO 17 5V/24mA GPIO 20 GPIO 21 GPIO 22 GPIO 23 GPIO 24... -
Page 30: Configuration Jumpers
Express Module must be removed from the carrier board. It is important to accomplish the RTC reset while the module has no power applied to it. Short-circuit the JRTC pads for about 1s. After that, reinstall the module to the carrier and switch on the power. Jumper OFF ©EKF... -
Page 31: Connectors
Connectors Caution Some of the internal connectors provide operating voltage (3.3V and 5V) to devices inside the system chassis, such as internal peripherals. Not all of these connectors are overcurrent protected. Do not use these internal connectors for powering devices external to the computer chassis. A fault in the load presented by the external devices could cause damage to the board, the interconnecting cable and the external devices themselves. -
Page 32: J-Com
J-COM J-COM is the pair of connectors which serves as interface between the XB1 COM Express Module and the carrier board. The assembly is composed of two double-row, high speed, 0.5mm pitch plugs. Each row has 110 leads, i.e. J-COM provides 440 contact positions in total. The COM.0 specification assigns each row a letter A, B and C, D. - Page 33 AC_BITCLK AC_SDOUT BIOS_DISABLE# THRMTRIP# USB_6N USB_6P USB_OC67# USB_4N USB_4P USB_2N USB_2P USB_OC23# USB_0N USB_0P +VCCRTC EXCD0_RST# EXCD0_CPPE# SERIRQ (LPC_SERIRQ) PCIE_TX5+ PCIE_TX5- GPI0 PCIE_TX4+ PCIE_TX4- PCIE_TX3+ 1) PCIE_TX3- 1) ©EKF User Guide XB1 COM Express Module SPKR I2C_CK I2C_DAT THRM# USB_7N USB_7P USB_OC45# USB_5N...
- Page 34 PCIE_TX2+ PCIE_TX2- GPI1 PCIE_TX1+ PCIE_TX1- PE_WAKE# GPI2 PCIE_TX0+ PCIE_TX0- LVDS_A0+ LVDS_A0- LVDS_A1+ LVDS_A1- LVDS_A2+ LVDS_A2- LVDS_VDD_EN LVDS_A3+ LVDS_A3- LVDS_A_CK+ LVDS_A_CK- LVDS_I2C_CK LVDS_I2C_DAT GPI3 ICH_RCIN# (KBD_RST#) ICH_A20GATE (KBD_A20GATE) CLK_PE_COMP CLK_PE_COMN ©EKF User Guide XB1 COM Express Module PCIE_RX2+ PCIE_RX2- GPO3 PCIE_RX1+ PCIE_RX1- (WAKE0#) WAKE1#...
- Page 35 RSVD RSVD GPO0 RSVD RSVD VGA_DDCCL (VGA_I2C_CK) VGA_DDCDAT (VGA_I2C_DAT) +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V +12V marked light gray italic - signal not available marked light green italic - pin position reserved by specification 1) stuffing option: GB Ethernet provided by factory default, PCIe lane #3 via J-COM on request ©...
-
Page 36: Processor Debug Header Pitp
Processor Debug Header PITP This FFC style connector (Molex 52435-2872) can be used to attach an emulator probe to the board. This is a valuable tool when debugging hardware or tracing software. The connector PITP is situated at the bottom side of the board. ©EKF User Guide XB1 COM Express Module PITP... -
Page 37: P-Sio
P-SIO The connector P-SIO is normally not stuffed. The mature PS/2 and UART ports have been overcome by USB in most applications. For low level debugging however, these interfaces can be very useful (e.g. the BIOS can communicate across the serial I/O). Please contact EKF before ordering the XB1 COM Express Module, if the P_SIO connector is required by the user. -
Page 38: Board Dimensions
Board Dimensions Top View ( COM Express 4.00 16.50 ©EKF User Guide XB1 COM Express Module connectors seen through board) Basic Module © EKF ekf.com 74.20 80.00 -38- 121.00 125.00 ekf.com... -
Page 39: Top View, Bottom View
User Guide XB1 COM Express Module Top View, Bottom View XB1 Top View XB1 Bottom View ©EKF -39- ekf.com... -
Page 40: Literature
Literature Theme Document Title ® COM Express PICMG COM.0 COM Express™ Module Base Specification Revision 1.0 2005-07 Ethernet IEEE Std 802.3, 2000 Edition PCI Express PCI Express Base Specification 1.1 Serial ATA Serial ATA Revision 2.5 Universal Serial Bus Specification EKF Elektronik GmbH Philipp-Reis-Str.
