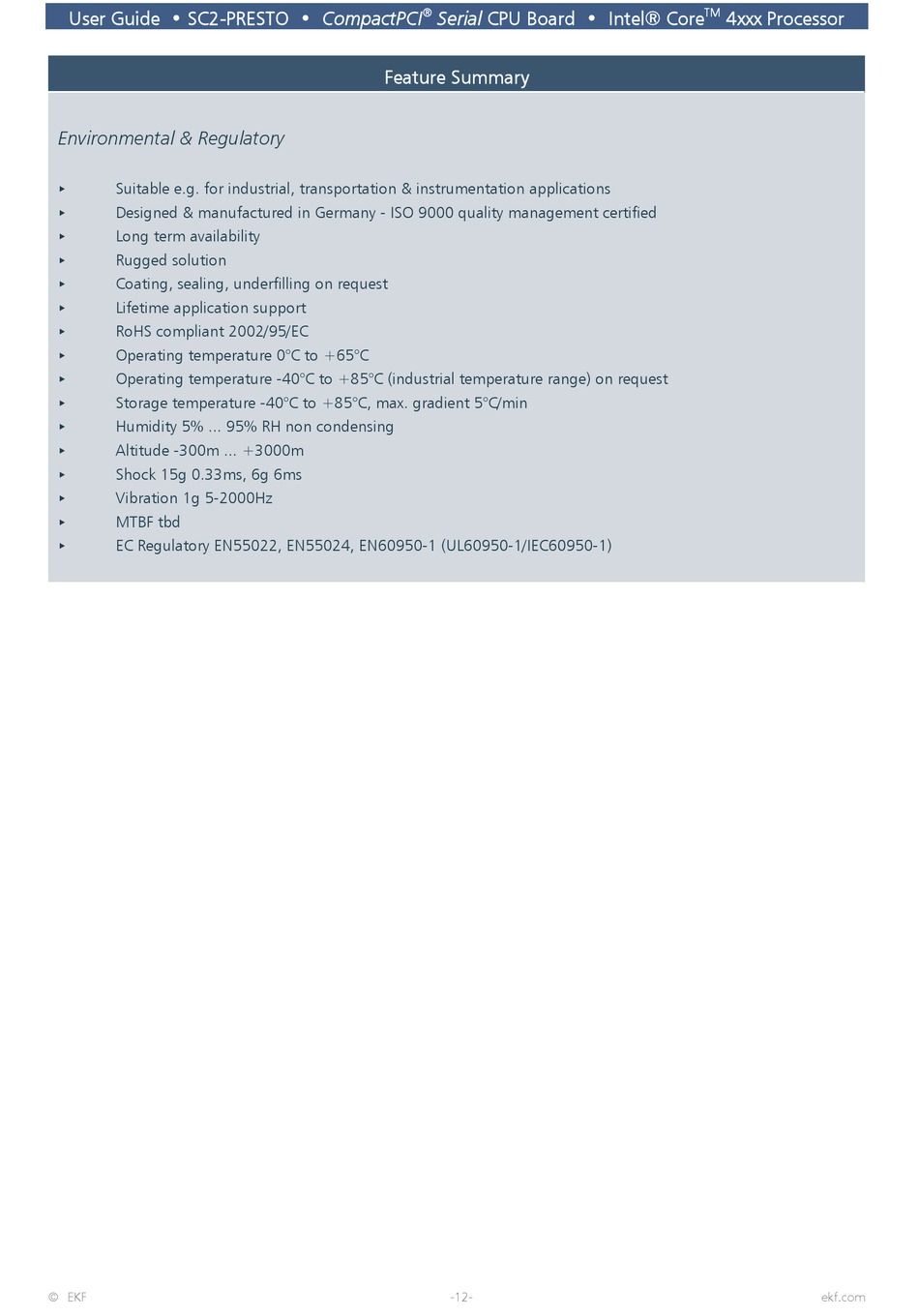

EKF SC2-PRESTO CompactPCI User Manual page 12

User Guide • SC2-PRESTO • CompactPCI
Environmental & Regulatory
Suitable e.g. for industrial, transportation & instrumentation applications
<
Designed & manufactured in Germany - ISO 9000 quality management certified
<
Long term availability
<
< Rugged solution
Coating, sealing, underfilling on request
<
Lifetime application support
<
RoHS compliant 2002/95/EC
<
< Operating temperature 0°C to +65°C
Operating temperature -40°C to +85°C (industrial temperature range) on request
<
Storage temperature -40°C to +85°C, max. gradient 5°C/min
<
Humidity 5% ... 95% RH non condensing
<
< Altitude -300m ... +3000m
Shock 15g 0.33ms, 6g 6ms
<
Vibration 1g 5-2000Hz
<
< MTBF tbd
< EC Regulatory EN55022, EN55024, EN60950-1 (UL60950-1/IEC60950-1)
© EKF
®
Serial CPU Board • Intel® Core
Feature Summary
-12-
TM
4xxx Processor
ekf.com
